Introduction
Selecting the correct JST connector equivalent for a printed circuit board (PCB) design requires matching pitch, housing configuration, and mounting style to the target application. As of September 2026, KONNRA’s connector series remain cross-referenced against original JST part families, giving engineers a validated domestic alternative for JST-pitch connectors used in automotive, industrial, consumer electronics, networking, and medical device PCB layouts.
This article organizes KONNRA’s JST-equivalent connector series by pitch, so designers can quickly identify the correct family for a given board-to-wire or wire-to-wire interface.
What Is JST Series Cross-Referencing and Why Does Pitch Matter?
Pitch refers to the center-to-center spacing between adjacent contacts on a connector housing, measured in millimeters. Pitch determines current-carrying capacity, board footprint, and mechanical compatibility with mating connectors. Cross-referencing means a manufacturer’s connector family shares dimensional and functional compatibility with an original manufacturer’s part number — in this case, JST. KONNRA’s connector series are cross-referenced to JST (as well as HIROSE, Molex, and YEONHO) original part families, enabling direct domestic replacement without redesigning the PCB footprint.
Technical Specifications: KONNRA JST-Compatible Series by Pitch
0.8mm Pitch — KR0800 (JST SUR Series Equivalent)
- Product Family: 0.8mm insulation displacement connector (IDC)
- Housing Range: 2P to 22P
- Configurations: Housing, terminal, SMT 90°, and SMT 180° wafer
- Industry Adaptation: Networking and information equipment
1.0mm Pitch — KR1000 (JST SH Series Equivalent)
- Product Family: SH1.0 wire-to-board connector
- Housing Range: 2P to 20P
- Configurations: Single-row and dual-row housings; terminal options; SMT 90° and SMT 180° wafer
- Industry Adaptation: Power tools, networking/information equipment, medical devices
1.2mm Pitch — KR1201 (JST ACH Series Equivalent)
- Product Family: ACH1.2 connector
- Housing Range: 2P to 7P
- Configurations: SMT 90° wafer
- Industry Adaptation: Networking/information equipment, medical devices
1.25mm Pitch — KR1259 (JST GH Series Equivalent)
- Product Family: GH1.25 wire-to-board connector
- Housing Range: 2P to 15P
- Configurations: Terminal options; SMT 90° and SMT 180° wafer
- Industry Adaptation: Power tools, industrial equipment, networking/information equipment
1.5mm Pitch Group — KR1501, KR1502, KR1504

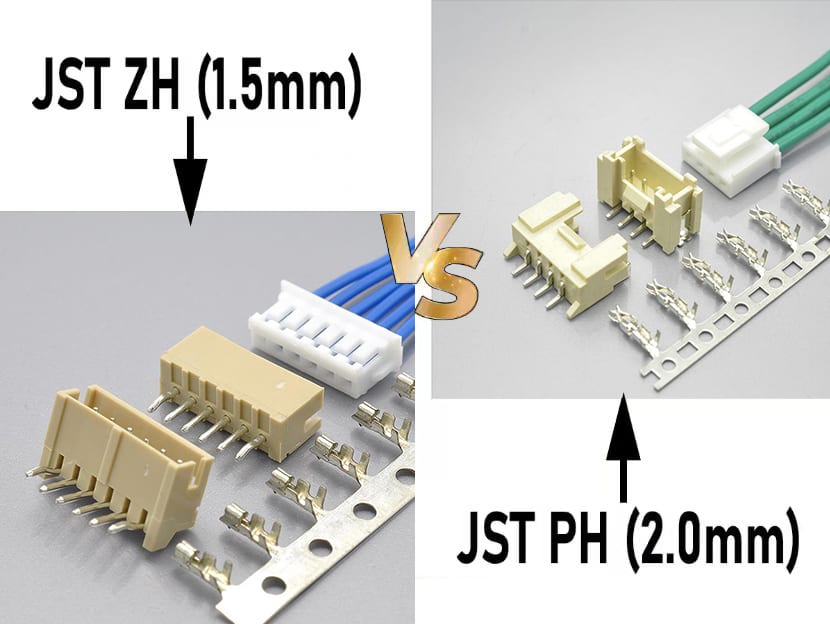

| Model | JST Equivalent | Housing Range | Configurations | Industry Adaptation | |—|—|—|—|—| | KR1501 | ZH series | 2P–16P | DIP 90°/180°, SMT 90°/180°, terminal options | Consumer electronics | | KR1502 | SZN series | 2P–16P | Terminal options | General | | KR1504 | ZM series | 2P, 3P, 9P, 12P | Terminal options | General |
2.0mm Pitch Group — KR2001, KR2003, KR2005, KR2014
| Model | JST Equivalent | Housing Range | Configurations | Industry Adaptation | |—|—|—|—|—| | KR2001 | PH series | 2P–16P | DIP 90°/180°, SMT 90°/180°, terminal options | Consumer electronics, medical devices | | KR2003 | SAN series | 2P–16P | 90°/180° housing, terminal options | General | | KR2005 | PHD series | 2×2P–2×22P (dual-row) | DIP 90°/180°, terminal options | New energy storage | | KR2014 | PA series | 2P–15P | DIP 90°/180°, SMT 90°/180°, terminal options | General |
2.5mm Pitch Group — KR2501, KR2504, KR2507, KR2508, KR2516
| Model | JST Equivalent | Housing Range | Configurations | Industry Adaptation | |—|—|—|—|—| | KR2501 | XH series | 2P–16P | DIP 90°/180°, SMT 90°, terminal options | Consumer electronics | | KR2504 | EH series | 2P–15P | DIP 90°/180°, terminal options | General | | KR2507 | SM series | 2P–16P | Male/female housings and terminals | General | | KR2508 | SCN series | 2P–16P | 180° housing, terminal options | General | | KR2516 | XA series | 2P–15P | DIP 90°/180°, terminal options | Industrial |
2.54mm Pitch — KR2544 (JST SYP Series Equivalent)
- Product Family: SYP2.54 connector
- Configurations: Male and female housings; male and female terminals
- Industry Adaptation: General
3.96mm Pitch Group — KR3961, KR3963
| Model | JST Equivalent | Housing Range | Configurations | |—|—|—|—| | KR3961 | VH series | 2P–11P | DIP 90°/180°, terminal options | | KR3963 | SDN series | 2P–12P | Terminal options |
4.0mm Pitch — KR4000 (JST BH Series Equivalent)
- Product Family: BH4.0 connector
- Housing Range: 2P male housing
- Configurations: Terminal options; SMT 90° wafer
Detailed Product Features
Manufacturing Precision: All KONNRA connector series are produced through a vertically integrated process covering precision mold design and manufacturing, automation design, precision injection molding, stamping, assembly, and CCD visual inspection, with automation coverage of 95% or more across production lines.
For example, FEA analysis of a 63A connection with 16mm² copper wire shows a maximum temperature rise of 27.3 K.
Inspection Coverage: Full-line intelligent visual CCD inspection covers 95% of production processes, using imported Mitsubishi and Panasonic PLC control systems paired with FA25-35mm optical lenses and 5-megapixel cameras. Automotive connector series receive 100% CCD visual inspection.
Application Scenarios for JST-Pitch Connector Series
- Consumer Electronics: KR1501 (ZH), KR2001 (PH), and KR2501 (XH) series support smart terminals, wearable devices, and compact consumer devices requiring slim, high-density wire-to-board connections.
- Medical Devices: KR1000 (SH), KR1201 (ACH), and KR2001 (PH) series serve monitors, ventilators, and diagnostic equipment requiring safety, stability, and anti-interference performance, backed by ISO13485 medical system certification.
- Networking & Information Equipment: KR0800 (SUR), KR1000 (SH), and KR1201 (ACH) series support server racks, routers, and data transmission hardware requiring reliable signal integrity.
- Power Tools: KR1000 (SH) and KR1259 (GH) series address high current-carrying and impact-resistant requirements for smart lawn mowers, pool cleaning robots, and floor scrubbers.
- Industrial Equipment: KR1259 (GH) and KR2516 (XA) series serve Industry 4.0 automation, robotics, and heavy machinery applications requiring vibration resistance.
- New Energy Storage: KR2005 (PHD) series is applied in energy storage cabinets, outdoor power supplies, and charging equipment operating in high-temperature, low-temperature, and high-humidity environments.
Why Choose KONNRA as Your JST-Compatible Connector Supplier?
This footprint enables nationwide prestocking of key materials to shorten delivery cycles, with complete connector sample sets deliverable within 45 days.
Recognition includes National High-Tech Enterprise status, the National Specialized New Certificate, and designation as a Specialized & Sophisticated Enterprise with New Technologies. The company has stated a five-year plan target to become a TOP3 enterprise in the domestic automotive lamp connector sector for imported-part replacement.
Conclusion: Sourcing JST-Equivalent Connectors from KONNRA
Engineers evaluating JST-pitch connectors for new PCB designs can reference KONNRA’s cross-referenced series — spanning 0.8mm through 4.0mm pitches — as a domestically manufactured alternative backed by IATF16949, ISO9001, ISO13485, and UL certification, plus 100% CCD inspection on automotive-grade products. For technical datasheets, sample requests, or joint R&D customization inquiries, contact KONNRA directly:
