KR1201 Series ACH Electrical Connectors
KR1201 — Pitch 1.20mm · Circuits 2-7pin · Current 1.5A · Voltage 50V
Product photos
- Series: KR1201
- Pitch: 1.20mm
- Wire-to-Board Connector
- Equivalent to JST
- Pitch
- 1.20mm
- Circuits
- 2-7pin
- Current
- 1.5A
- Voltage
- 50V

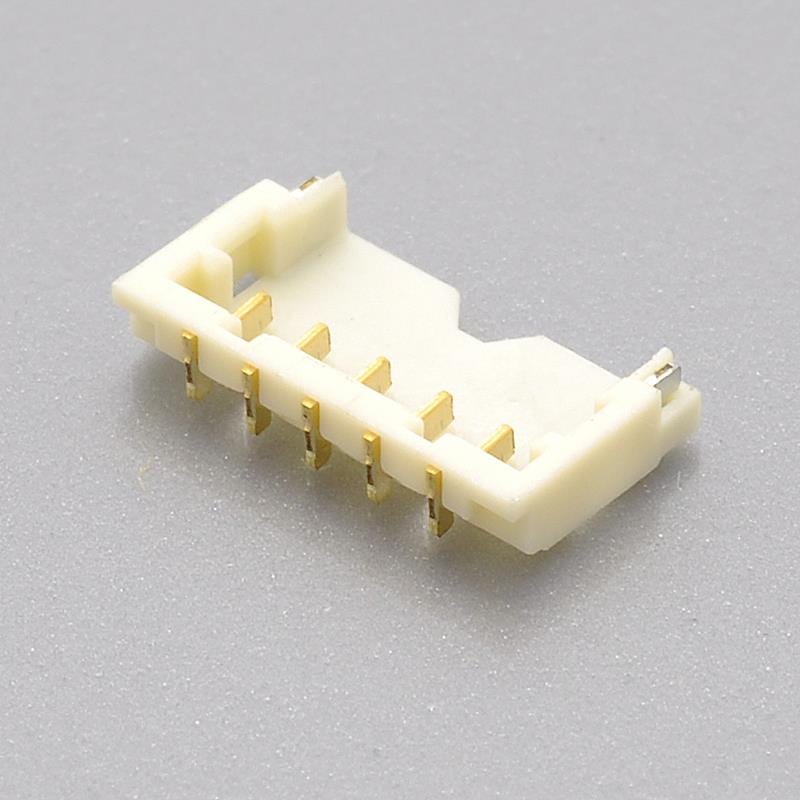

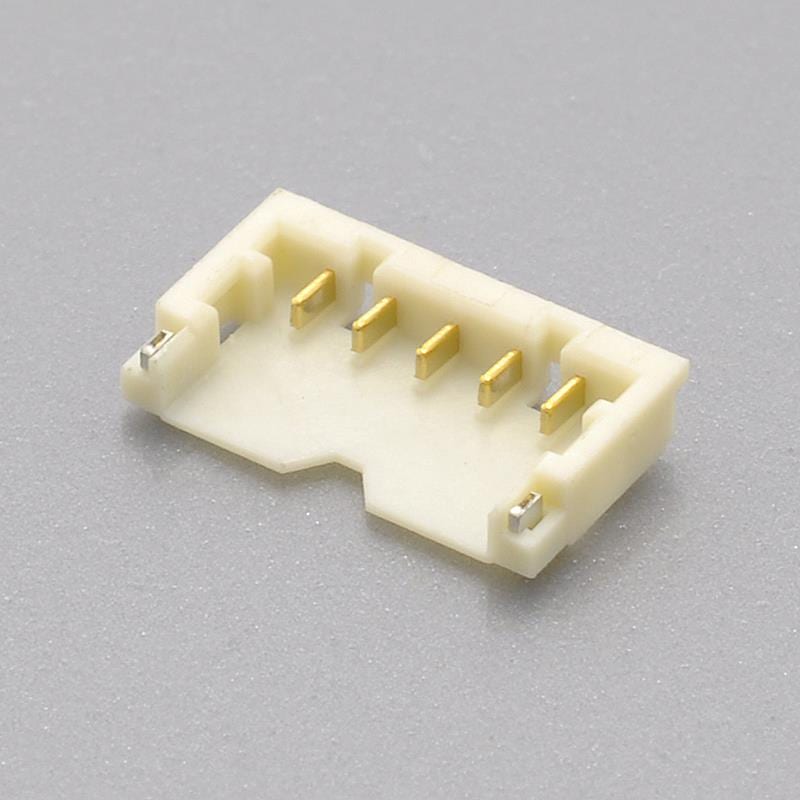

ACH connector, SMT Wafer, this connector is compact and low profile type, height: 1.4mm and width 4.3mm, 1.2mm pitch wire-to-board connector.
Specifications
| Pitch | 1.20mm |
|---|---|
| Circuits | 2-7pin |
| Current | 1.5A |
| Voltage | 50V |
| Material | PA66/ |
|---|---|
| Insulation O.D | 0.75mm |
| Withstanding Voltage | 500V AC/ |
| Temperature Range | -40℃～+105℃ |
| Contact Resistance | 20m Q/ |
| Insulation Resistance | 100MQ/ |
| Product Plating | Gold Flash over Nickel |
Description
In the electrical connector industry, the KR1201 series of connectors has become a leader in the industry due to its excellent performance. This series of connectors is not only outstanding, but also has a wide range of applications, with many significant advantages, so it is favored by various industries.KR1201 series connectors have a rated current of 1.5A and a rated voltage of 50V, which can meet the needs of various application scenarios. The operating temperature range of -40°C to +105°C ensures stable operation under different environmental conditions.
In addition, the KR1201 series connectors boast a contact resistance as low as 20mΩ and an insulation resistance of up to 100mΩ, parameters that ensure the stability and reliability of the electrical connection. Even more commendably, this series of connectors can withstand peak voltages of up to 500VAC/minute, further proving its outstanding electrical performance. Therefore, KR1201 series connectors are undoubtedly the ideal choice for a wide range of connection needs.
The KR1201 series connectors have excellent high current handling capability, which enables a steady flow of power in applications requiring high current ratings, ensuring an uninterrupted power supply.
These connectors are equipped with a robust locking mechanism that ensures a secure and safe connection, greatly reducing the risk of connection interruptions in critical systems.
The KR1201 series connectors stand out for their versatility in terms of configuration and design. No matter what the connection needs are, there is a model to match them, meeting the requirements of all complex scenarios.
These connectors are carefully designed and rigorously manufactured to provide excellent durability and stable operation over long periods of time, significantly reducing the need for frequent replacement and saving users both cost and time.
In summary, the KR1201 series connectors offer high current capacity, secure locking mechanisms, versatility and durability, providing a reliable solution to connectivity needs. Whether in industrial machinery, renewable energy systems or transportation, these connectors are the first choice for efficient and robust power transmission. The robust performance of these connectors ensures that your critical connections remain strong and reliable.
Features
- High Current Handling
- Secure Connection
- Versatility
- Long service life
