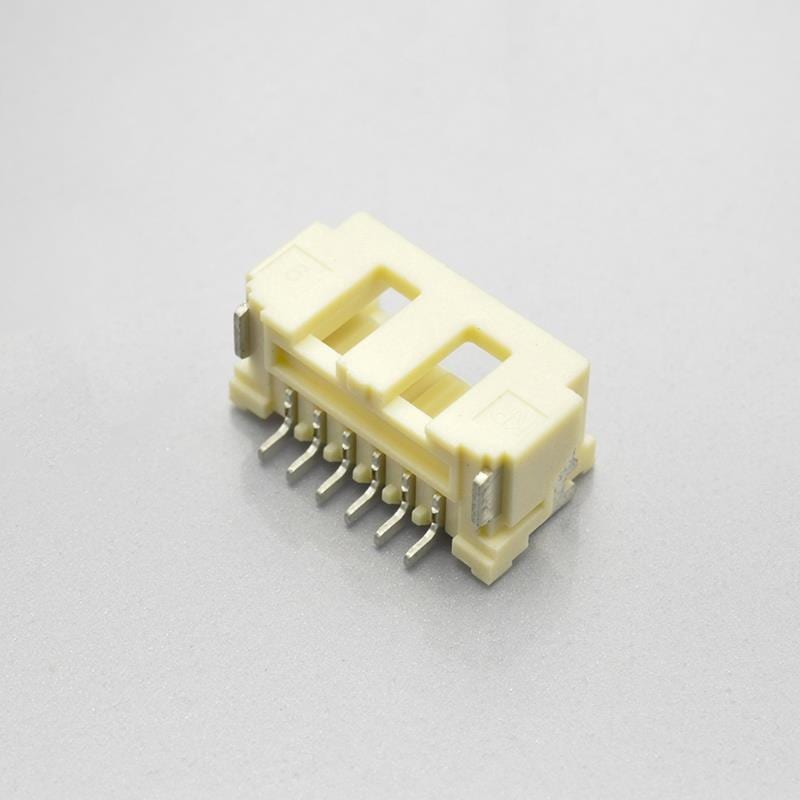

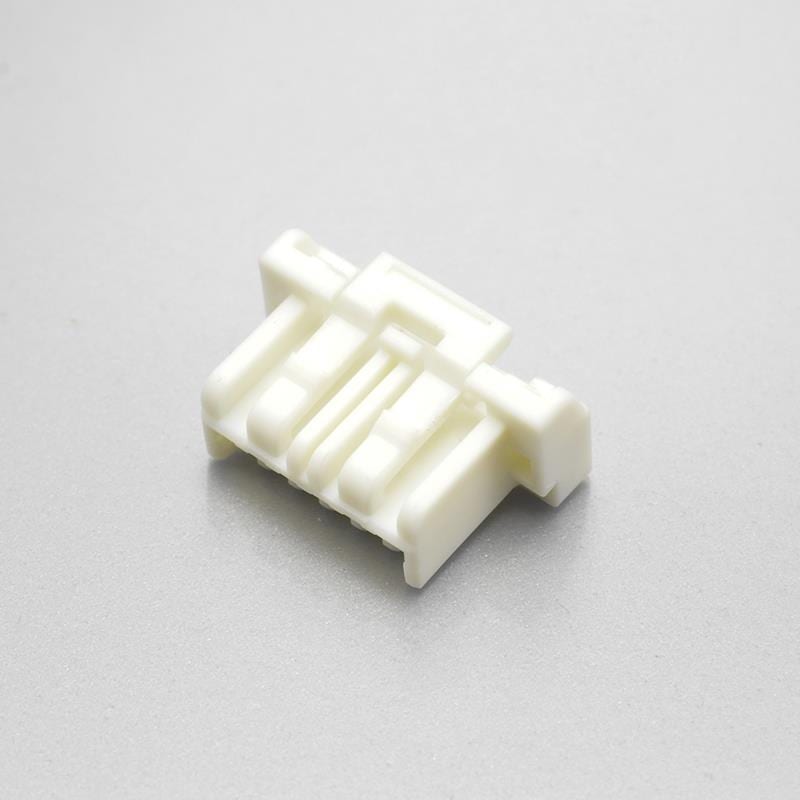

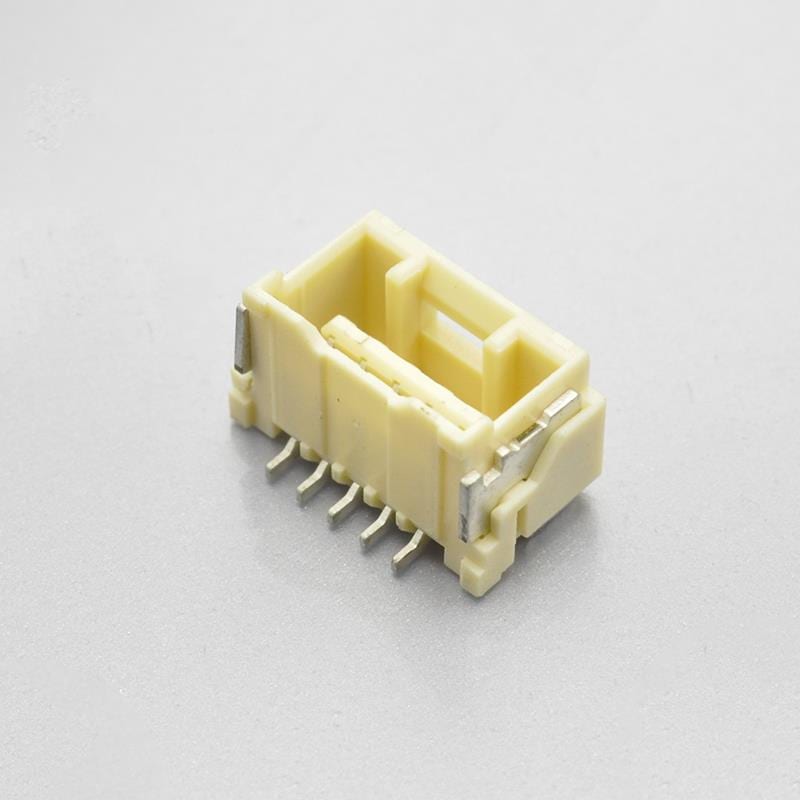

KR1507 Series Clik Mate Single Row Electrical End Connectors

Description

The KR1507 series connectors have demonstrated their superior performance in responding to the demands of high-density applications, especially for devices that need to be powerful and carry more signal lines in a limited space. The series introduces a pressure internal locking system, which not only ensures solid mating retention, but also provides intuitive feedback of mating confirmation through a distinctive “click” sound. In addition, the tuning fork terminal design optimizes insertion force and ensures reliable mating contact. The KR1507 series also features enhanced metal solder pads, which increase PCB retention and significantly reduce stress on the solder joints, and is available in a wide range of 1.50mm pitch versions, including single-row and dual-row types, as well as SMT access options, providing users with even more flexibility and choice.

The connectors utilize a pressure internal locking system that provides a firm mating retention and a clear “click” to confirm mating is complete.

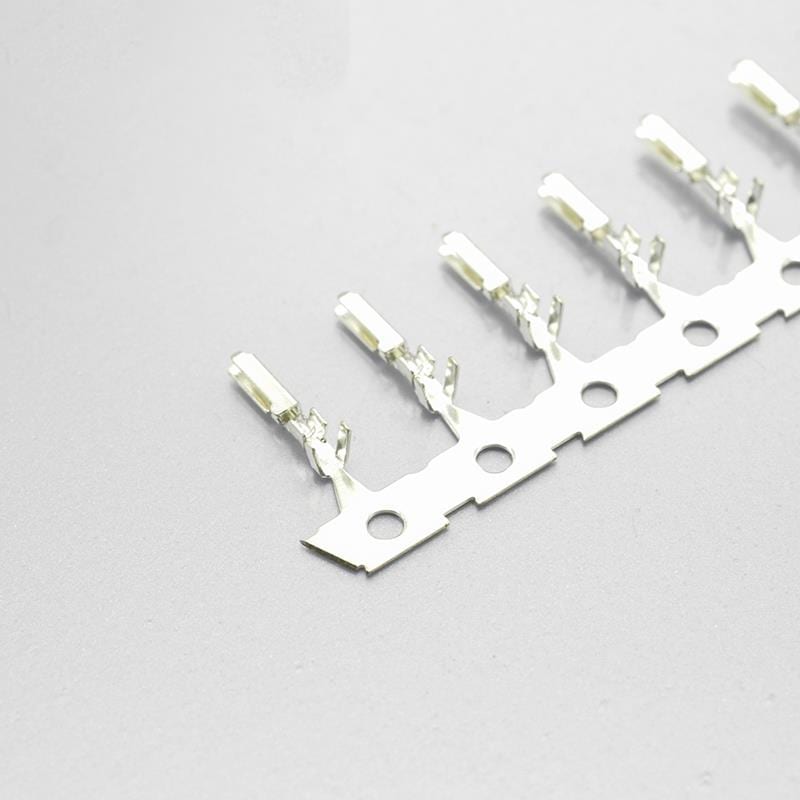

This design provides low insertion force and firm mating contact, ensuring a stable and reliable connection.

These lugs ensure strong PCB retention and eliminate stress on the solder joints, improving connector durability and performance.
