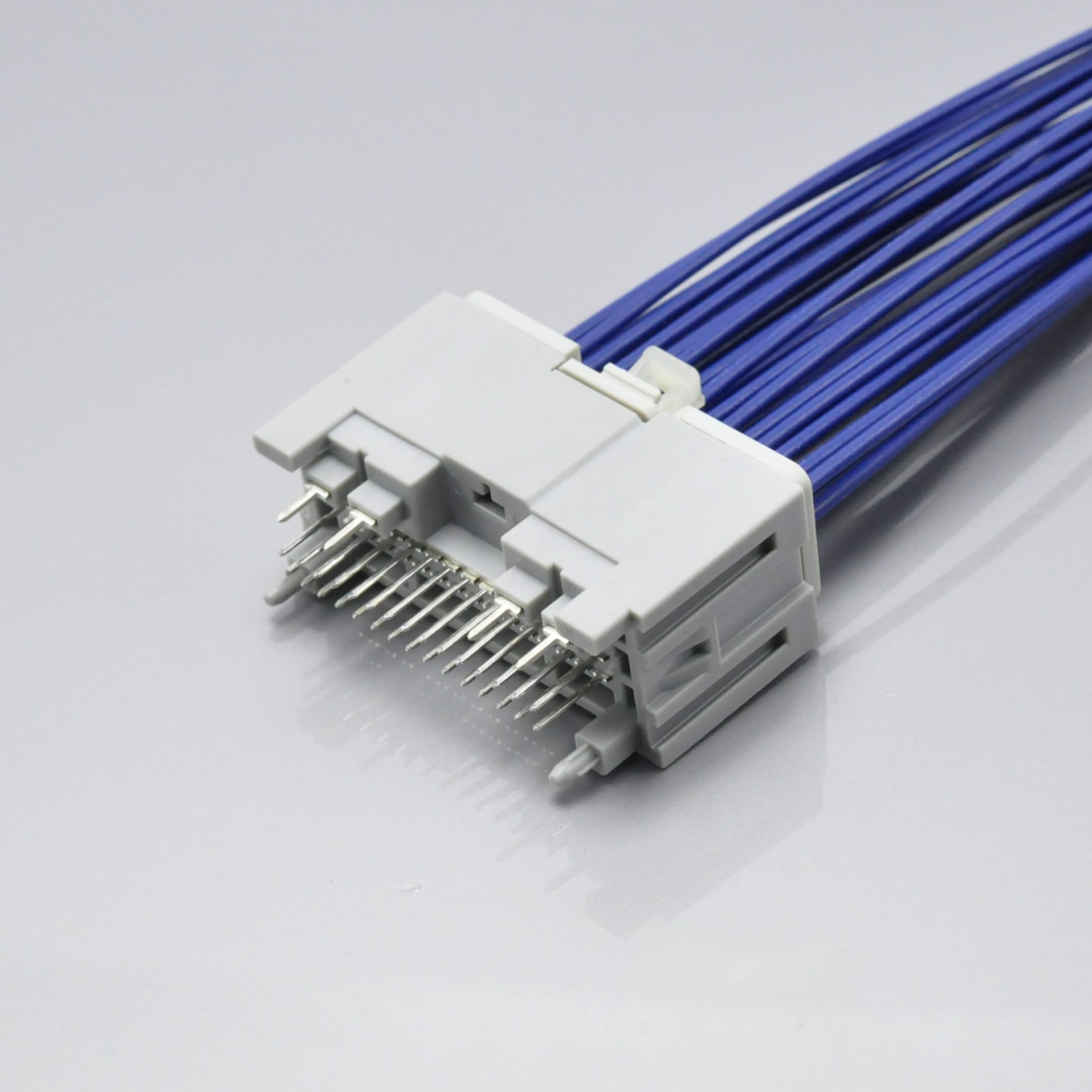

KR2021 Equivalent To Molex MINI50 alternatives connector

Description

In light of space constraints and increasing integration of electronic components in automotive interiors, automotive manufacturers have shifted their expectations of suppliers to provide more compact interconnects to accommodate the significant expansion of infotainment systems and safety features. sealed and unsealed wire-to-board receptacles in the KR2021 connector family offer device manufacturers the possibility of reducing pin, terminal and wire sizes, making it possible to efficiently package circuits in limited spaces while realizing effective cost control. Efficient packaging of circuits in limited space is possible, while realizing effective cost control. With the current trend toward integration of transportation equipment, there is a growing need for lighter, smaller, and more cost-effective wiring harnesses, and the KR2021 wiring harnesses provide the ideal solution for infotainment, lighting, and HVAC systems with excellent performance and reliability in limited spaces.

In the face of the connection reliability challenges posed by improper assembly, rough road conditions and high vibration environments in automotive applications, the KR2021 connector unsealed system significantly improves connection reliability through a series of innovative designs that effectively address the risks of inaccurate terminal insertion, operator fatigue, and disconnections caused by shock and vibration.

Superior heat resistance, able to withstand specified infrared (IR) and wave lead-free soldering treatments up to +260°C.

Specifically designed for thin wires 0.35mm² and below, effectively reducing wire size.

Significantly reduces weight, saves space, and lowers costs compared to conventional 0.64mm connections.

Three unique mechanical, visual and color polarization options are available to ensure accurate connections and avoid misplugging.

Directly integrates with the receptacle housing, eliminating the need for additional components and effectively reducing application costs.

Provides optional CPA latching to prevent accidental disassembly and ensure connection stability.

The advanced matte sealing design meets IPX8 protection requirements and is suitable for a wide range of sealed applications.

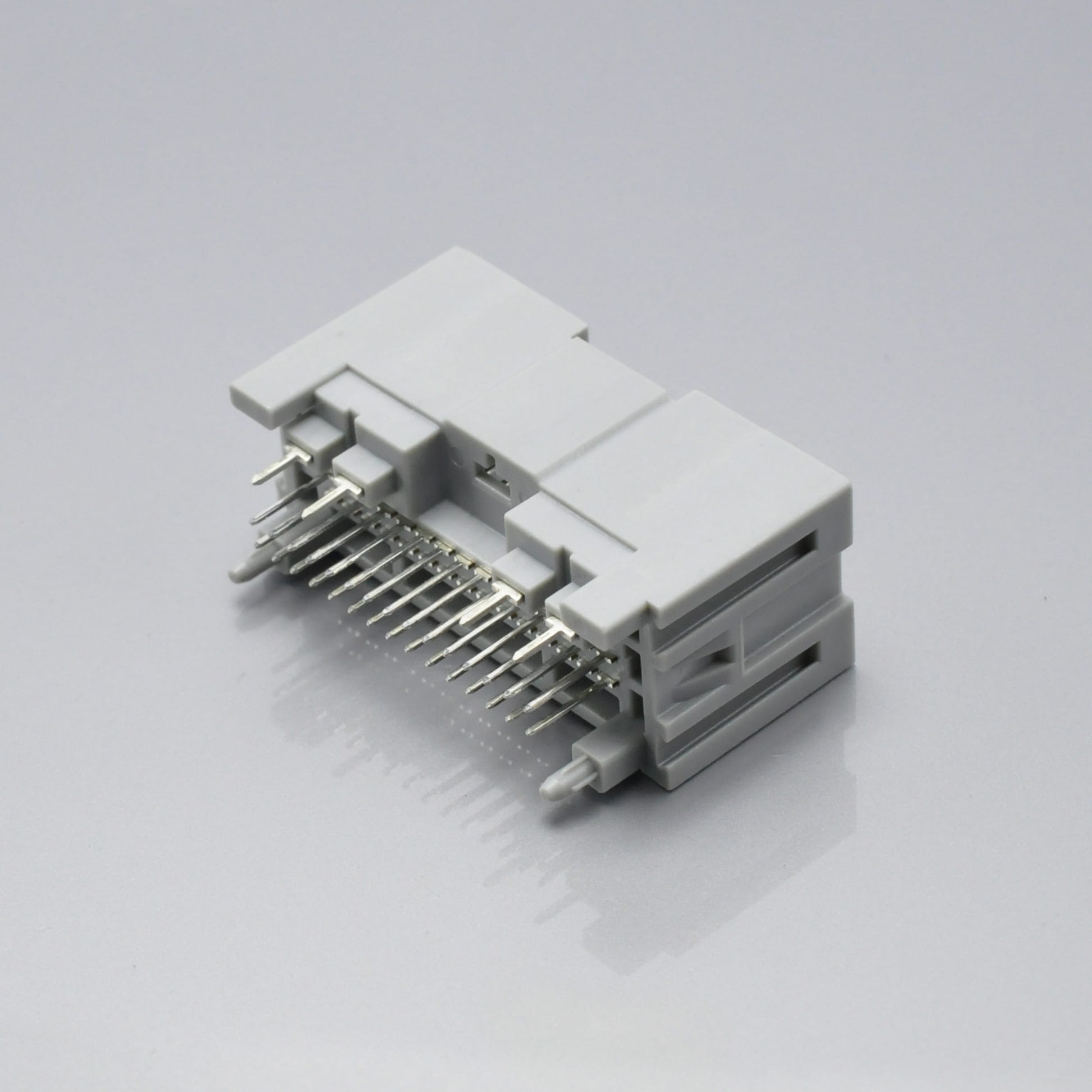

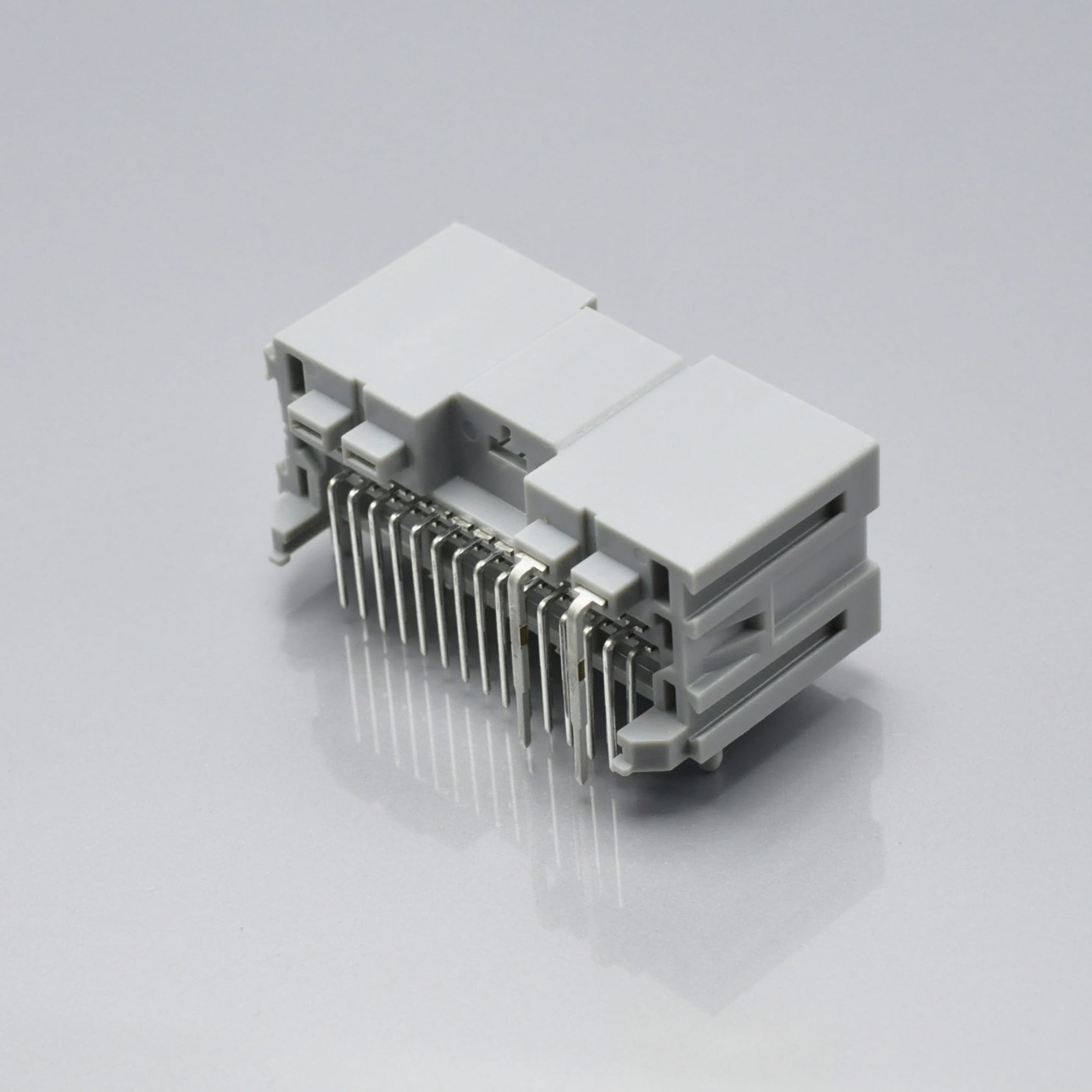

Simplifies PCB positioning of the header and ensures precise alignment.

Secure headers during soldering operations to prevent displacement and ensure solder quality.

Protects bonded joints during connector mating and dismounting for longer service life.
