KR2028 Series Dual Row DIP Right Angle U Type Pin Header H=17.0
KR2028 — Pitch 2.00mm · Circuits 2*2-2*40pin · Current 2A
- Series: KR2028
- Pitch: 2.00mm
- Pin Header
- Pitch
- 2.00mm
- Circuits
- 2*2-2*40pin
- Current
- 2A
DIP Type, dual row, Pin Header

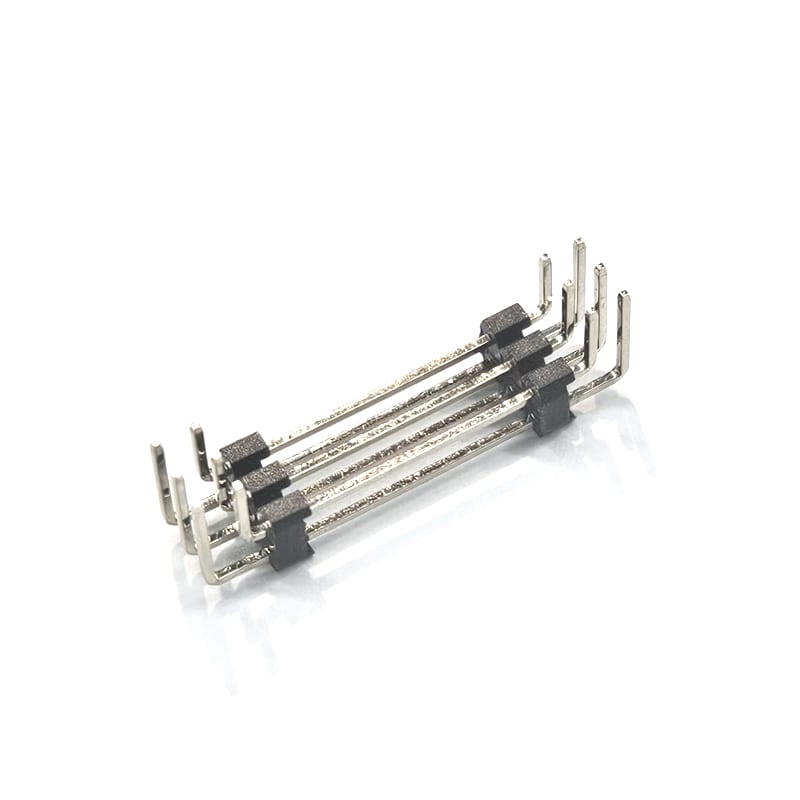

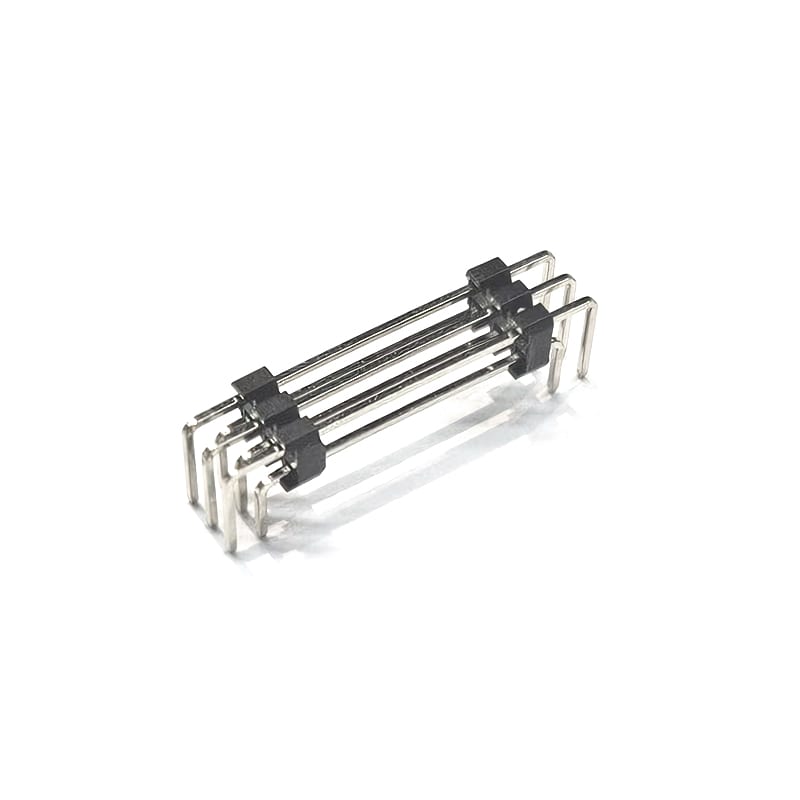

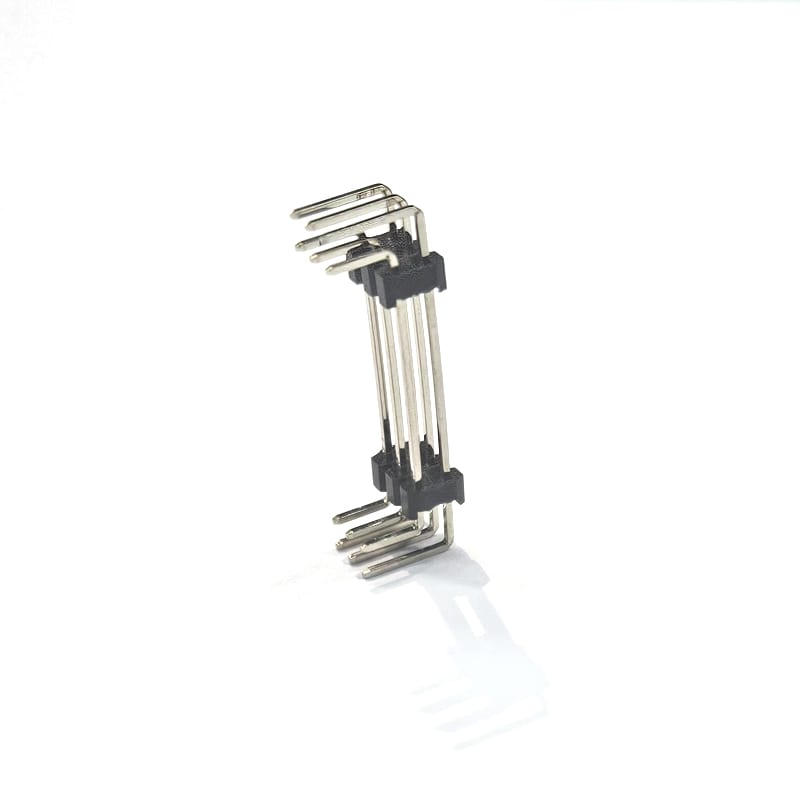

Product photos
Specifications
| Pitch | 2.00mm |
|---|---|
| Circuits | 2*2-2*40pin |
| Current | 2A |
| Type | Pin Header |
| Material | PA6T/ |
|---|---|
| Withstanding Voltage | 500V AC/ |
| Temperature Range | -40℃～+105℃ |
| Contact Resistance | 20mΩ/ |
| Insulation Resistance | 1000MΩ/ |
| Product Plating | Gold flash |
Description
The KR2028 Series Dual Row DIP Right Angle U Type Pin Header, with a height of 17.0mm, is a high performance pin connector designed for PCB boards. Its design combines the convenience of a double row of vertical inserts with the compactness of a right-angled U-shaped construction, designed to simplify the installation process and optimise space utilisation. This connector is designed to meet the diverse needs of electronic devices and board connections, ensuring robust and reliable electrical conductivity in a variety of applications.
Due to its professional design and manufacturing process, Pin Header can provide stable and reliable electrical connection to ensure the normal operation of electronic equipment.
The right-angle U-shaped structure and double-row in-line design make the connector easier to install and maintain, reducing operation difficulty and cost.
Compact structure design helps to save space on the circuit board, making the whole electronic equipment more compact and lightweight.
Pin Header may have good compatibility, can be used with a variety of circuit boards and other electronic components.
Features
- Stable and reliable electrical connection
- Easy to install and maintain
- Space-saving
- Good compatibility
