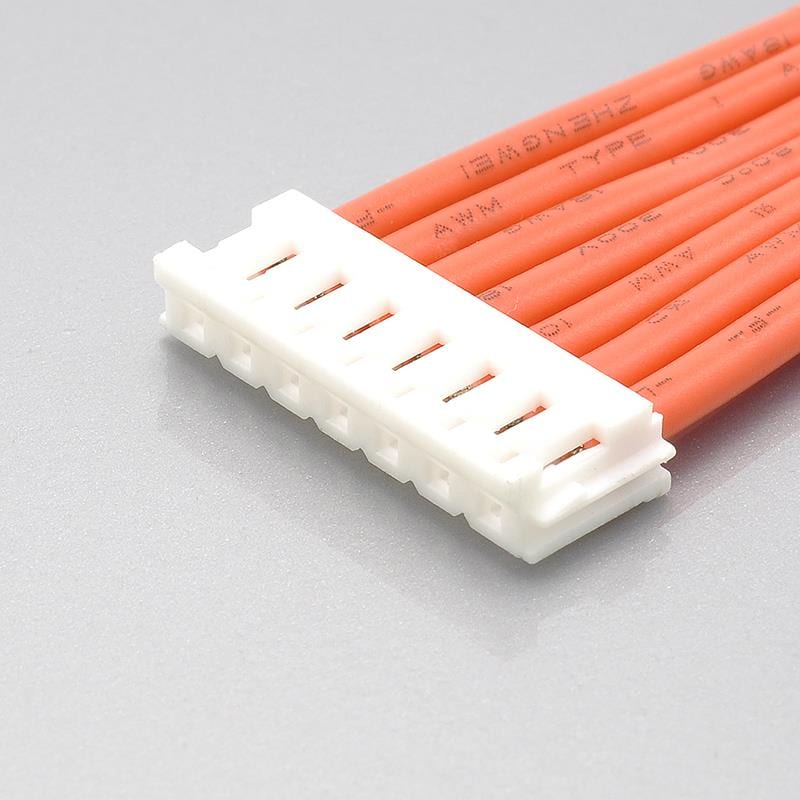

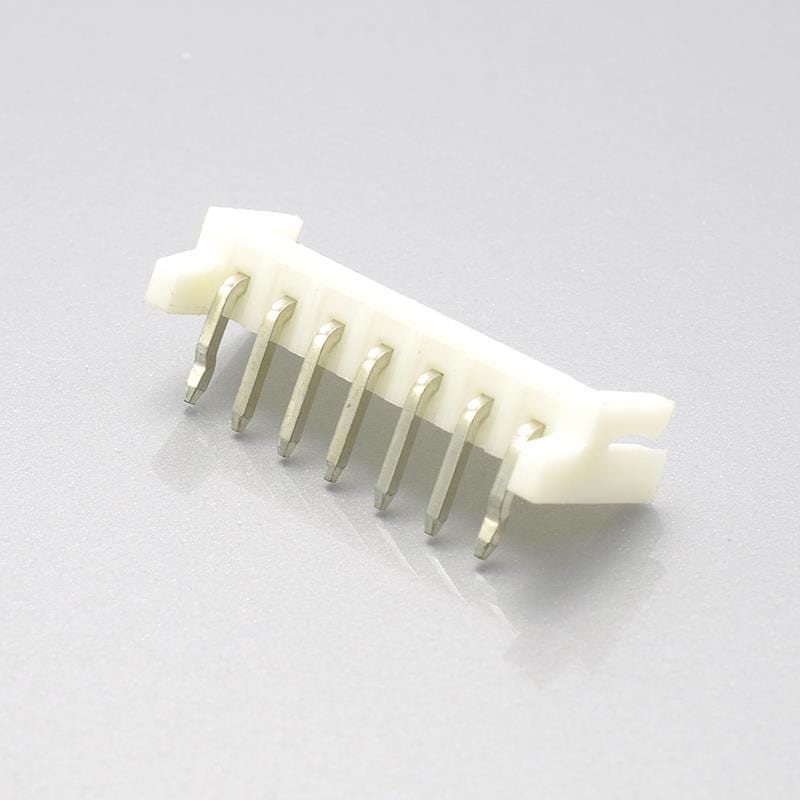

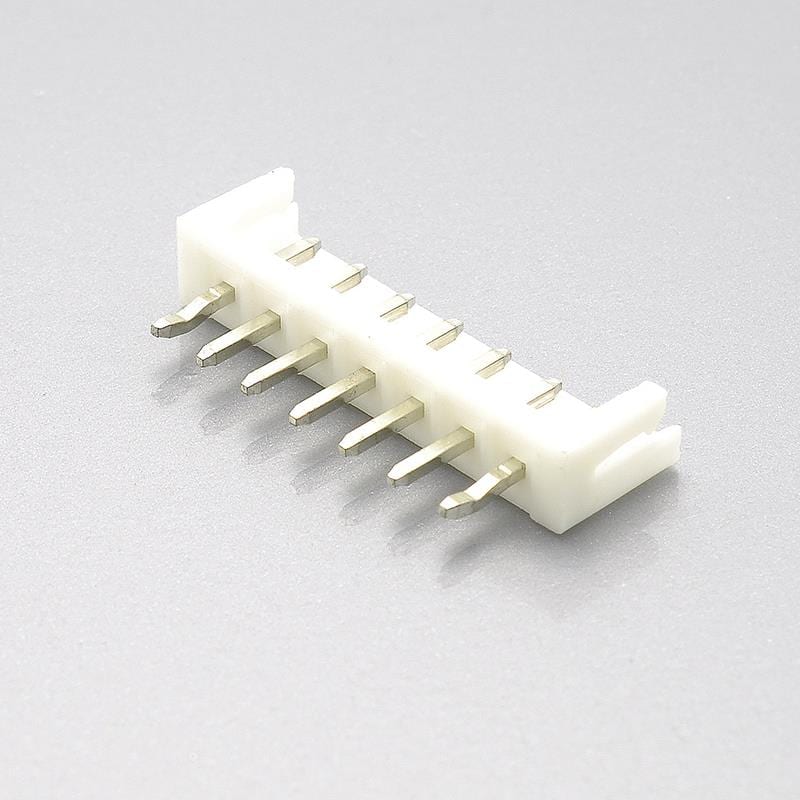

KR2504 Series EH 2.5 DIP Wire to Board Connector

Description

The KR2504 series connector is an electronic connector with a 2.5mm pitch crimp type connector. This connector series is widely used in a variety of electronic equipment for its thin design, high contact reliability, anti-misplaced structure and good operational efficiency. It occupies an important position in the field of electronic equipment connection. With the continuous development of electronic technology, KR2504 series connectors will continue to play an important role for the stable operation of a variety of electronic equipment to provide strong protection.

With a pitch of 2.5 mm and a height of 8.1 mm after mounting, it demonstrates the ultimate thin design, making it possible to realize high-density connections in a limited space.

The crimp-type connection provides reliable electrical connectivity, with contact resistance below 10mΩ at the initial stage and insulation resistance of 1,000MΩ or more, ensuring stable signal transmission.

Adopting unique anti-wrong-insertion design, it effectively avoids wrong operation during connection and improves working efficiency and safety.

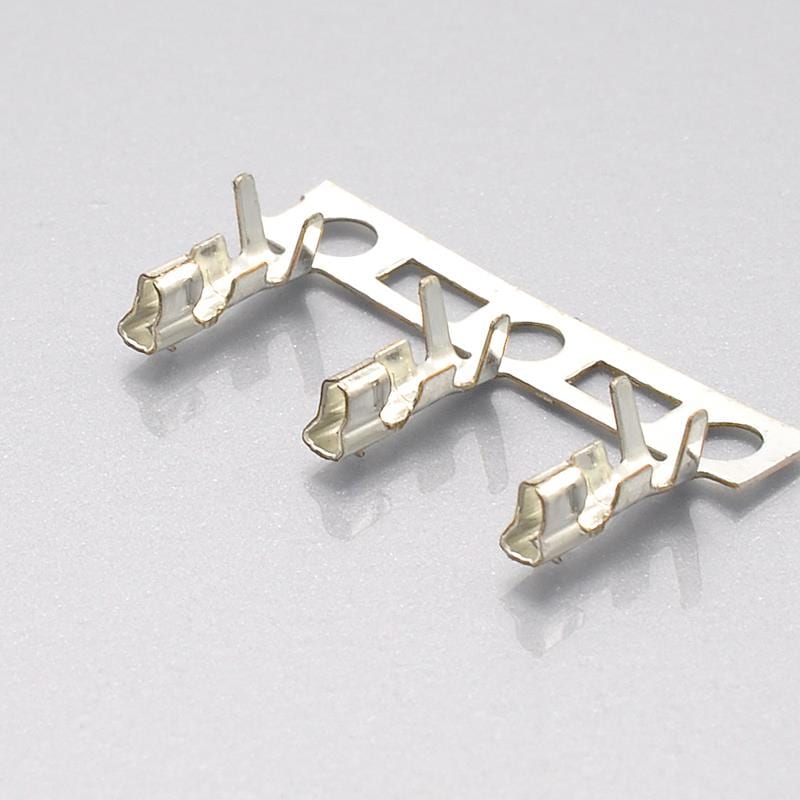

The crimping process makes the KR2504 series connectors have good efficiency during operation, which is suitable for mass production and automated production lines.
