KR2542 Series Female Pin Header
KR2542 — Pitch 2.54mm · Circuits 2~40 · Current 3A · Voltage 250V
- Series: KR2542
- Pin Header
- Pitch
- 2.54mm
- Circuits
- 2~40
- Current
- 3A
- Voltage
- 250V
2.54mm pitch connector, single row female pin header connector

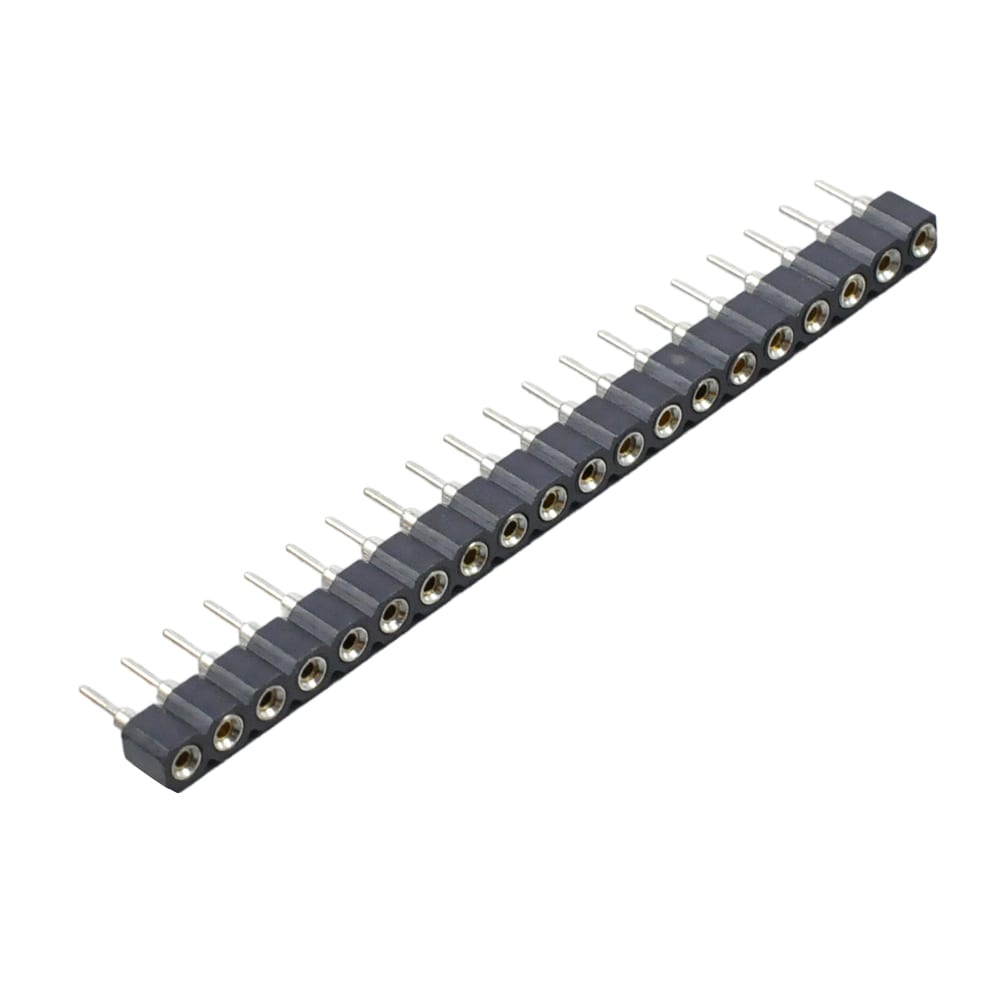

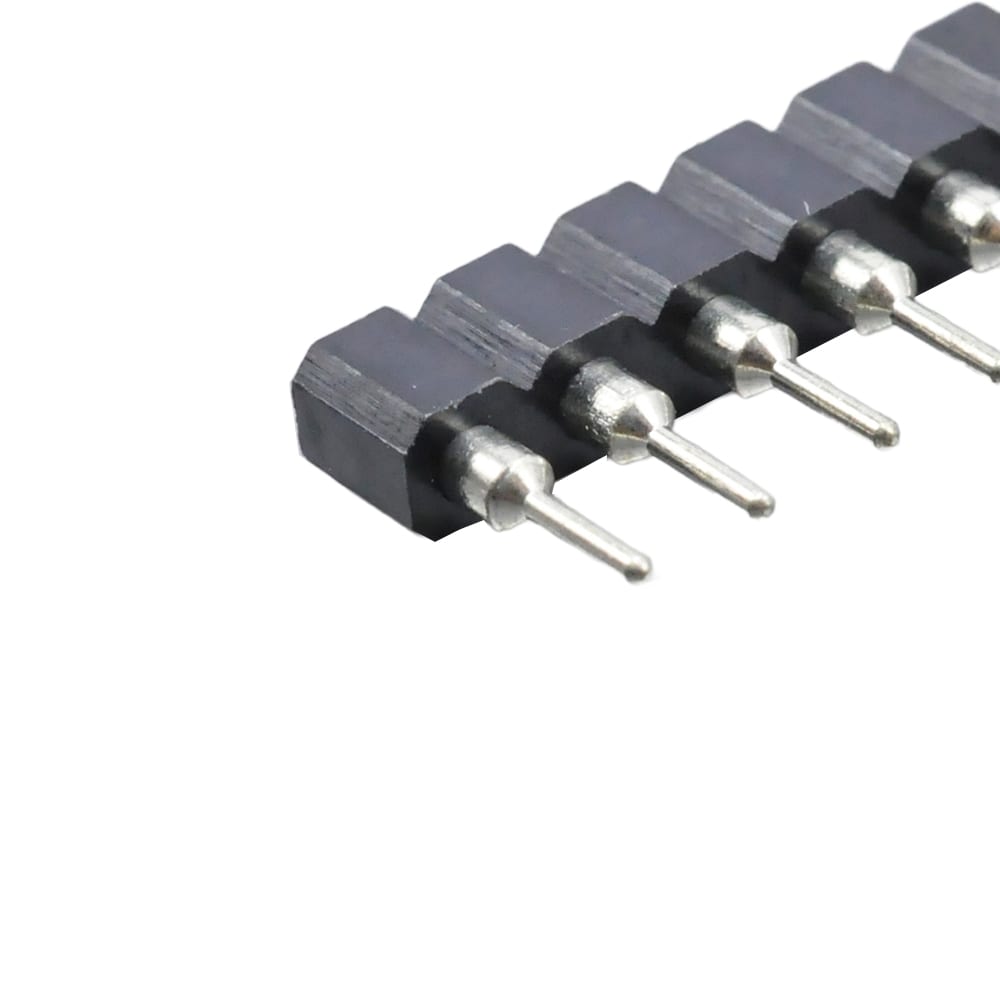

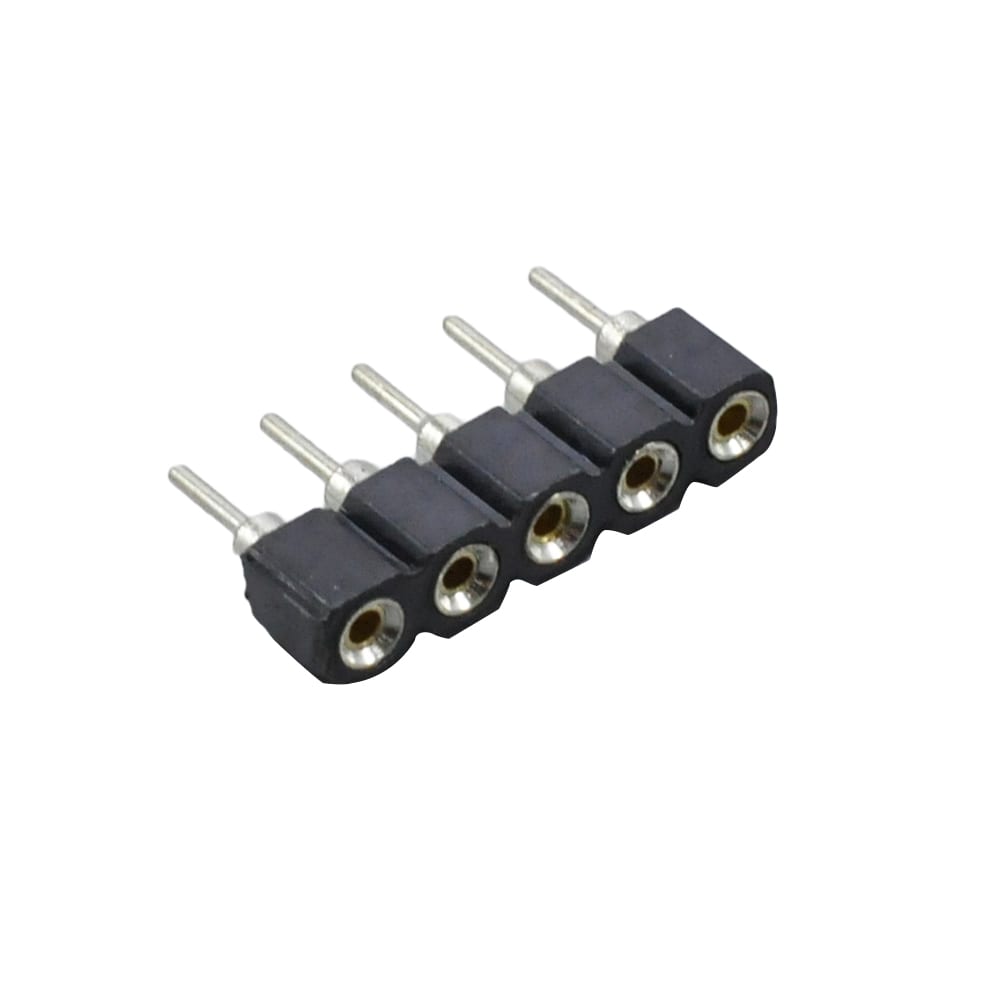

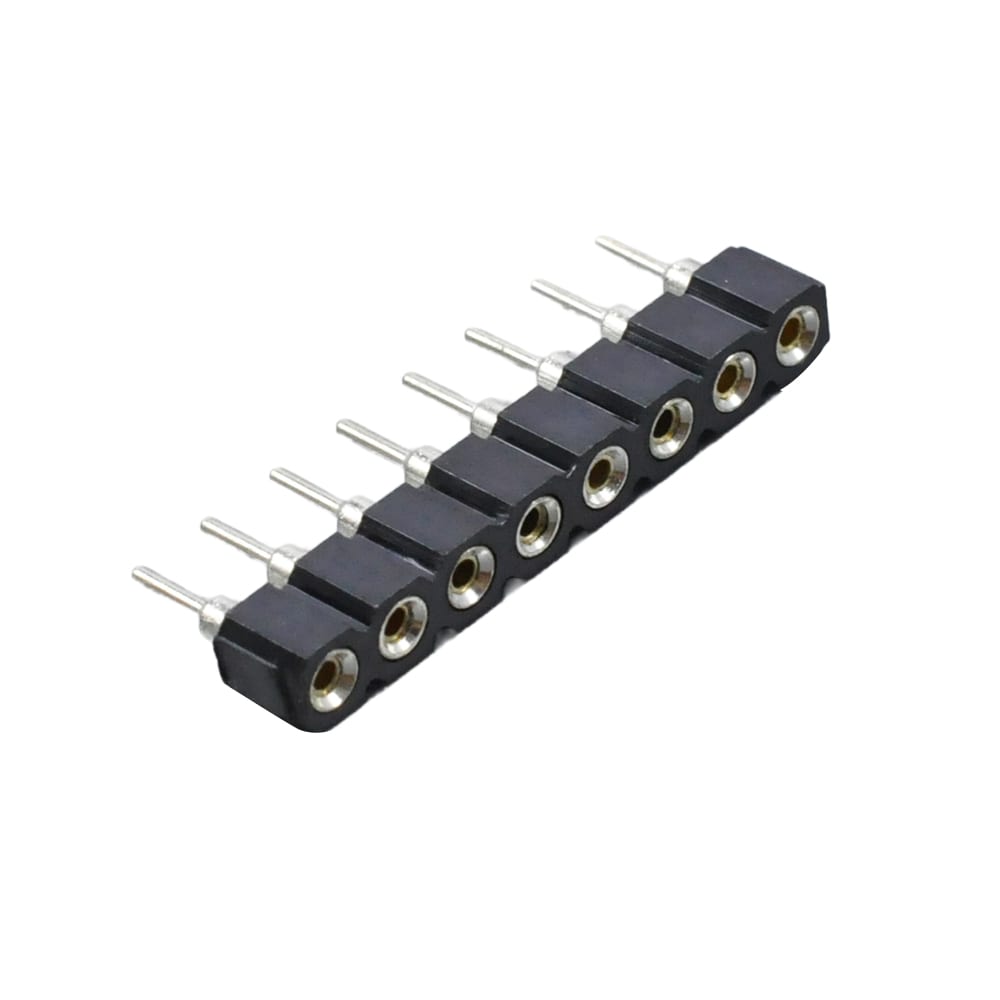

Product photos
Specifications
| Pitch | 2.54mm |
|---|---|
| Circuits | 2~40 |
| Current | 3A |
| Voltage | 250V |
| Material | PA6T/ |
|---|---|
| Insulation O.D | 1.7mm(MAX) |
| Withstanding Voltage | 250V AC/ |
| Temperature Range | -40℃～+105℃ |
| Contact Resistance | 20m Q/ |
| Insulation Resistance | 1000MQ/ |
| Product Plating | Tin over Nickel |
