KR3961 Series VH 3.96 DIP Wire to Board Connector
KR3961 — Pitch 3.96mm · Circuits 2-9pin · Current 7A · Voltage 250V

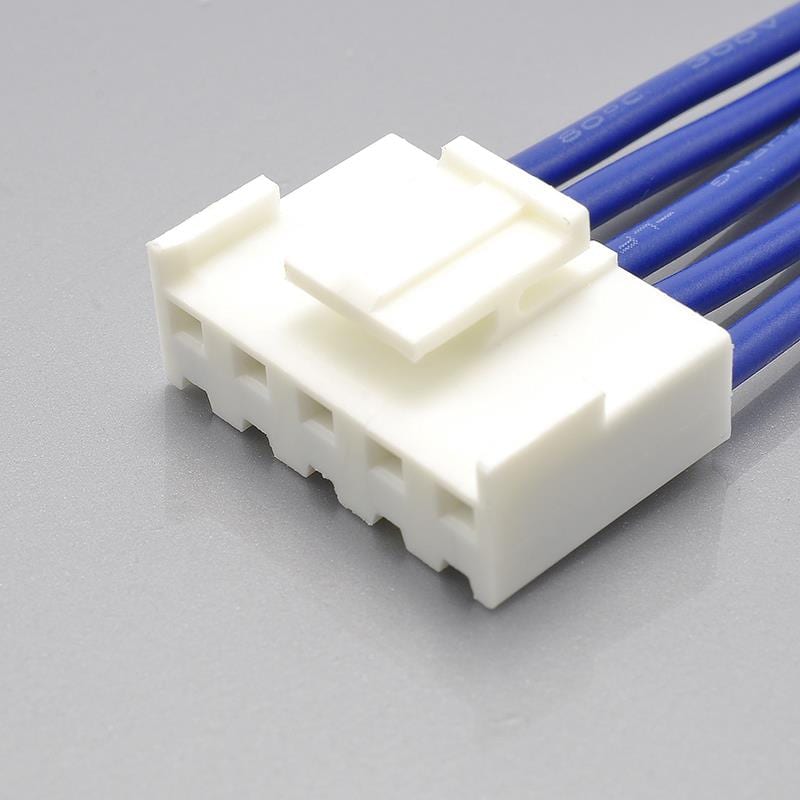

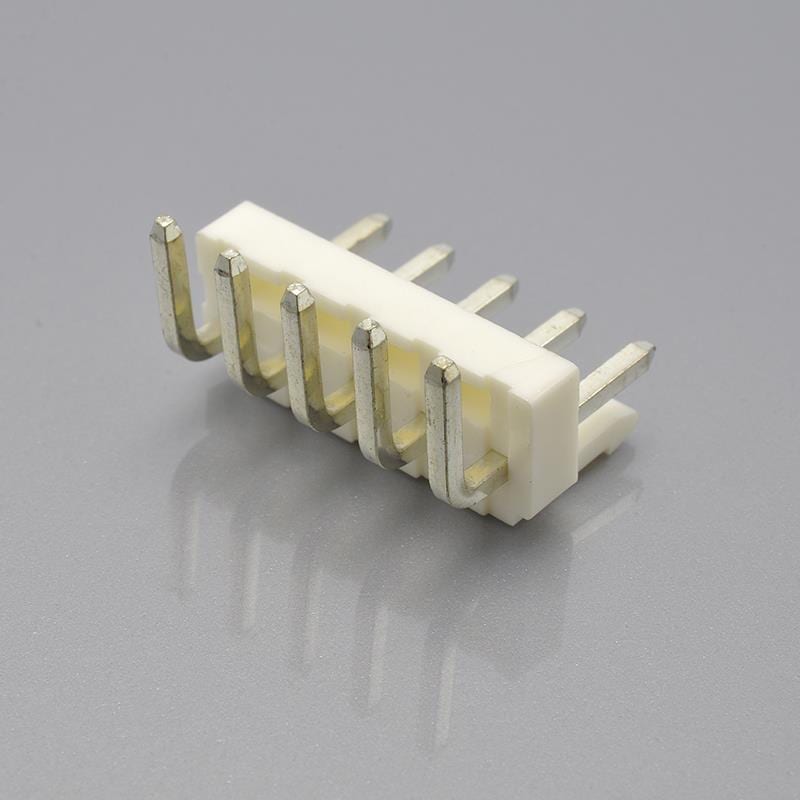

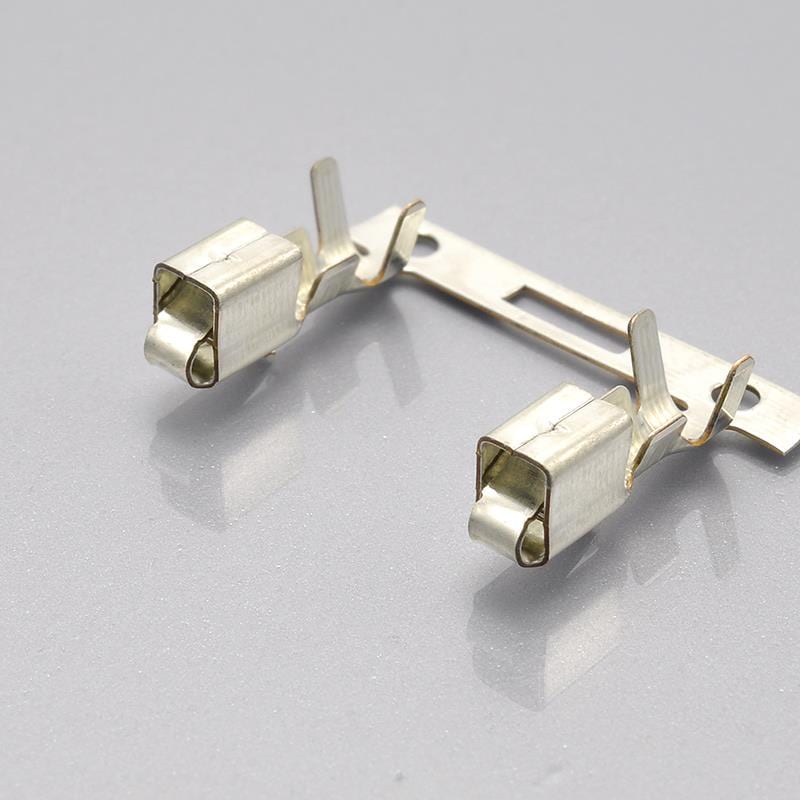

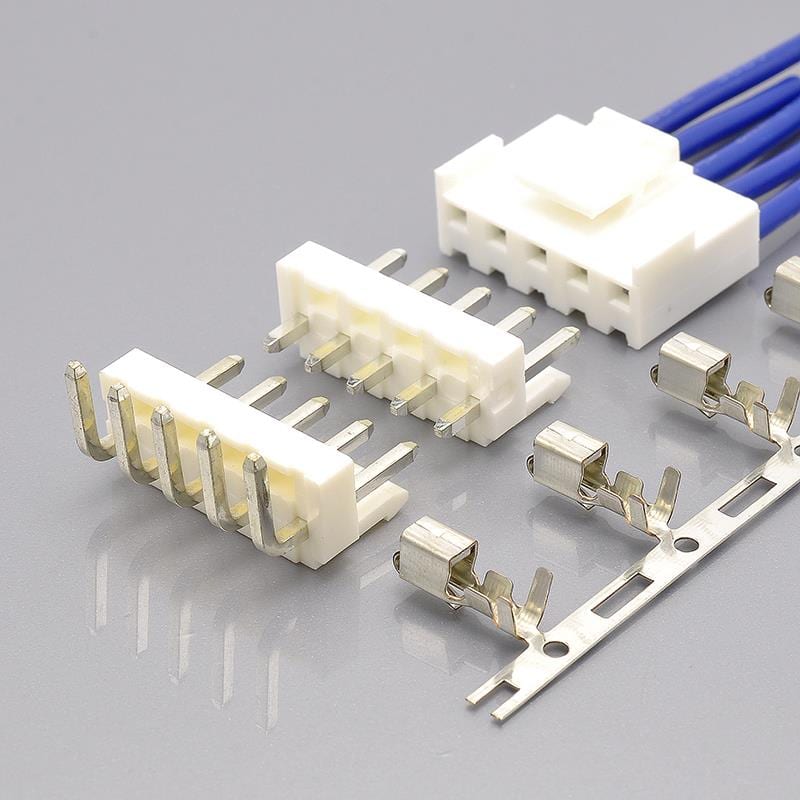

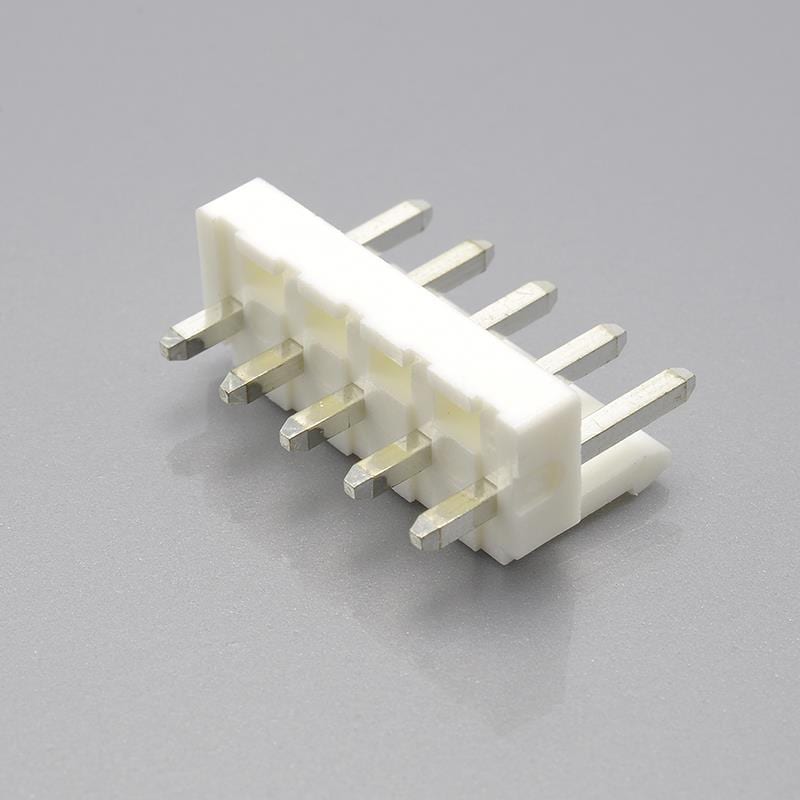

Product photos
- Series: KR3961
- Pitch: 3.96mm
- Wire-to-Board Connector
- Equivalent to JST
- Pitch
- 3.96mm
- Circuits
- 2-9pin
- Current
- 7A
- Voltage
- 250V
VH connector, This small, field-proven connector for PC boards is reliable and has a large current carrying capacity. It can be used with a wide variety of signal, power supply, and output circuits that appear in consumer electronic products.
Specifications
| Pitch | 3.96mm |
|---|---|
| Circuits | 2-9pin |
| Current | 7A |
| Voltage | 250V |
| Material | Brass PA66 UL94 V-0 |
|---|---|
| Insulation O.D | 2.80mm MAX |
| Withstanding Voltage | 1500V AC/ |
| Temperature Range | -40℃～+105℃ |
| Contact Resistance | 20m Q/ |
| Insulation Resistance | 1000MQ/ |
| Product Plating | Tin over Nickel |
Description
The KR3961 series connector is a high performance wire-to-board connector with a 3.96mm pitch for a wide range of signal, power and output circuit applications. This series of connectors is known for its compact form factor, excellent capacity, and robust locking contacts and mounts. Its pin terminals are mostly tinned brass with solder connections, providing excellent performance with a maximum current of 7A per contact and a maximum voltage of 250V. It is widely used in breakers, industrial control instruments, stereo air conditioners, large outdoor displays, smart homes and other fields. To summarize, KR3961 series connector is a wire-to-board connector with excellent performance, stability and reliability.
The KR3961 series connectors are known for their durability and long-lasting performance, even under harsh conditions.
Available in a variety of pin counts and configurations for applications ranging from small electronic devices to large industrial systems. It is widely used in areas such as wall breakers, industrial control instruments, stereo air conditioners, large outdoor displays, and smart homes.
The robust locking mechanism ensures a secure and stable connection, reducing the risk of interruption or downtime and ensuring that the connector remains stable in harsh environments such as vibration and shock.
Its compact 3.96mm pitch design, combined with highly conductive brass tinned pin terminals, enables high current carrying capacity for a wide range of signal and power circuits. At the same time, this series of connectors offers excellent performance with a maximum current of 6.00A per contact and a maximum voltage of 250V, ensuring the reliability and stability of the connection.
In short, the KR3961 series connectors are a reliable solution for dependable and secure connections in a wide range of industries. Their high current capacity, versatility and robust design make them an excellent choice for a variety of applications where connectivity is critical. Whether you’re in the automotive, industrial or renewable energy sectors, we have a connectivity solution you can trust.
Features
- Reliability
- Versatility
- Strong Mechanical Performance
- High Current Handling
