KR4005 Series AMP Heavy Duty Sealed Automotive Connector
KR4005 — Pitch 4.00mm · Circuits 2*3P · Current 3A AC, DC · Voltage 500V
- Series: KR4005
- Pitch: 4.00mm
- Automotive Connectors
- New Product
- Pitch
- 4.00mm
- Circuits
- 2*3P
- Current
- 3A AC, DC
- Voltage
- 500V
KR4005 Series AMP Heavy Duty Sealed Wire-to-Wire Connectors, Automotive Connectors, 4.00mm Pitch, Dual Row, 6 Circuits.Designed for critical applications, this connector is built to withstand extremely complex and harsh operating environments.

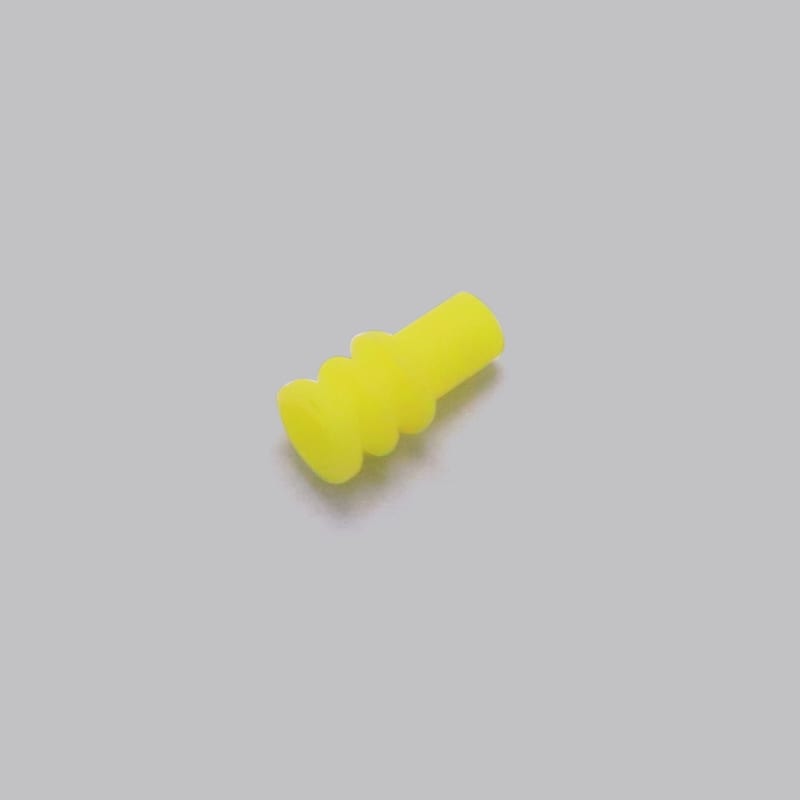

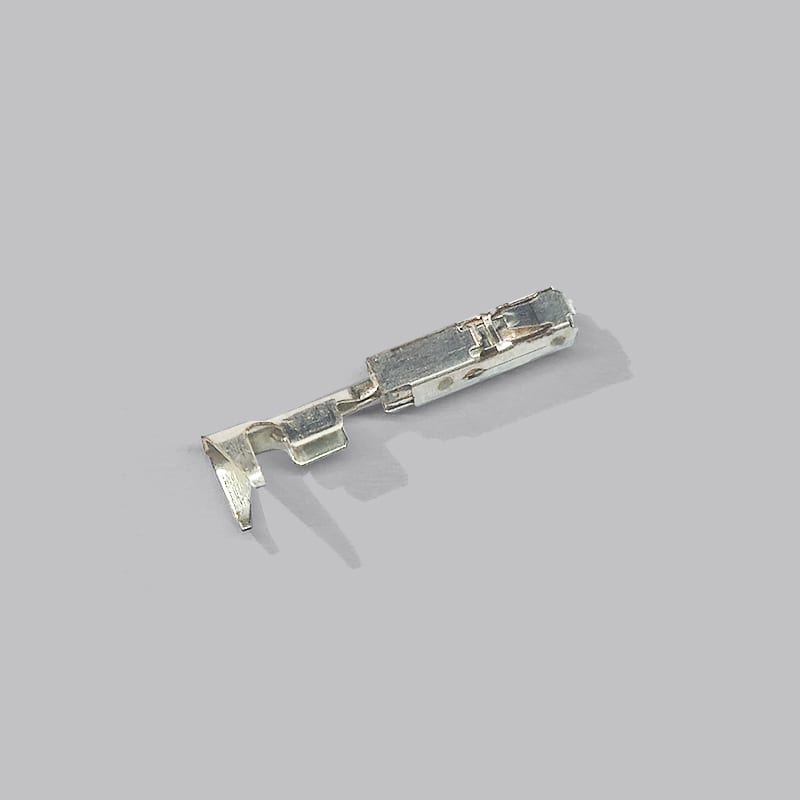

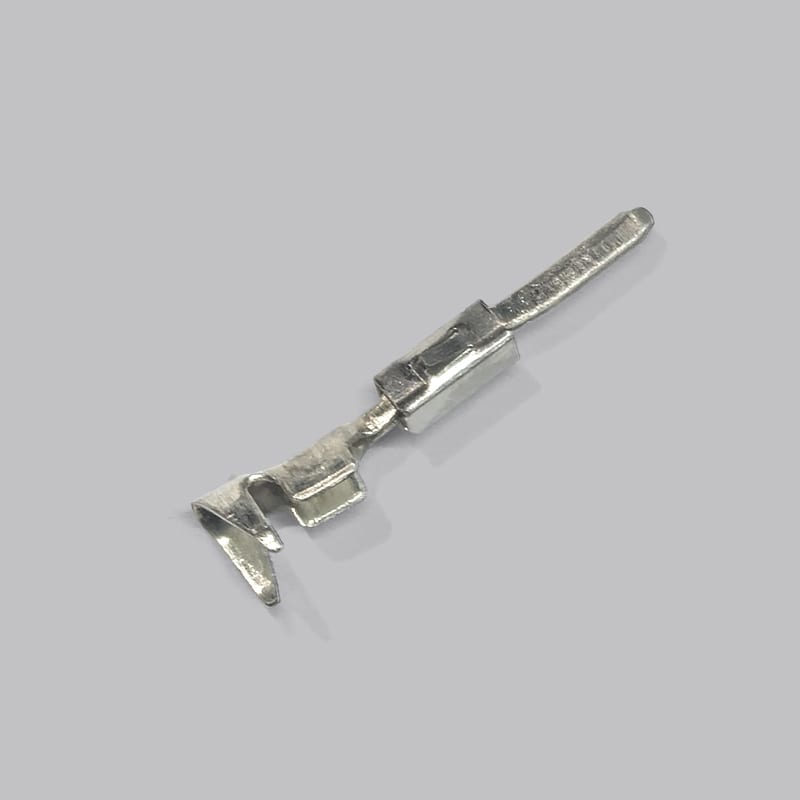

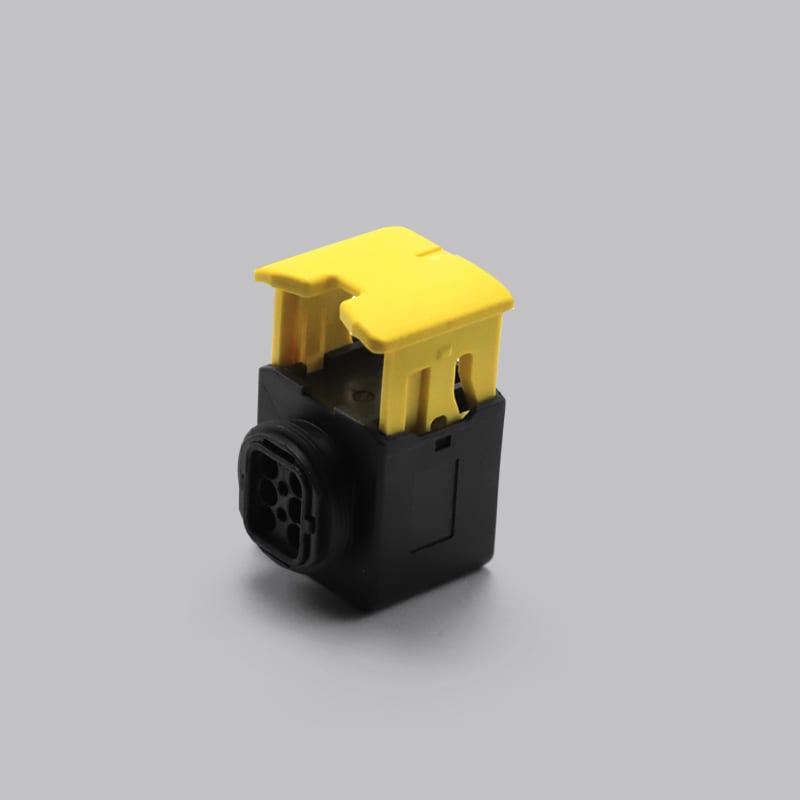

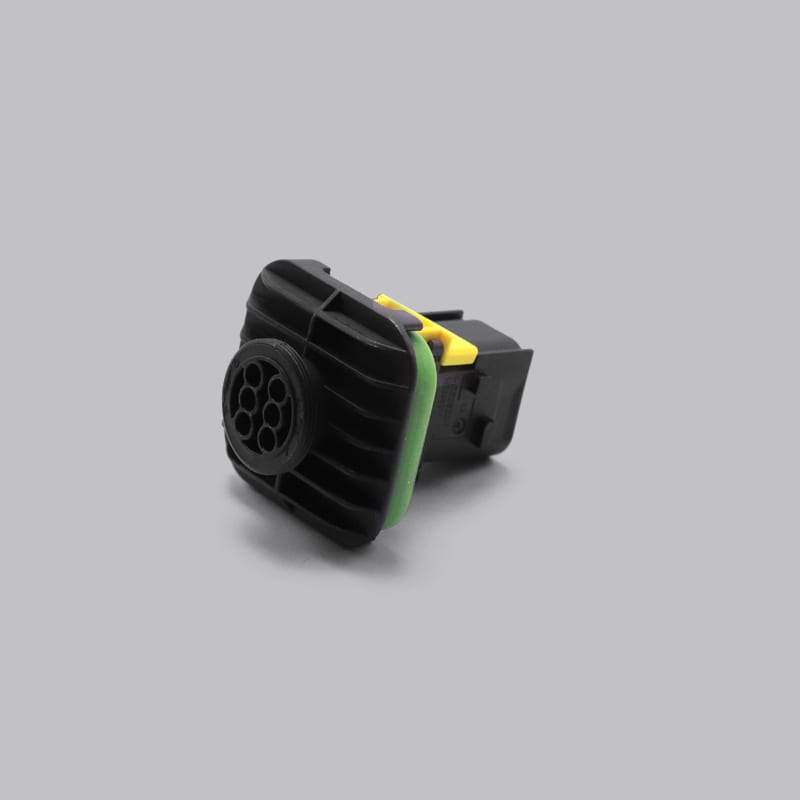

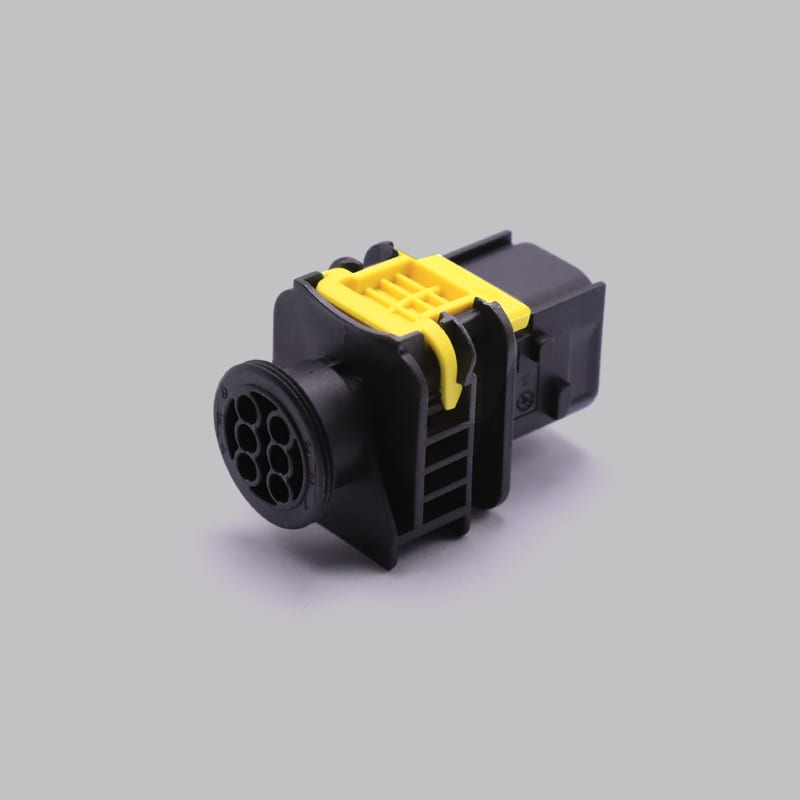

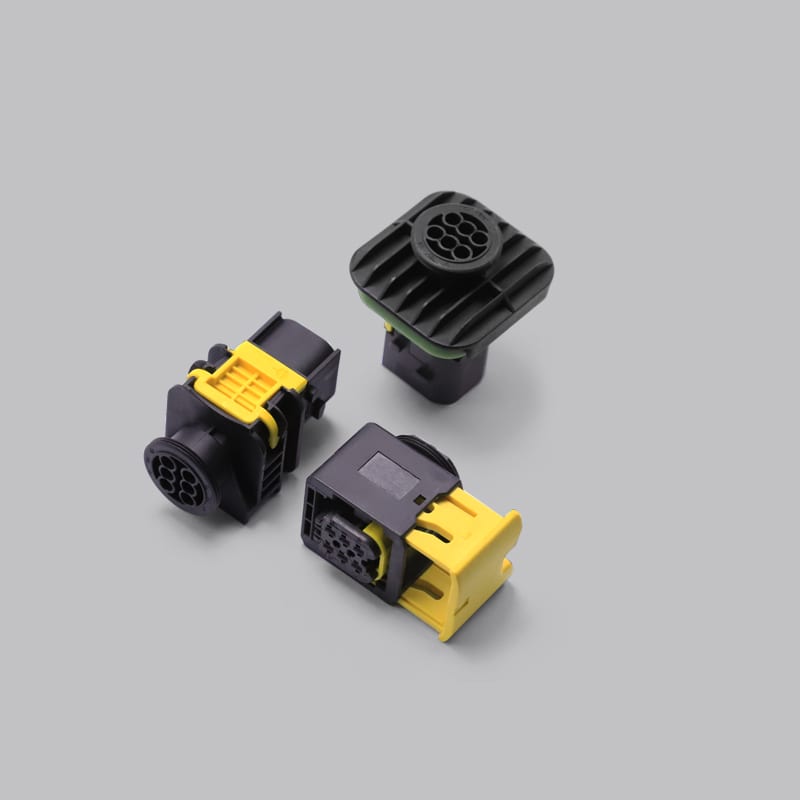

Product photos
Specifications
| Pitch | 4.00mm |
|---|---|
| Circuits | 2*3P |
| Current rating | 3A AC, DC |
| Voltage | 500V |
| Material | UL 94V-0 PBT Copper Alloy |
|---|---|
| Wire/Cable Size (AWG) | 20# – 17# |
| Withstanding Voltage | 500V AC/ |
| Temperature Range | -40℃~140℃ |
| Contact Resistance | 5mΩ Max |
| Insulation Resistance | 1000MΩ Min |
| Product Plating | Tin plated over Nickel |
Description
KR4005 Series AMP Heavy Duty Sealed 3.00mm Pitch 6Pin Automotive Connector is designed for harsh environments and is suitable for use in trucks, construction machinery and many other areas. The rectangular thermoplastic housing and silicone gasket ensure stable operation under extreme temperature and humidity.
It supports a wide range of terminal types and positions, and has an integrated slider latch and secondary locking device to provide a stable, high-performance connection. Complying with many international standards, it has excellent waterproof, vibration-resistant and flame-retardant properties, making it an ideal choice for heavy-duty applications.
The robust glass-filled PBT housing and silicone gaskets are able to withstand extreme temperature and humidity conditions, ensuring long-term stable operation in harsh environments.
Complies with international electrical standards, such as insulation resistance, dielectric withstand voltage and other excellent performance to ensure electrical safety.
The use of UL 94 V0 fire-rated materials improves product safety.
Supports a variety of terminal types to meet different current requirements, achieving highly stable and high-performance connections.
The integrated slider locking structure is paired with a secondary locking device to ensure that the terminals are assembled in place and to enhance retention force to prevent accidental dislodgement.
Features
- High durability and stability
- High Electrical Performance
- Flame retardant safety
- High-performance connection
- Reliable locking mechanism
