KR1200 Series Pico Ezmate Electronic Wire Connectors
KR1200 — Pitch 1.20mm · Circuits 2~7P · Current 1.5A · Voltage 50V

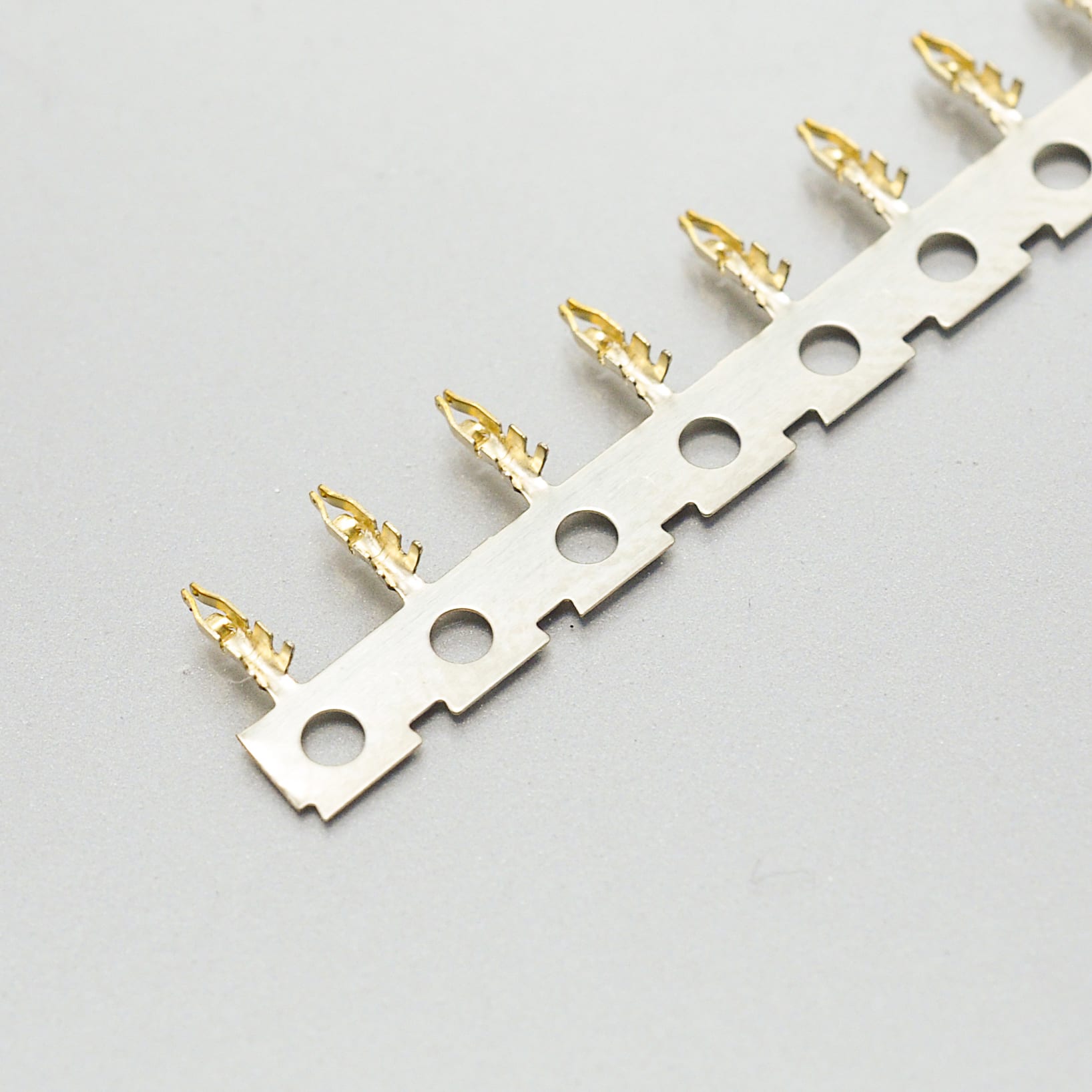

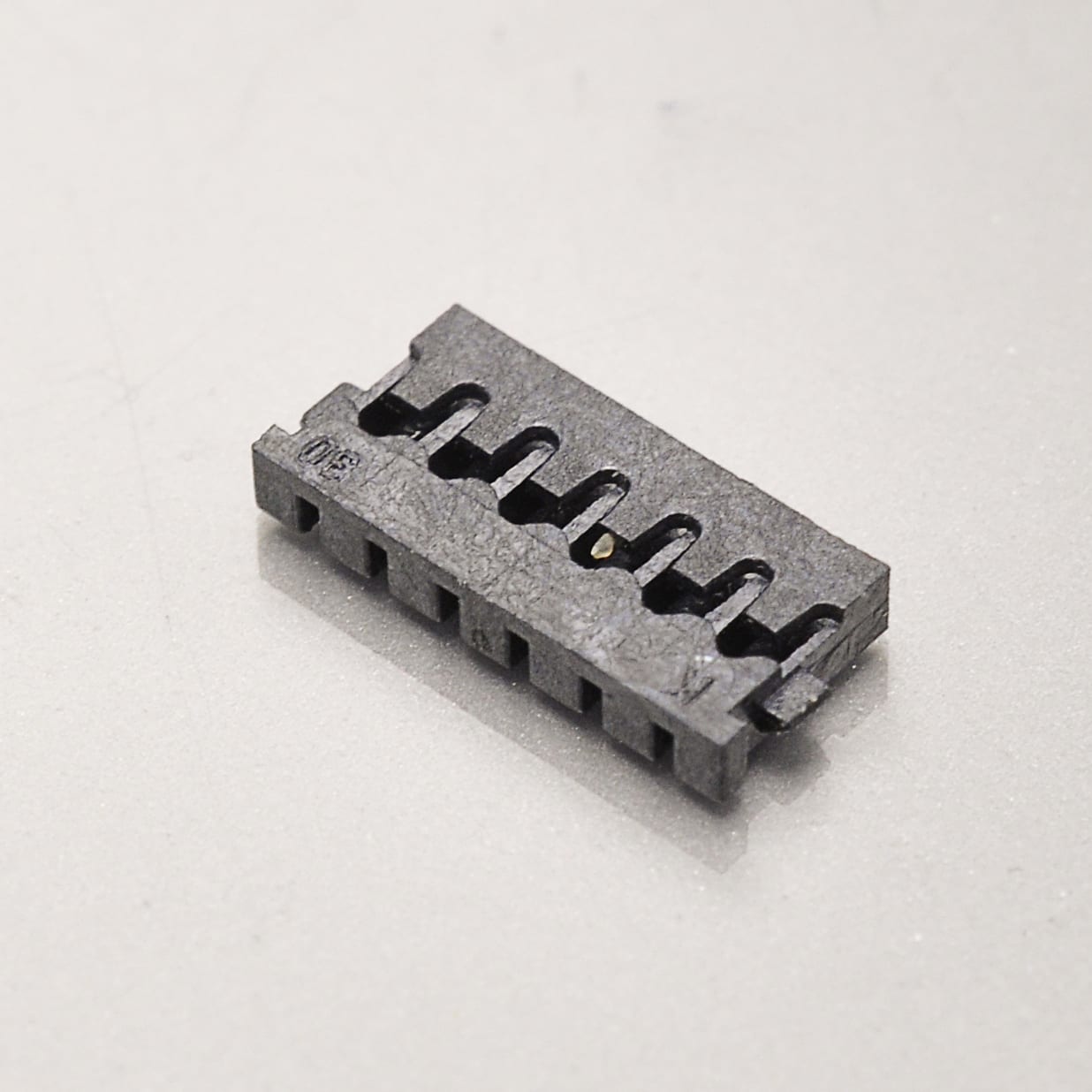

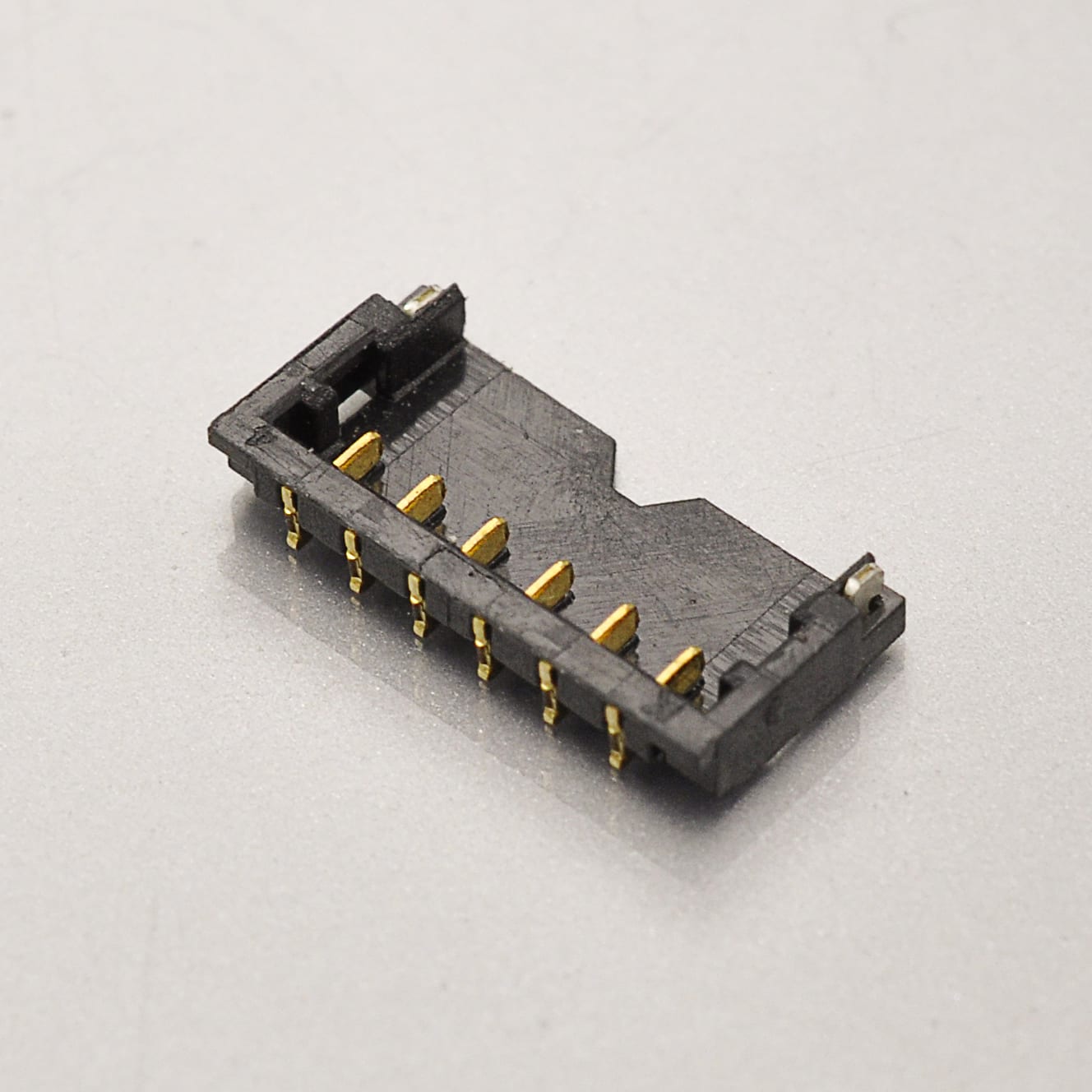

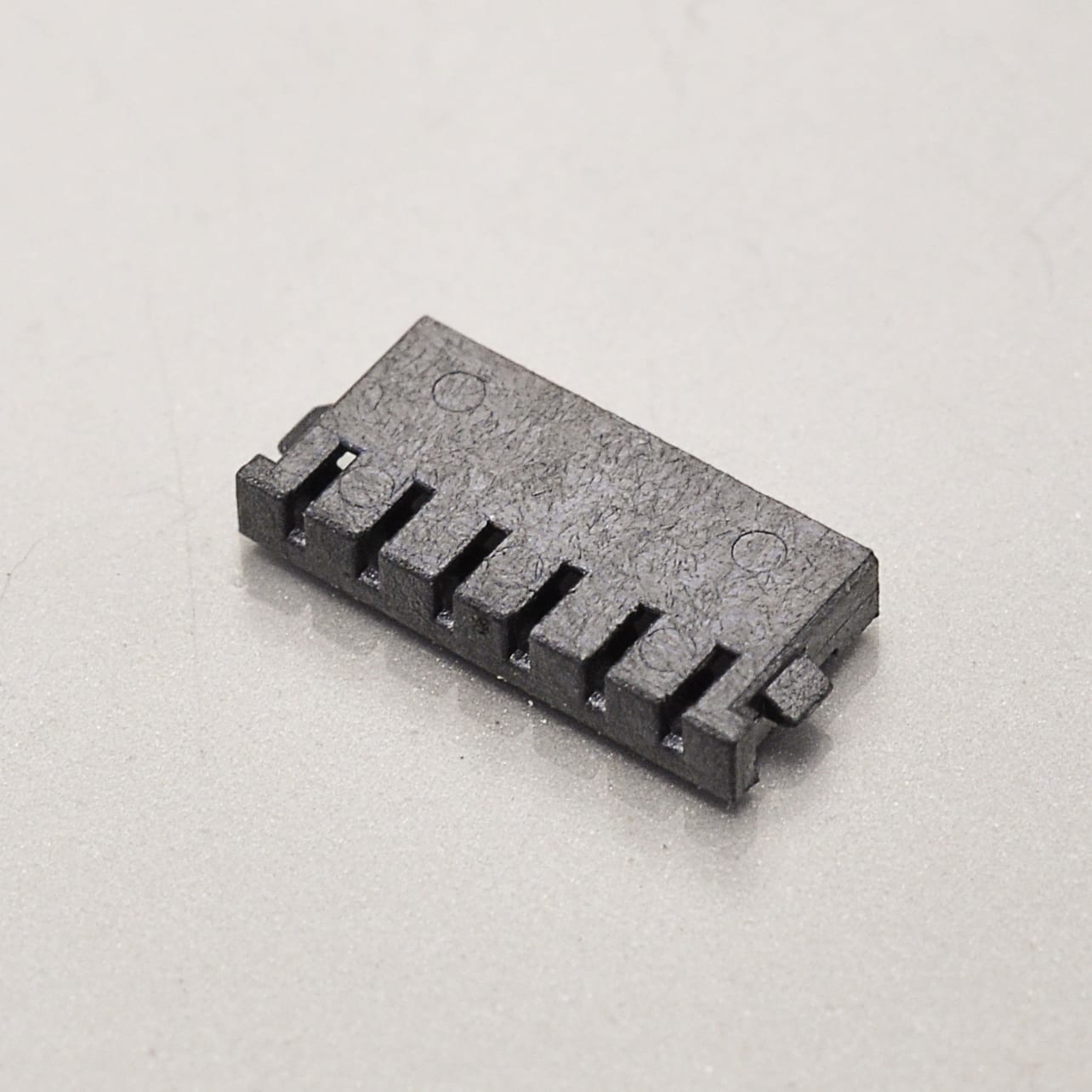

Product photos
- Series: KR1200
- Pitch: 1.20mm
- Wire-to-Board Connector
- Equivalent to Molex
- Pitch
- 1.20mm
- Circuits
- 2~7P
- Current
- 1.5A
- Voltage
- 50V
The Connector Systems are designed for space-constrained applications. Each product has its own unique features and advantages. This connector provides a higher current rating and wider temperature range, and it is designed for high current-carrying applications.
Specifications
| Pitch | 1.20mm |
|---|---|
| Circuits | 2~7P |
| Current | 1.5A |
| Voltage | 50V |
| Material | PA9T/ |
|---|---|
| Insulation O.D | 0.75mm |
| Withstanding Voltage | 50V AC/ |
| Temperature Range | -40℃～+105℃ |
| Contact Resistance | 20m Q/ |
| Insulation Resistance | 100MQ/ |
| Product Plating | Gold Flash over Nickel |
Description
In today’s fast-paced, technologically advanced world, where connectivity is a key driver of progress, the KR1200 series of connectors simplifies the complex network of connections in a wide range of applications with its outstanding performance. 1.5A current rating and 50V voltage rating provide outstanding connectivity performance. In addition, it can operate stably over a wide temperature range of -40°C to +105°C, demonstrating excellent adaptability and reliability. The connector features low contact resistance (max. 20 mΩ) and high insulation resistance (min. 100 MΩ), ensuring stable and safe connections. It can also withstand voltage spikes of up to 500VAC/minute, providing a solid guarantee for a variety of application scenarios.The KR1200 series connectors are ideal for a wide range of applications due to their high efficiency, reliability, and stable performance.
Provides fast, error-free docking, eliminating the possibility of misdirection or misdocking
Prevents mis-docking and ensures accurate and safe docking
Adopts snap-on docking design for quick assembly and improved productivity
Facilitates easy installation in vertical spaces to maximize space utilization
Easy to use pick and place technology for automated production efficiency
Features
- Vertical docking design
- Polarization key function
- Open top socket head
- Ultra-low profile docking height
- Open space socket head
