KR1256 Series DF13 Wire to Board Connector
KR1256 — Pitch 1.25mm · Circuits 2-15pin/

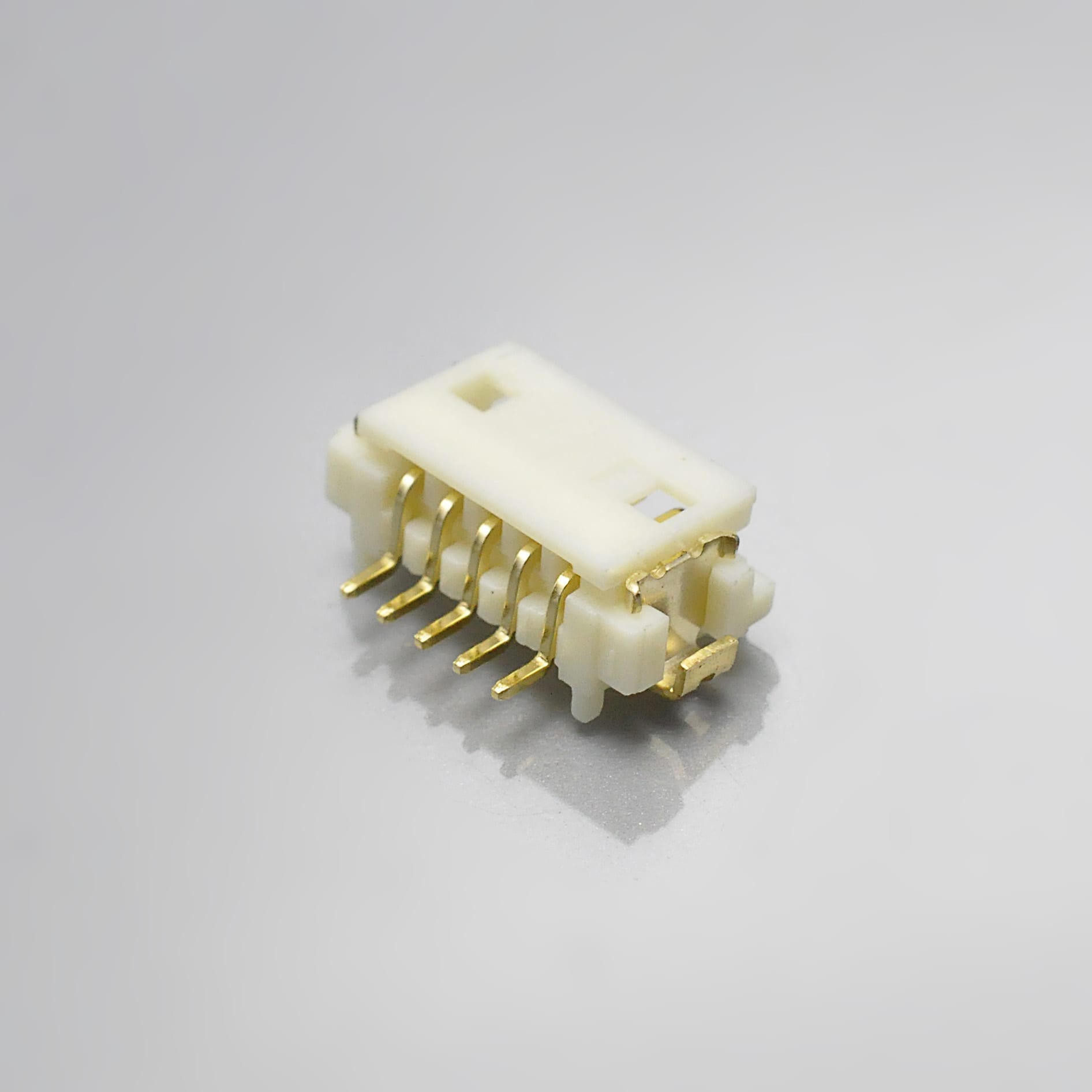

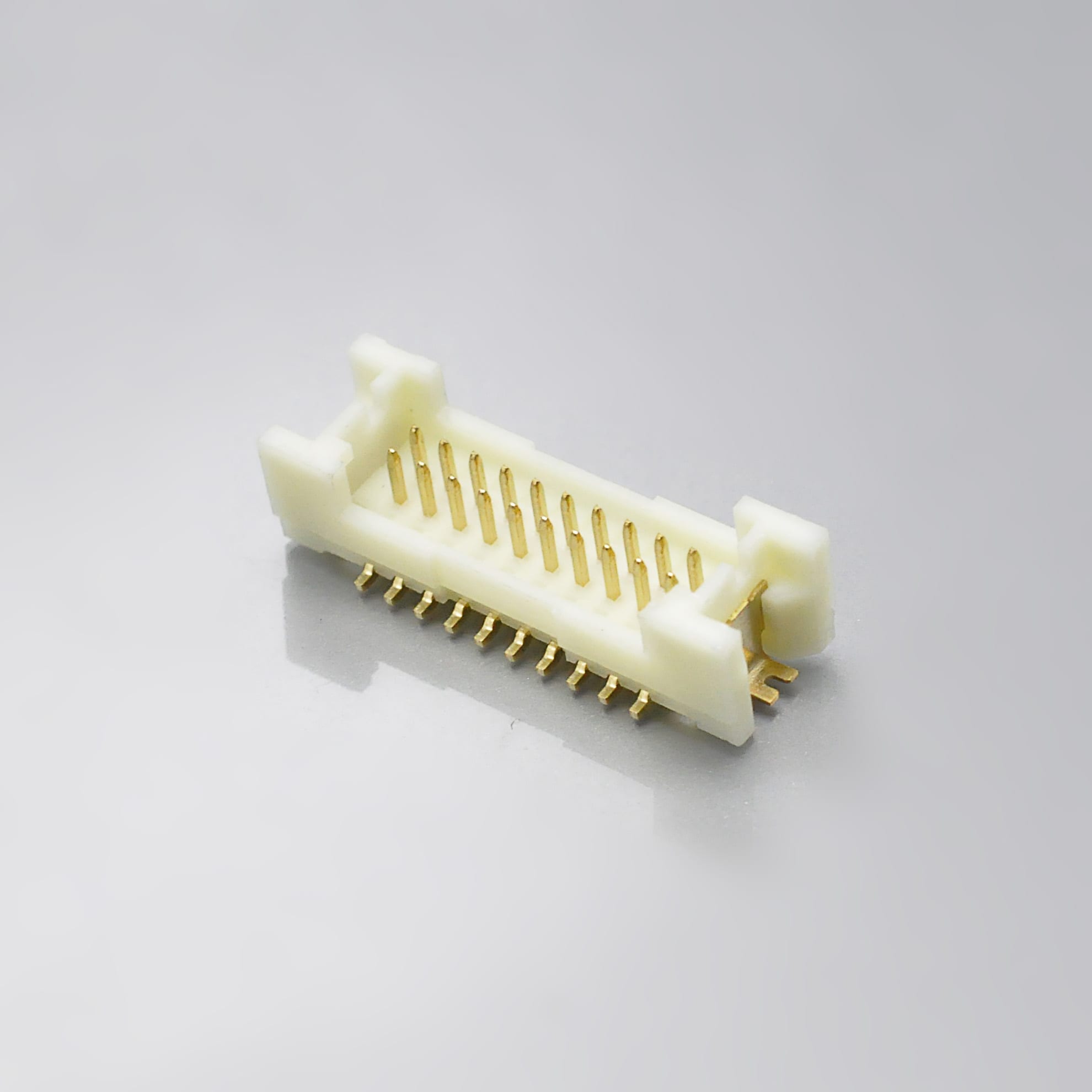

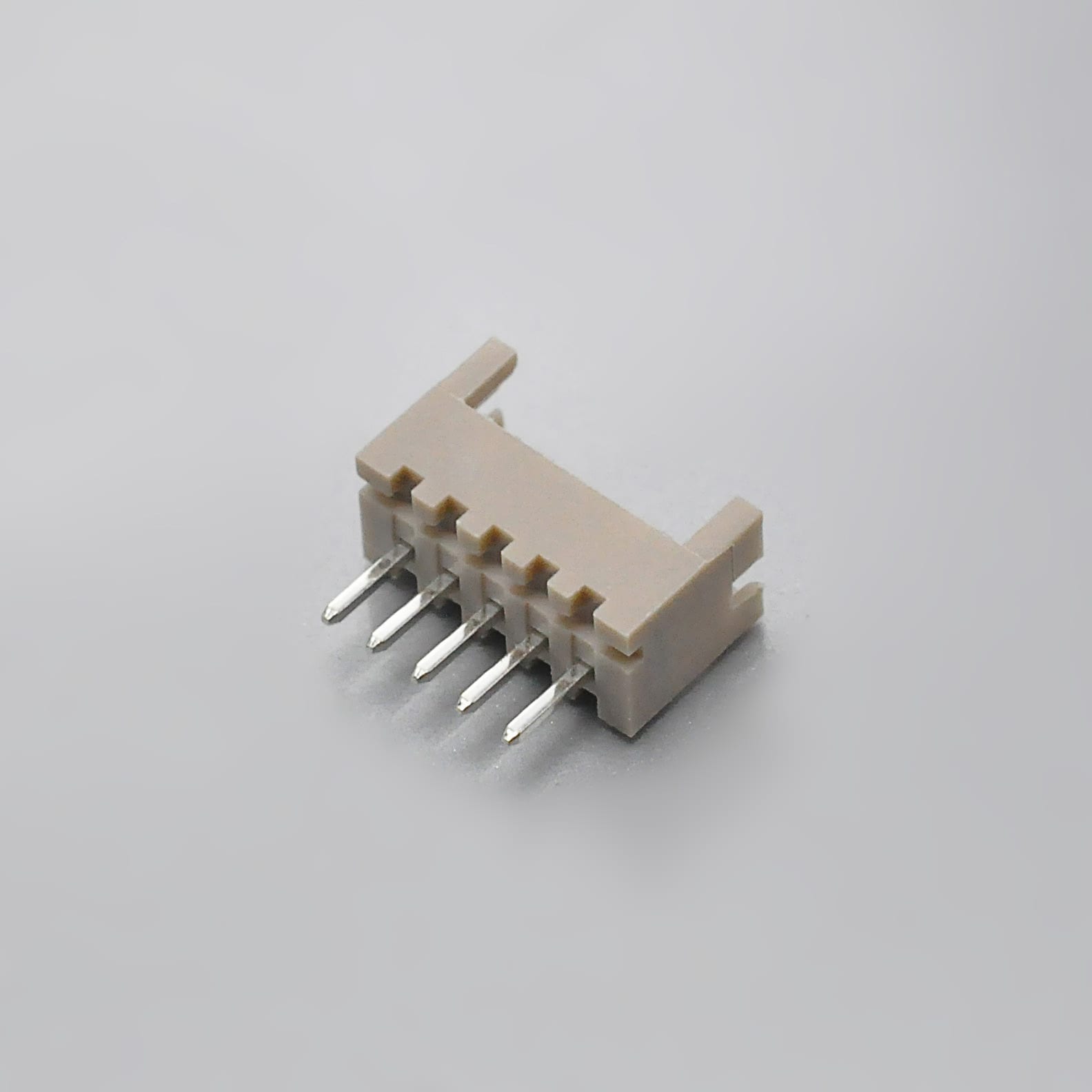

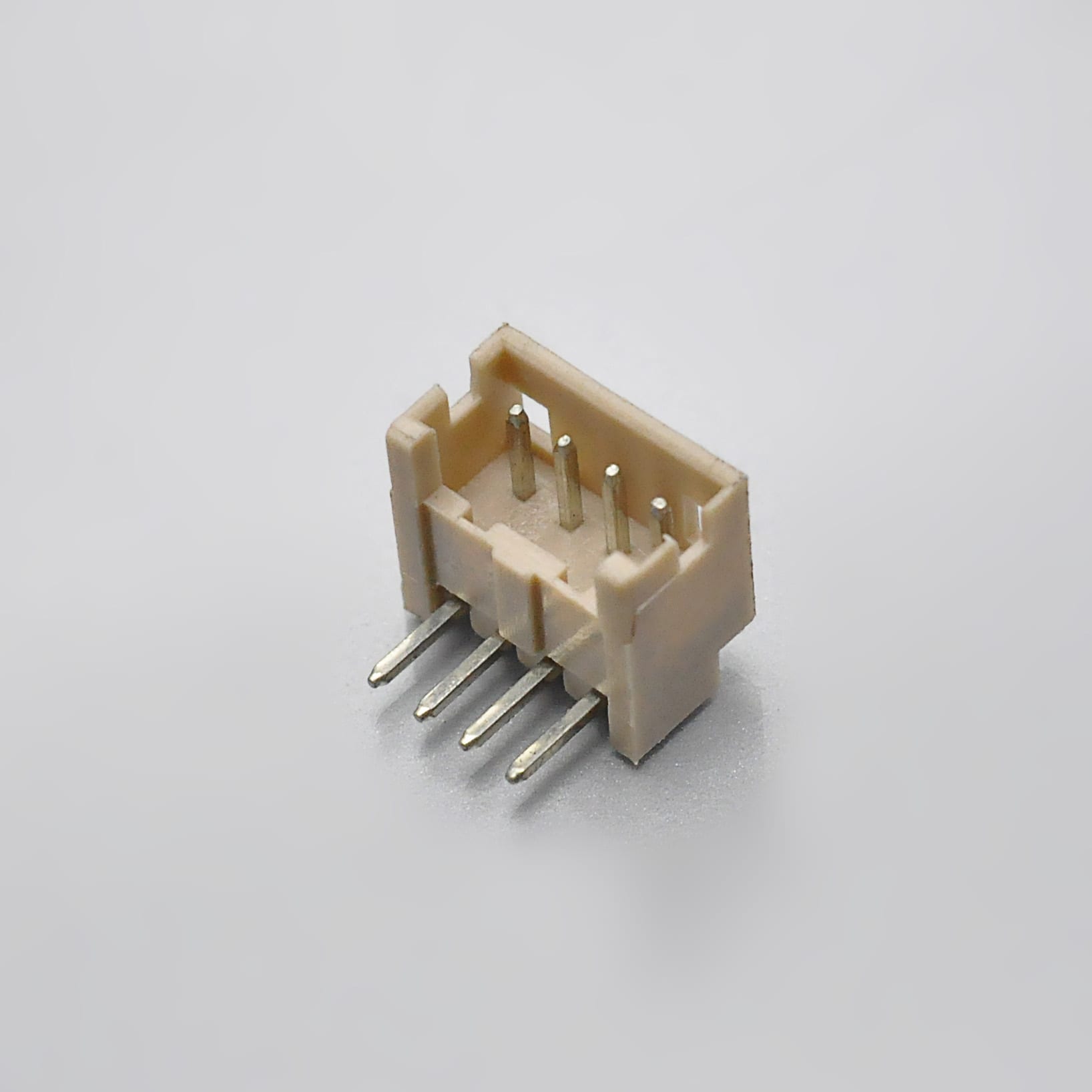

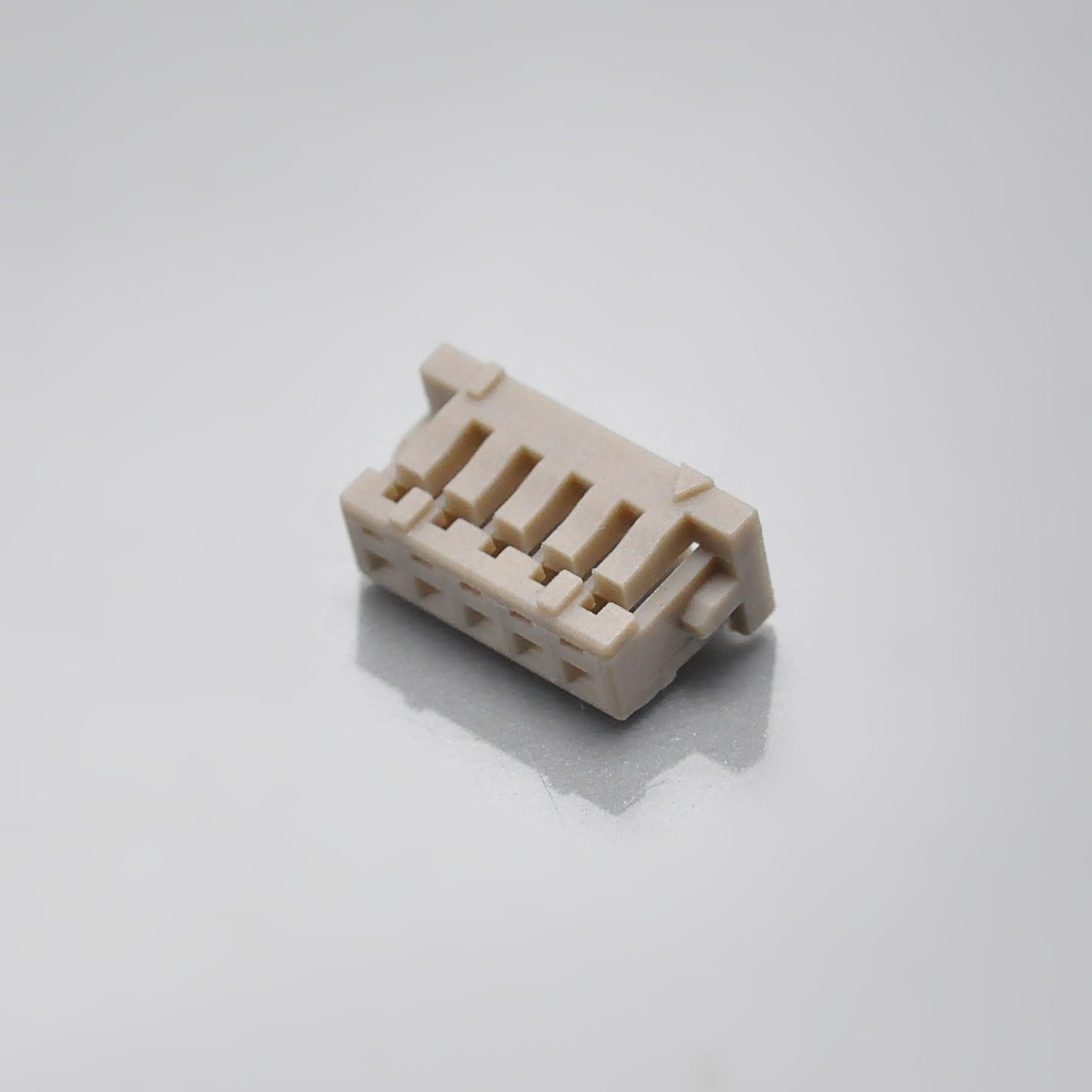

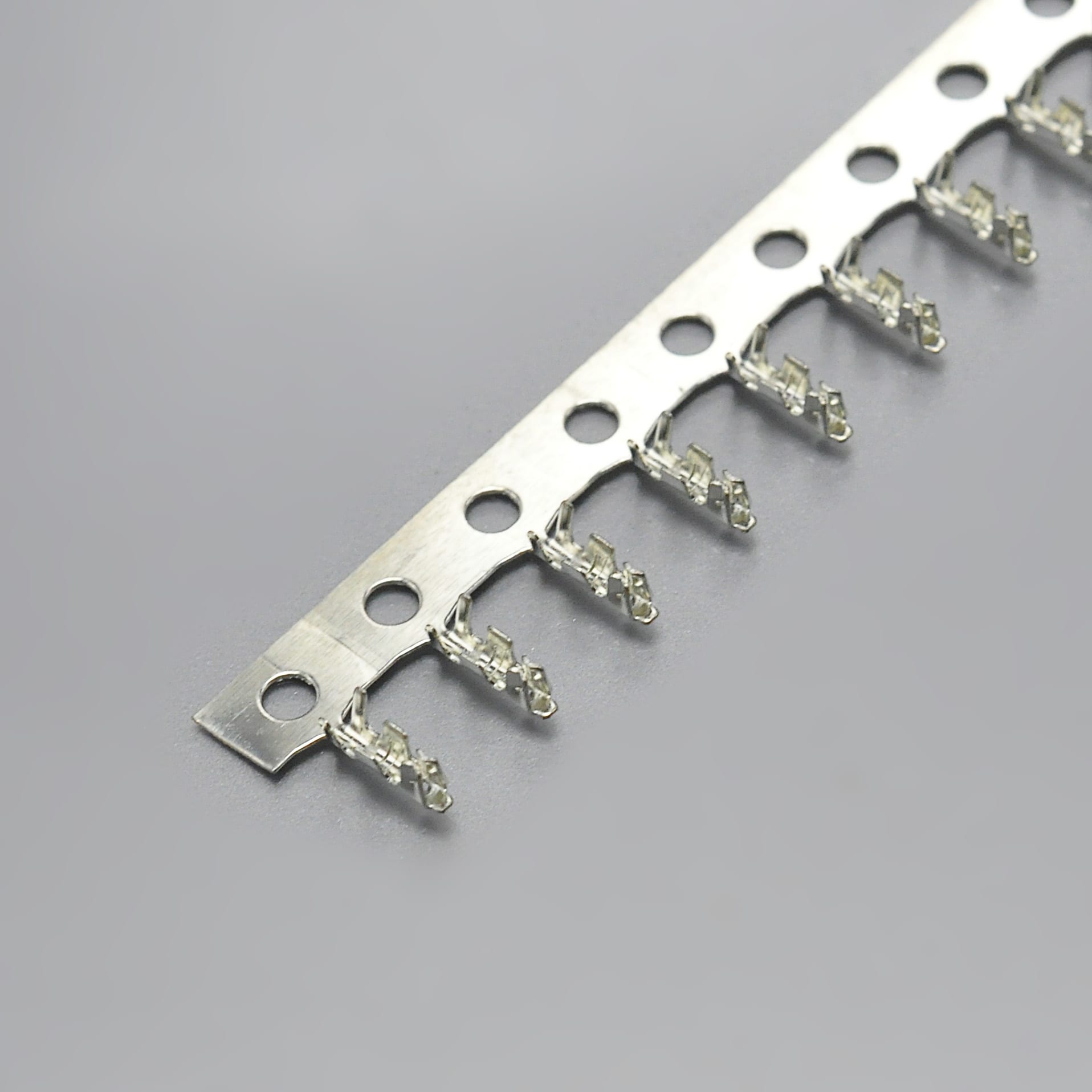

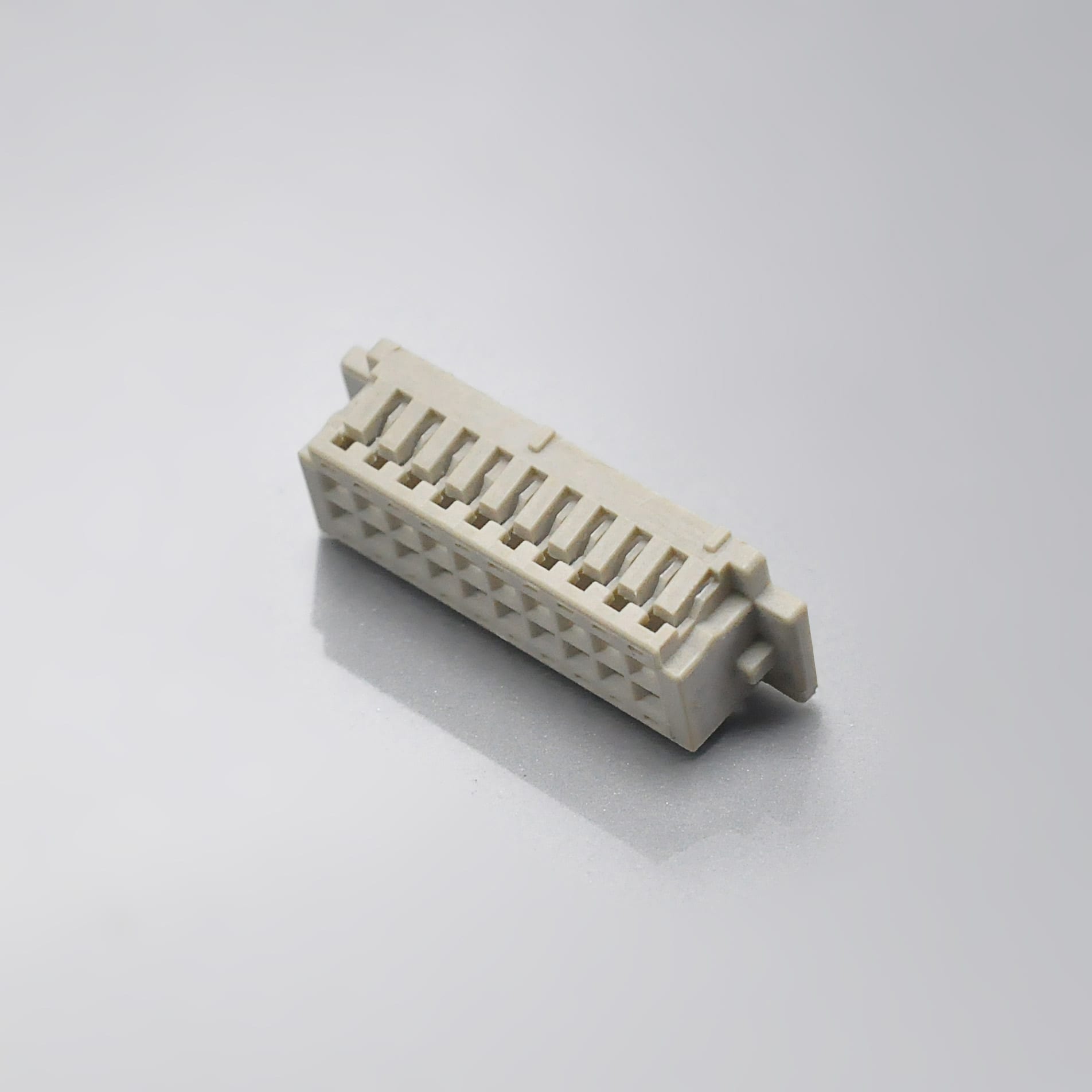

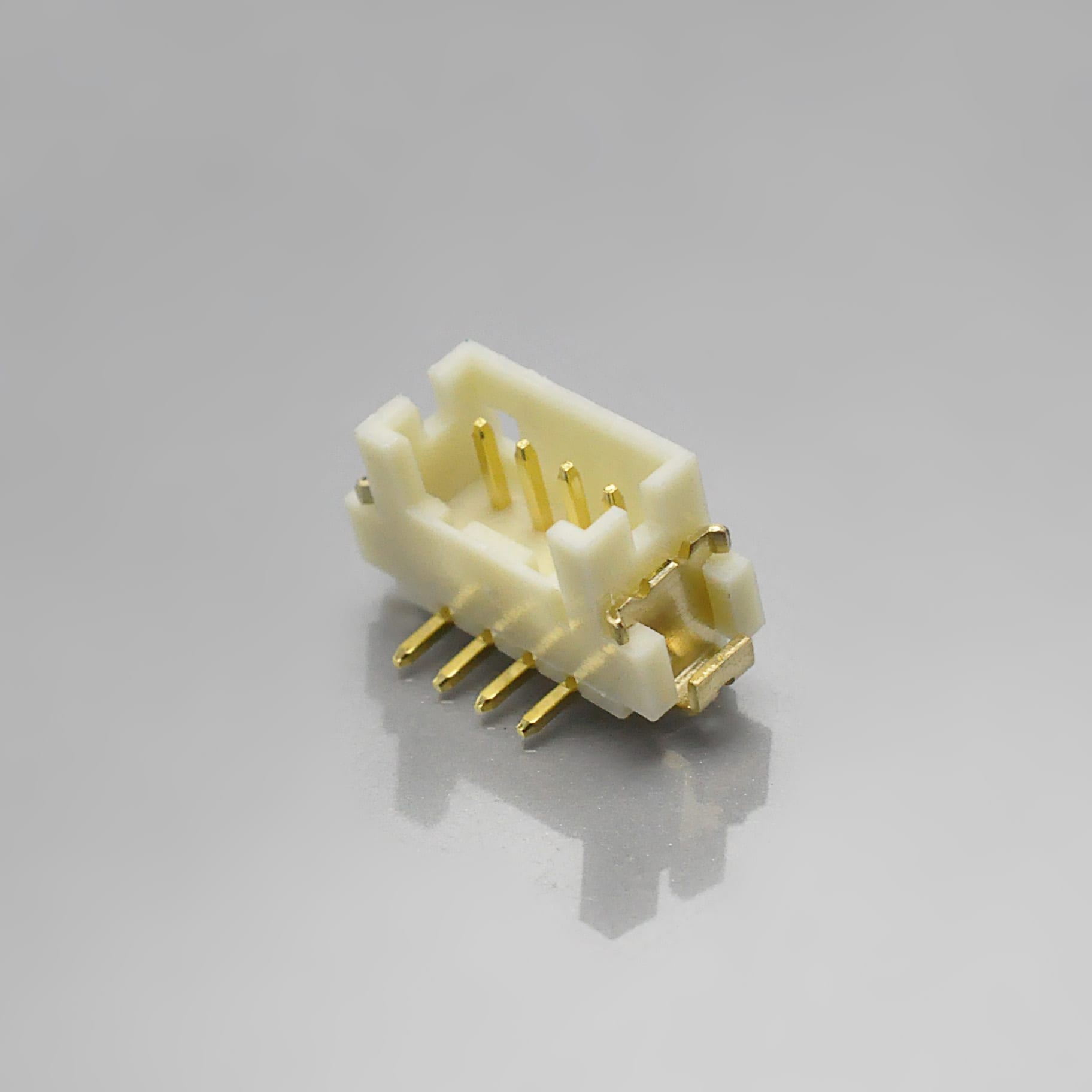

Product photos
- Series: KR1256
- Pitch: 1.25mm
- Wire-to-Board Connector
- Equivalent to Hirose
- Pitch
- 1.25mm
- Circuits
- 2-15pin/2*5-2*20pin
- Current
- 1A
- Voltage
- 150V
DF13 connector, SMT Wafer and DIP Wafer, DF13 1.25mm pitch connector. Small size fits into tight installation spaces.
Specifications
| Pitch | 1.25mm |
|---|---|
| Circuits | 2-15pin/ |
| Current | 1A |
| Voltage | 150V |
| Material | PA66/ |
|---|---|
| Insulation O.D | 1.0mm Max |
| Withstanding Voltage | 500V AC/ |
| Temperature Range | -40℃～+105℃ |
| Contact Resistance | 30mΩ Max |
| Insulation Resistance | 500MΩ Min |
| Product Plating | Gold flash/ |
Description
The KR1256 series connector is an excellent miniature crimp connector. Its 1.25mm pin pitch design makes it compact and space-saving, which is especially suitable for high-density circuit board layout. As a multi-contact connector, the KR1256 not only supports automatic mounting to improve productivity, but also its unique anti-skew box structure effectively avoids mis-insertion problems and ensures the accuracy of the connection.
In addition, the KR1256 series connectors also introduce a friction locking mechanism, an innovative design that significantly enhances the robustness of the mating connection and maintains a stable connection even under vibration or shock environments. In order to meet the needs of different applications, the KR1256 series offers a variety of pin count options, including single-row and dual-row layouts, suitable for industrial equipment, servers, medical products and other applications.
The KR1256 series connectors strictly comply with UL safety regulations, ISO quality management and RoHS environmental standards to ensure product safety, reliability and environmental protection. Whether in performance or quality, KR1256 series connectors show excellent strength and are a reliable connector product.
The compact design of the KR1256 series connectors enables more connections to be made in limited board space.
A variety of mounting options are available, either straight through or at right angles, for easy mounting to the board.
Precise crimping and superior electrical performance ensure the reliability and durability of the connectors.
The ability to operate over a wide temperature range allows the KR1256 series connectors to adapt to a variety of complex environments.
In summary, the KR1256 series connectors have become an excellent choice in the field of electronic connectivity due to their features and advantages such as miniaturisation, multiple varieties, high-precision crimping, superior electrical performance and wide temperature operating range.
Features
- Space saving
- Easy Installation
- Stable Electrical Performance
- Environmental Adaptability
