KR1259 Series GH Electronic Connector with Lock

Description

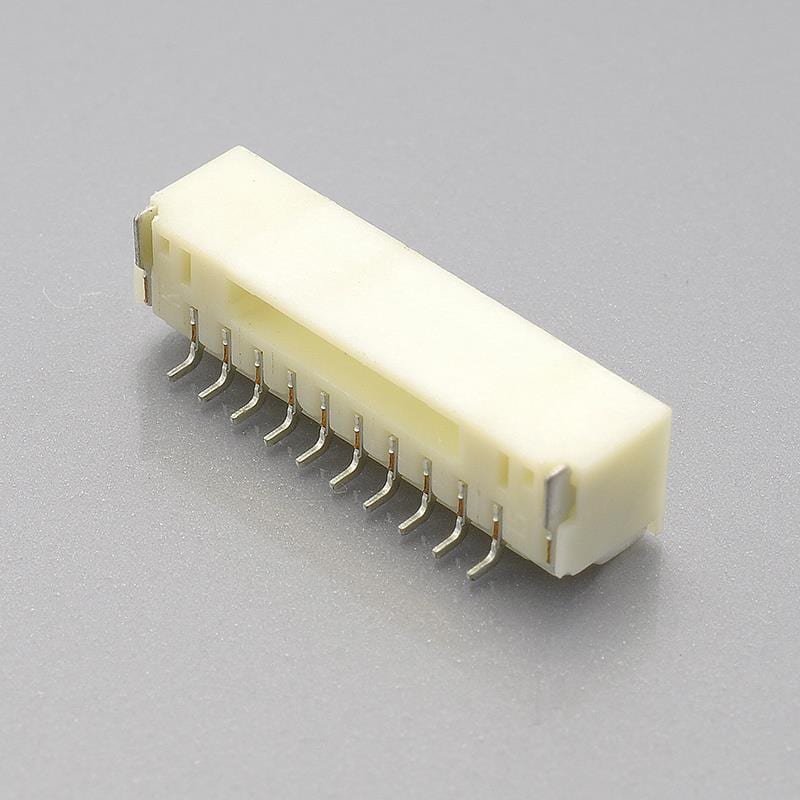

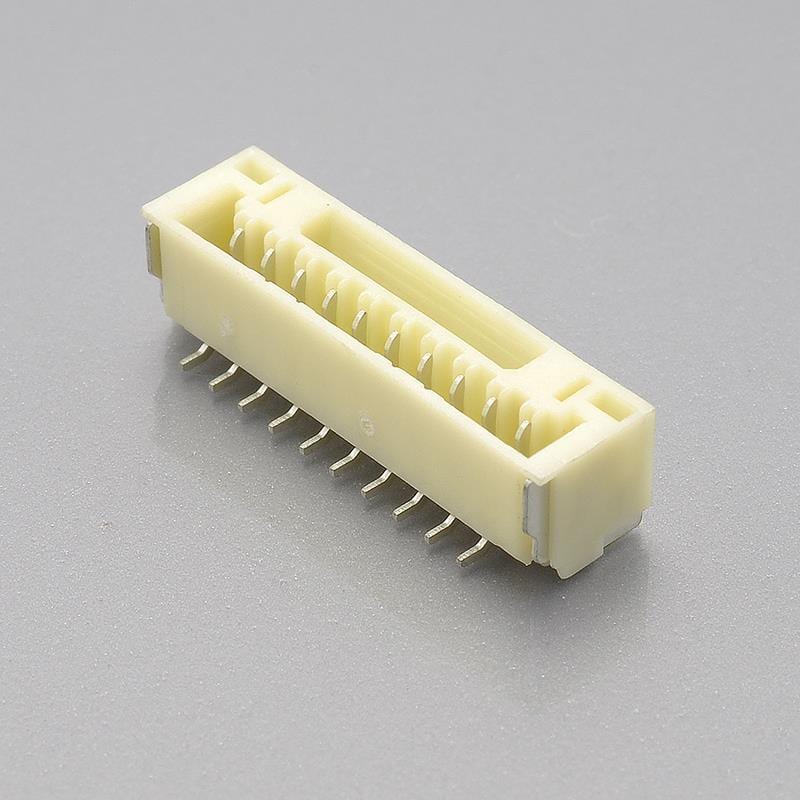

The KR1259 series connector is a miniaturized, lightweight wire-to-board connector designed for electronic devices. It is widely used in drones, video cameras, cellular phones, medical devices, home appliances, and other applications due to its miniaturized design, high reliability, multiple pin options, and ease of installation and removal.

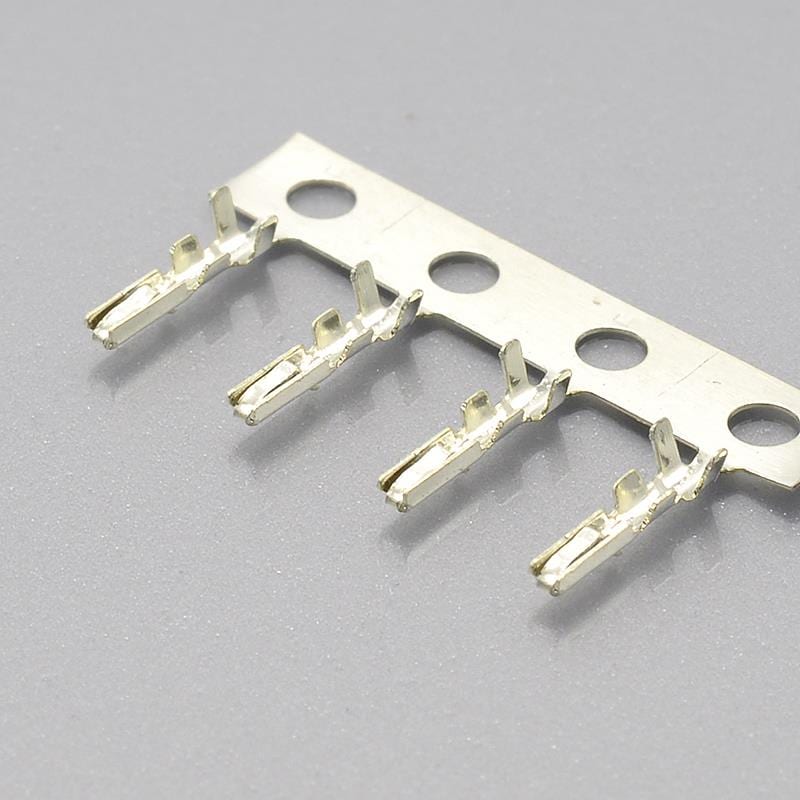

The KR1259 series connectors have a rated current of 1.0A AC/DC (when using AWG#26), a rated voltage of 50V AC/DC, are suitable for wires with conductor sizes AWG#30~#26, and maintain stable performance over a temperature range of -40℃~+105℃. In addition, its unique strong locking structure, terminal locking construction and light and fast snap-in feeling of connecting and plugging provide users with a more convenient and safer operation experience.

In microelectronic systems that pursue high performance and compact design, the 1.0mm pitch is undoubtedly the best choice. Not only does it have an absolute advantage in terms of size, but its square corners and robust structure also ensure stability and shock resistance in high-density integration.

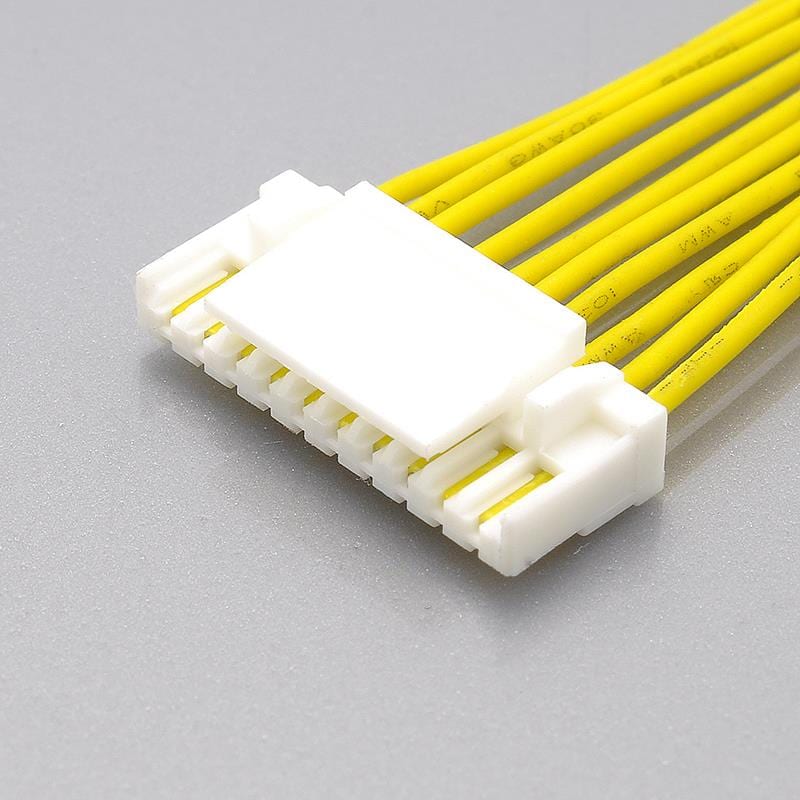

The 1.0mm pitch connector shows great adaptability, it can serve as a power contact, a signal contact, or even a power and signal contact or a signal and ground contact at the same time. Through the harness, it can easily connect printed circuit boards to various components that send signals and power to other electronic devices, meeting the diverse contact needs of the system.

For safety, we have adopted a bonded metal conduit and multiple grounding point design. This innovative design effectively prevents fire hazards, component damage, overheating, and possible risk of electric shock, providing all-around safety for the system and ensuring stable operation and excellent performance.

Strictly complying with RoHS standards, the product does not contain harmful chemical substances inside that exceed RoHS restricted concentrations. This means that the connector can be safely and stably processed at the high temperatures required for lead-free soldering during manufacturing, which not only complies with environmental requirements, but also ensures the reliability and durability of the product.
