KR1506 Series GH 1.5mm Wire to Board Connector
KR1506 — Pitch 1.50mm · Circuits 2-6pin · Current 1A · Voltage 50V
- Series: KR1506
- Pitch: 1.50mm
- Wire-to-Board Connector
- Pitch
- 1.50mm
- Circuits
- 2-6pin
- Current
- 1A
- Voltage
- 50V
GH connector, SMT Wafer, this low insertion force type connector realizes easier mating operation. The basic concept of the contact part of this connector is equivalent to the performance proven SHL connector.

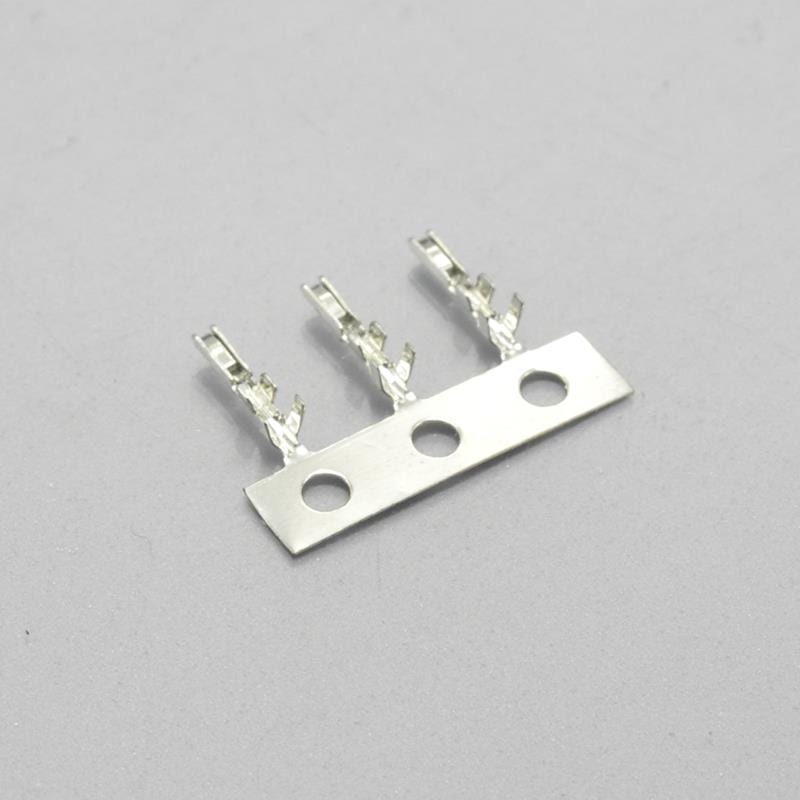

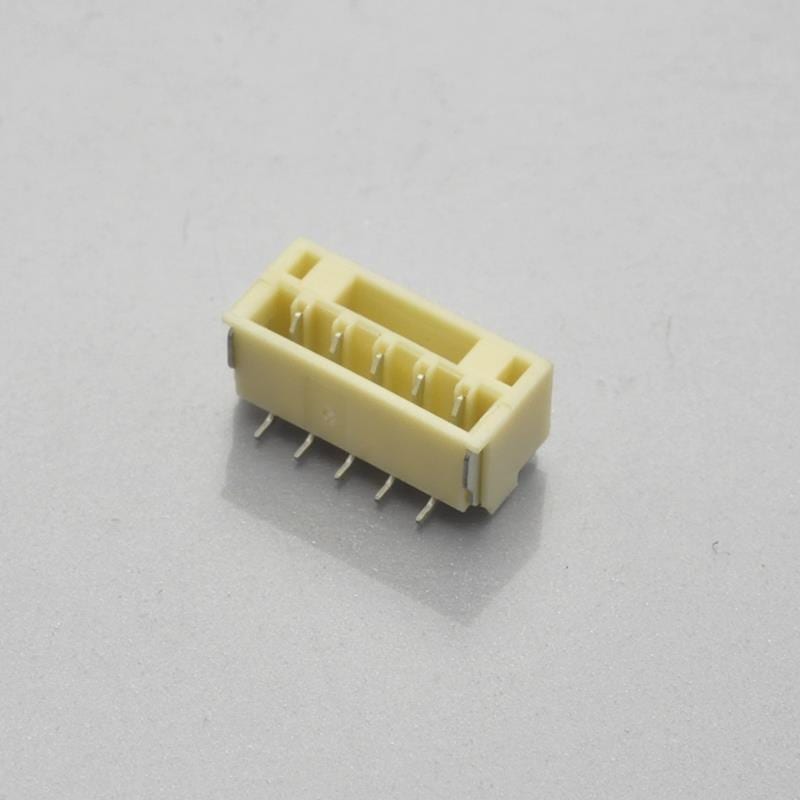

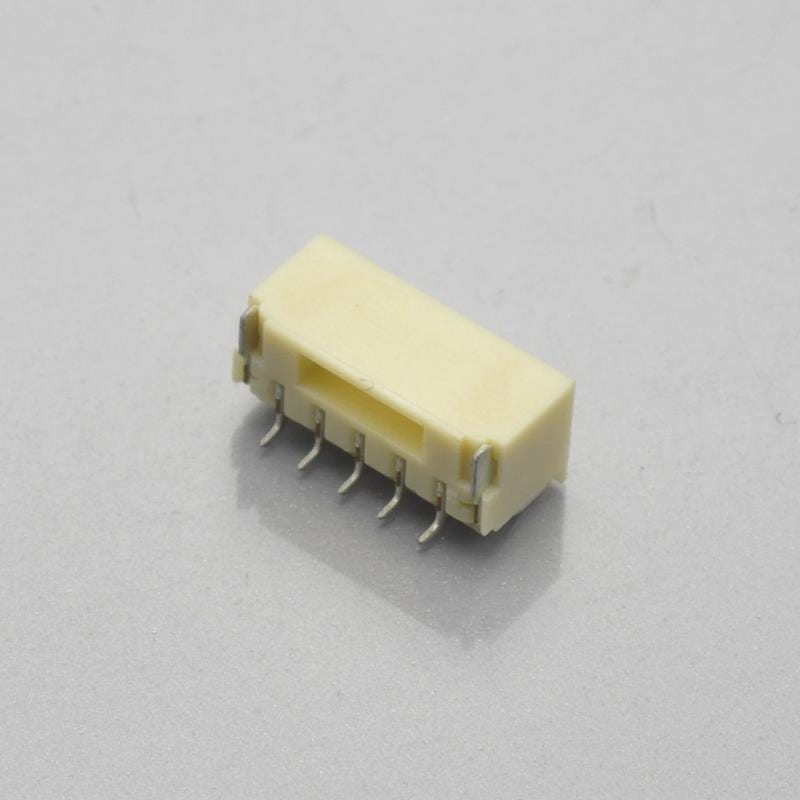

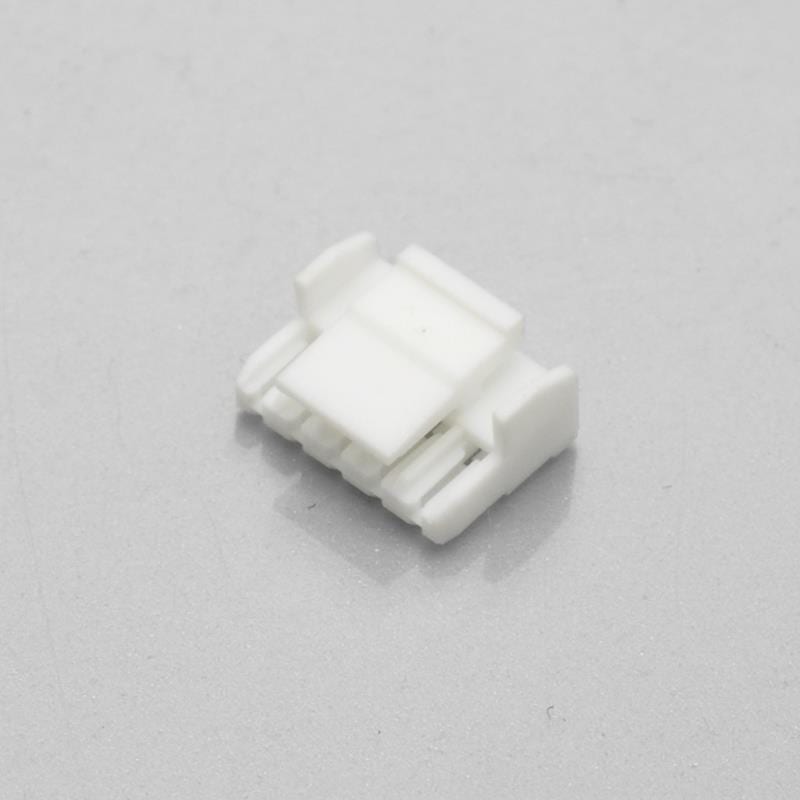

Product photos
Specifications
| Pitch | 1.50mm |
|---|---|
| Circuits | 2-6pin |
| Current | 1A |
| Voltage | 50V |
| Material | PA66/ |
|---|---|
| Insulation O.D | 1.0mm Max |
| Withstanding Voltage | 500V AC/ |
| Temperature Range | -40℃～+105℃ |
| Contact Resistance | 30mΩ Max |
| Insulation Resistance | 100MΩ Min |
| Product Plating | Tin over Nickel |
Description
The KR1506 series connector is a reliable, high-performance, high-quality electronic connector that is widely used in electronic equipment, communication equipment, and industrial applications. The KR1506 series connector adopts a reliable plug-in design and is suitable for high-frequency connections. They have a compact shape and highly reliable connection performance. The KR1506 series connector is commonly used in electronic equipment, automobiles, wireless communications, industrial automation, medical equipment and other fields. They play an important role in connecting circuit boards, sensors, power supplies, LED lights, etc. Connectors are available in different specifications and models, including plugs and sockets. They usually have different pin counts and arrangements to suit different application requirements.
KR1506 series connectors are made of high-quality materials to ensure long-term stable connections. They are rigorously tested and suitable for a variety of environments and applications.
KR1506 series connectors are small in size and suitable for applications with limited space. This makes them very popular in electronic devices, automobiles, and industrial equipment.
KR1506 series connectors are designed for frequent plugging and unplugging without affecting the connection performance. This is very important for applications that require frequent maintenance or replacement of parts.
Features
- Reliability
- Compact Design
- High Frequency Plugging and Unplugging
