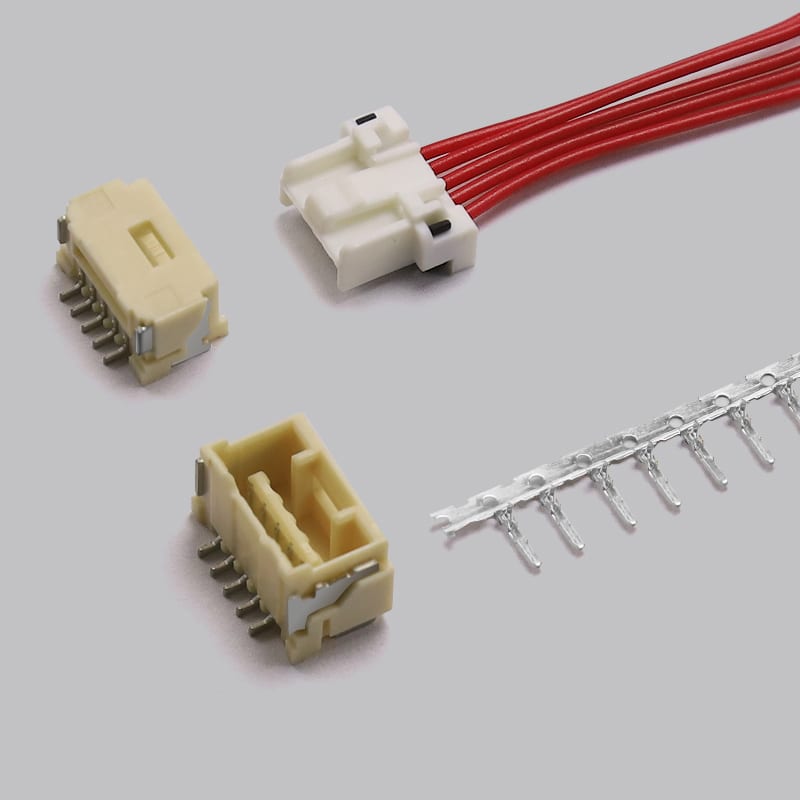

KR1511 Series 1.50mm Pitch Single Row Wire to Board Connector

Description

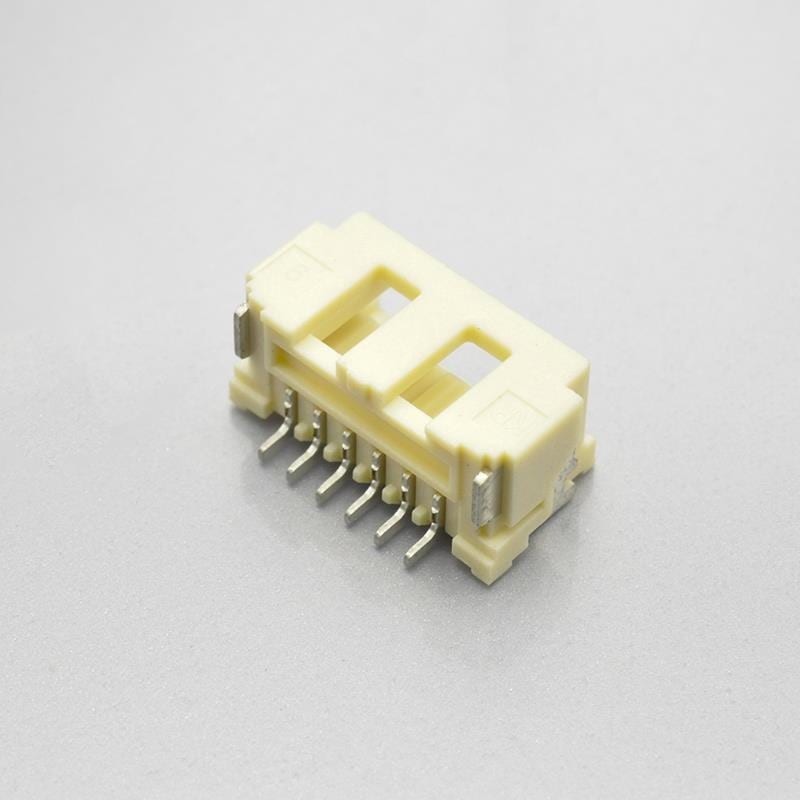

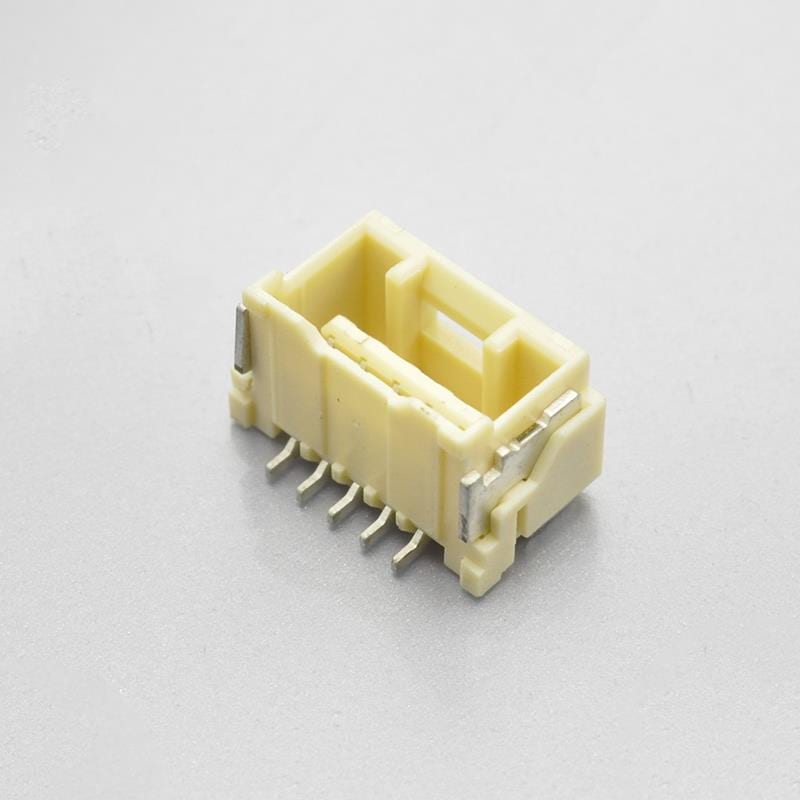

KR1511 is a Wire-to-Board connector designed to enhance product reliability with 1.5mm pitch, single row, SMT, supporting 2-15 circuits and innovative integrated TPA technology. Its rated voltage covers 100V AC/DC, rated current ranges from 1A-3A, and it is suitable for wide temperature environments from -40°C to +125°C. With low contact impedance (≤20mΩ), strong terminal retention (≥19.6N), and a wide range of conductor compatibility (AWG#24-#28), the KR1511 is ideal for high-performance, high-stability in-vehicle electronic systems.

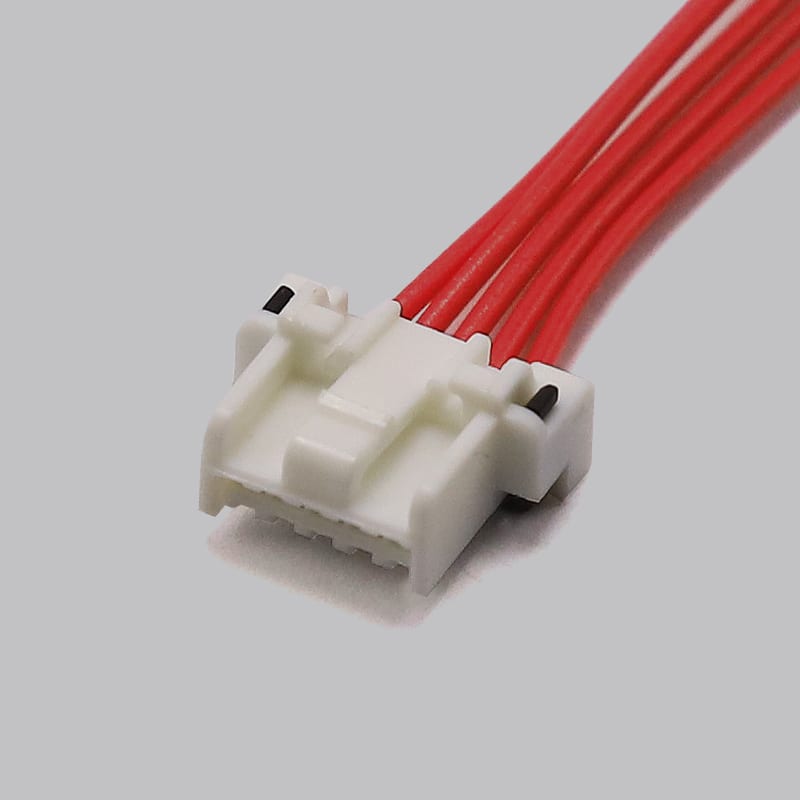

Compared with traditional connectors without TPA, KR1511 integrates TPA, which significantly improves the safety and reliability of the product, making it more suitable for high standard applications such as automotive grade.

Supporting a wide temperature operating environment from -40℃ to +125℃, ensuring stable operation under various extreme climatic conditions and meeting the high requirements of automotive electronic systems.

With low contact impedance (≤20mΩ), it can effectively reduce signal attenuation and heat generation, while supporting 1A-3A rated current to meet a variety of current requirements.

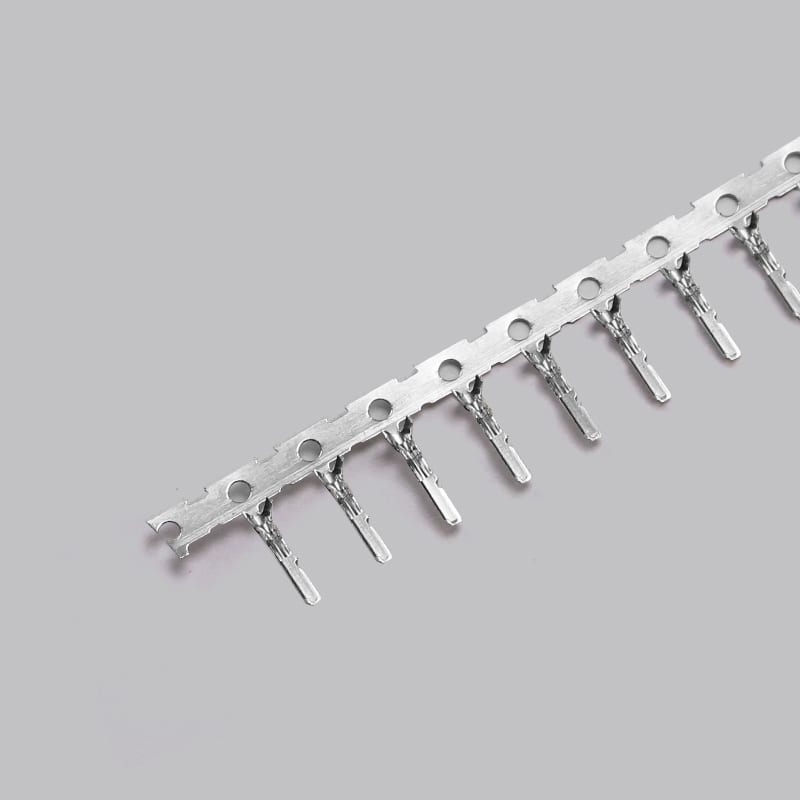

Supports AWG#24-#28 conductor specifications and 0.78-1.28mm insulation OD, providing wide compatibility and easy to use with different specifications and types of cables.

The connectors are widely used in automotive (including lights, Homelink modules, interior mirrors, telematics and tracking modules), medical technology (such as blood glucose meters, infusion pumps, patient monitors, and other medical equipment), and industrial automation (covering fixed and hand-held scanners, industrial network modules, weighing equipment, smart meters, and more) and many other fields with their excellent performance.
