KR2555 Series 2.54mm Pitch SFH 2Pin DIP Type Right Angle Wafer Wire to Board Connector

Name: KR2555 Series 2.54mm Pitch SFH 2Pin DIP Type Right Angle Wafer Wire to Board Connector
Brand: Konnra
SKU: KR2555

KR2555 — Pitch 2.54mm · Circuits 2 Pin · Current 3A · Voltage 250V

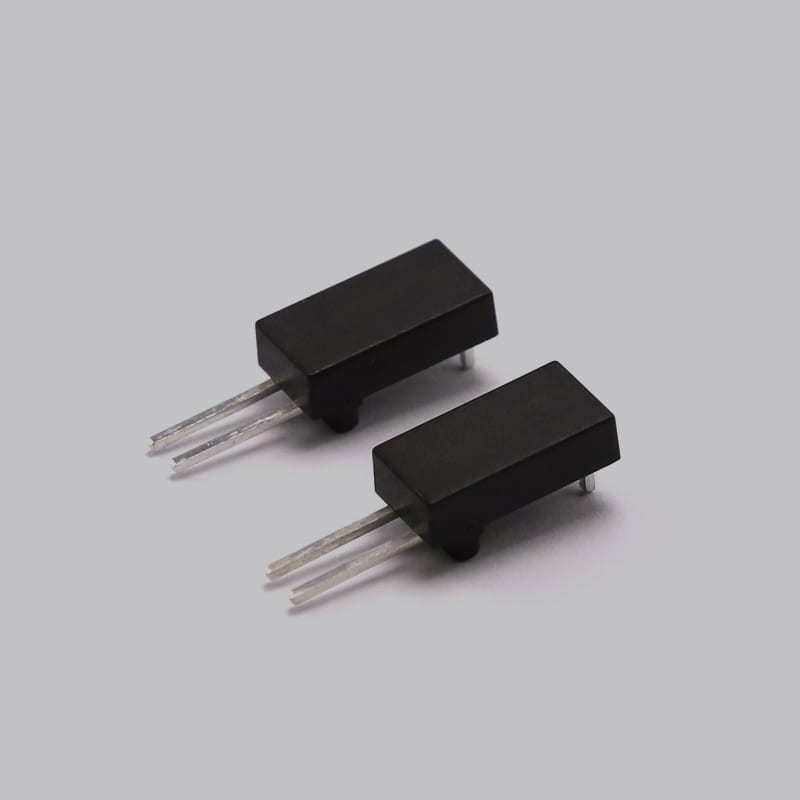

KR2555 Series 2.54mm Pitch SFH 2Pin DIP Type Right Angle Wafer Wire to Board Connector (1/6)

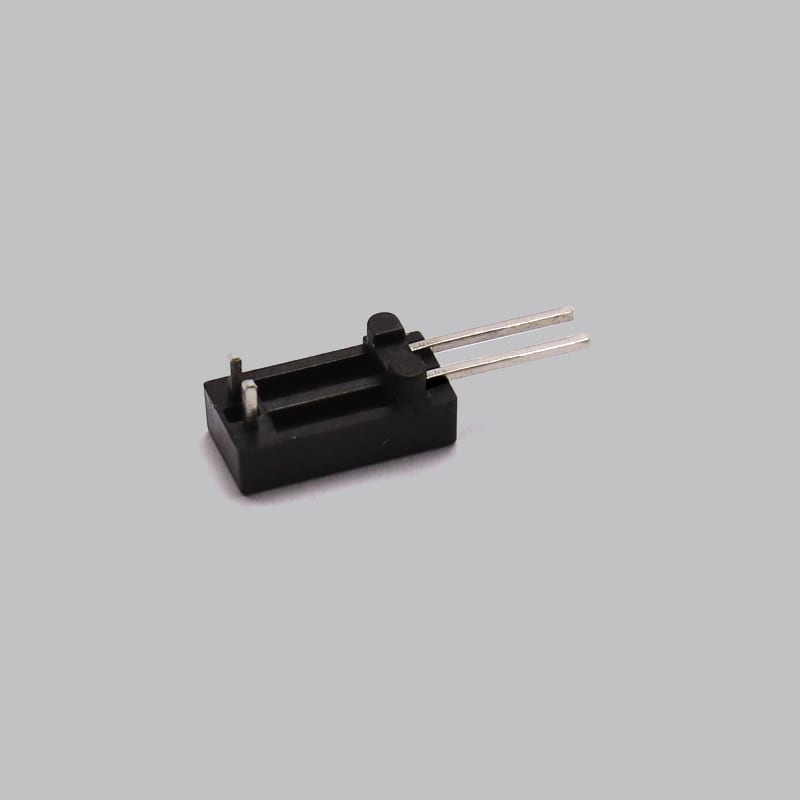

KR2555 Series 2.54mm Pitch SFH 2Pin DIP Type Right Angle Wafer Wire to Board Connector (2/6)

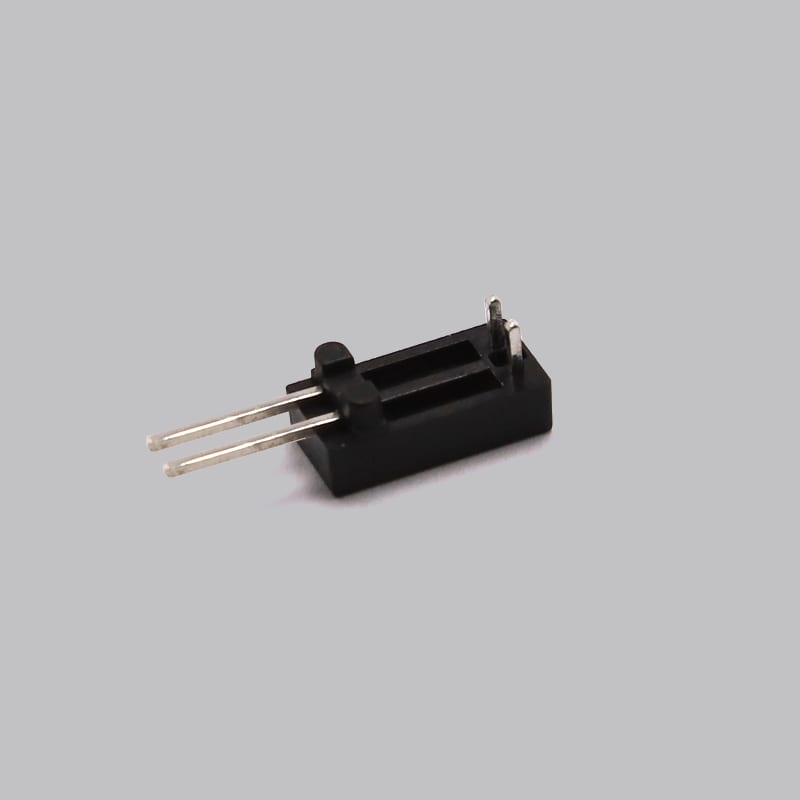

KR2555 Series 2.54mm Pitch SFH 2Pin DIP Type Right Angle Wafer Wire to Board Connector (3/6)

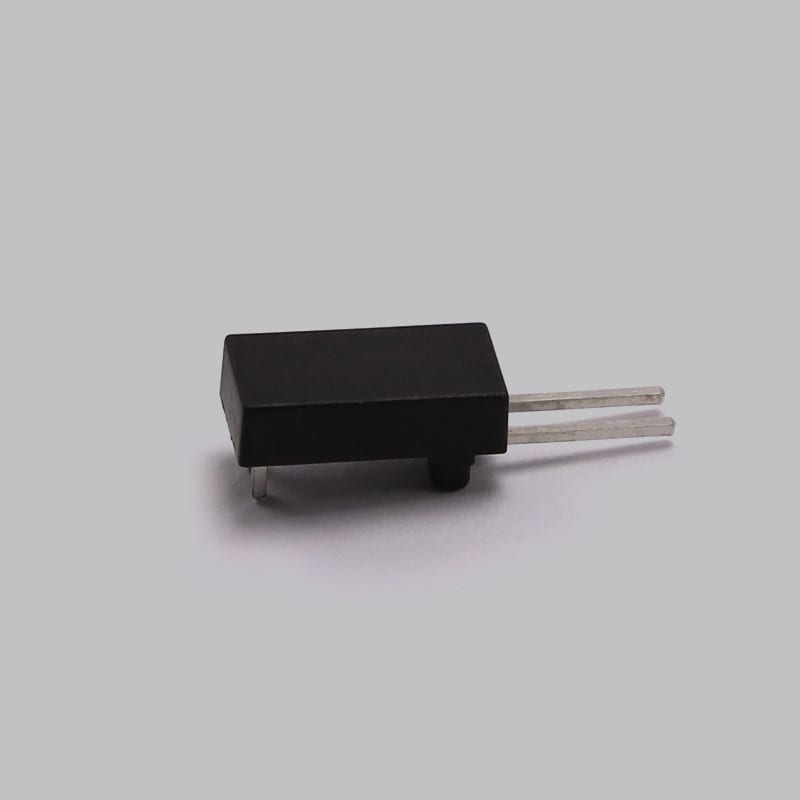

KR2555 Series 2.54mm Pitch SFH 2Pin DIP Type Right Angle Wafer Wire to Board Connector (4/6)

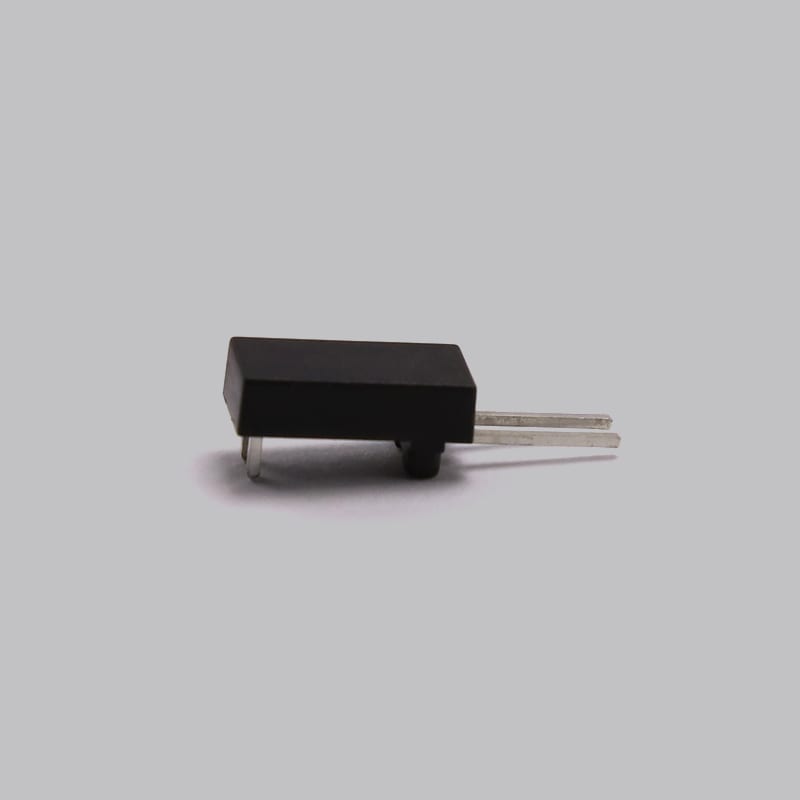

KR2555 Series 2.54mm Pitch SFH 2Pin DIP Type Right Angle Wafer Wire to Board Connector (5/6)

KR2555 Series 2.54mm Pitch SFH 2Pin DIP Type Right Angle Wafer Wire to Board Connector (6/6)

Pitch: 2.54mm
Circuits: 2 Pin
Current: 3A
Voltage: 250V

Wire to Board Connector, 2.54mm Pitch, 2 Pin, Single Row, DIP Type, Right-angle, Tin Plating, Black.

Request sample Engineering Drawing

Product photos

Specifications

Key specifications
Pitch	2.54mm
Circuits	2 Pin
Current	3A
Voltage	250V

General specification
Material	PA9T UL 94V-0/ C2680-EH
PIN Holding Force	50N Min
Withstanding Voltage	1000V AC/ minute
Temperature Range	-40℃～+125℃
Contact Resistance	10mΩ/max
Insulation Resistance	1000MΩ/ min
Product Plating	Bright Tin plated over Nickel

Description

KR2555 series connectors are made of PA9T black UL94V-0 body and C2680-EH alloy PIN pins with excellent electrical and mechanical properties. They support 3A AC/DC current and 250V AC/DC voltage with excellent insulation and contact resistance. Mechanically, the PIN pins have strong retention and bending resistance. Adapt to wide temperature range and pass 48 hours salt spray test, no deformation under lead-free wave soldering and slight salt spray corrosion of flat pins. RoHS compliant, environmentally friendly and reliable.

Supporting up to 3A AC/DC rated current and 250V AC/DC rated voltage, it also has high insulation impedance (>1000MΩ) and low contact impedance (≤10mΩ) to ensure the stability and safety of signal transmission.

PIN retention force reaches more than 50N, and the male end has strong bending force, which can withstand certain physical stresses, prolonging the service life and reducing connection failures due to vibration or misoperation.

The operating temperature range covers -40℃ to +125℃, meeting the needs of applications in extreme temperature environments. Demonstrates good corrosion resistance through 48-hour salt water spray test, ensuring stable operation in humid or corrosive environments. At the same time, it can maintain no deformation in the lead-free wave soldering process, adapting to the soldering process of the modern electronics manufacturing industry.

Comply with RoHS environmental requirements, using lead-free, halogen-free and other environmentally friendly materials to reduce environmental pollution, in line with the trend of green manufacturing.
