KR2028 Series Dual Row DIP Right Angle U Type Pin Header H=14.5
KR2028 — Pitch 2.00mm · Circuits 2*2-2*40pin · Current 2A
- Series: KR2028
- Pitch: 2.00mm
- Pin Header
- Pitch
- 2.00mm
- Circuits
- 2*2-2*40pin
- Current
- 2A
DIP Type, dual row, Pin Header

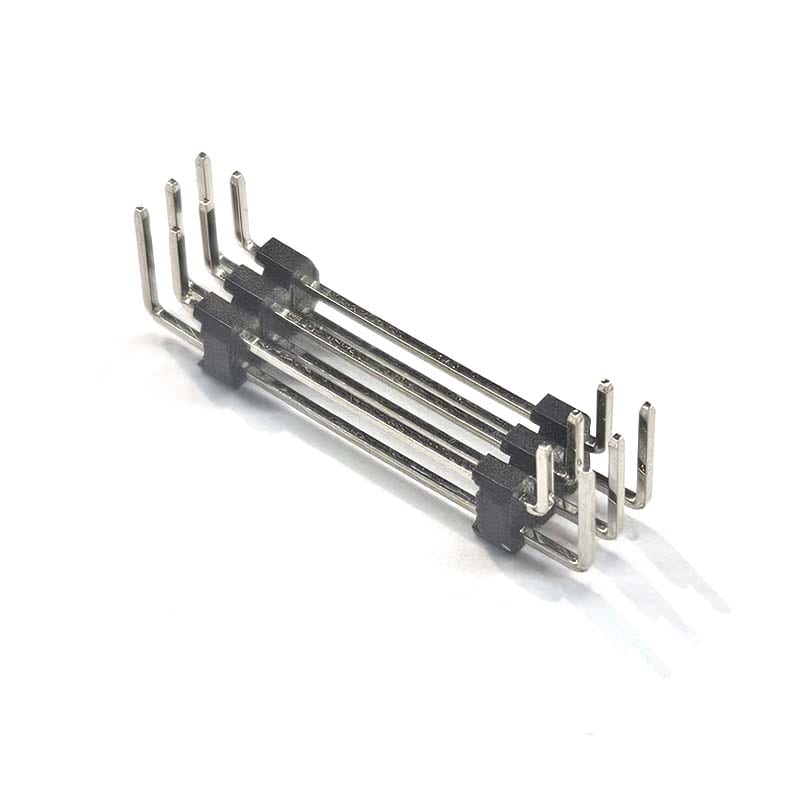

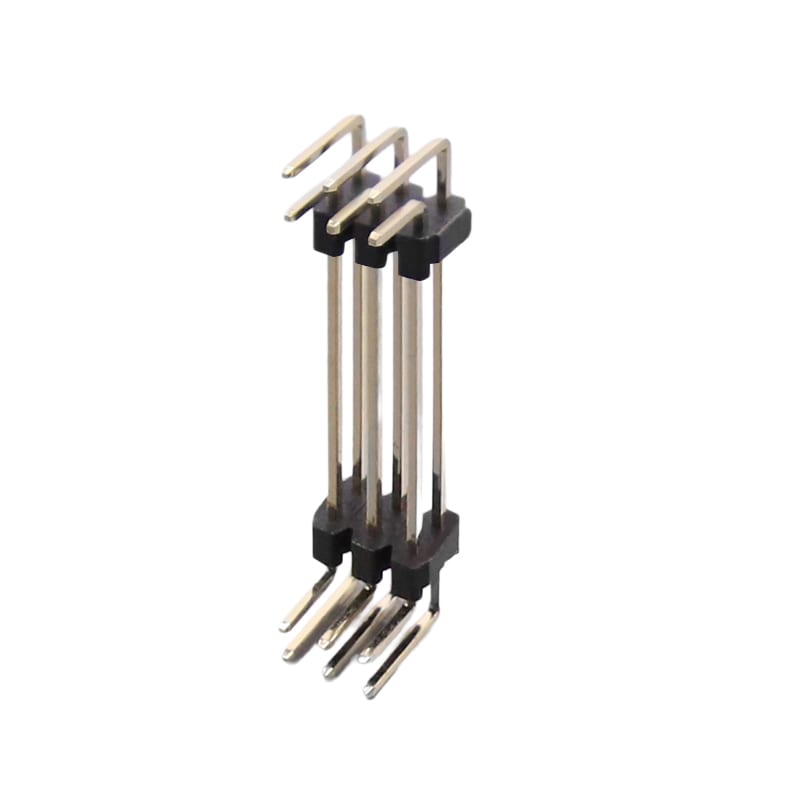

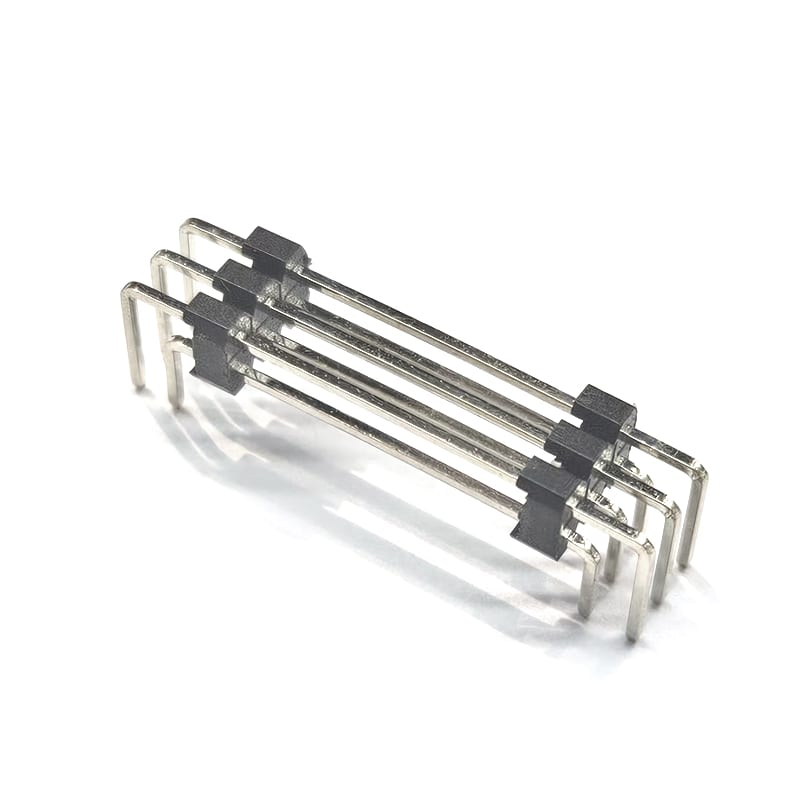

Product photos
Specifications
| Pitch | 2.00mm |
|---|---|
| Circuits | 2*2-2*40pin |
| Current | 2A |
| Type | Pin Header |
| Material | PA6T/ |
|---|---|
| Withstanding Voltage | 500V AC/ |
| Temperature Range | -40℃～+105℃ |
| Contact Resistance | 20mΩ/ |
| Insulation Resistance | 1000MΩ/ |
| Product Plating | Gold flash |
Description
KR2028 Series Dual Row DIP Right Angle U Type Pin Header (H=14.5) is a DIP type connector with a dual row, right angle, U-shaped pin design. Its pin pitch is 2.00 mm and it is available with 4 to 80 pins. The rated current is 2A and the materials include PA6T/UL94V-0 grade plastic and brass. The product surface is gold plated.
Dual row pin headers provide more connection points in a limited space, suitable for high-density circuit board layout.
Right-angle pin headers are convenient for vertical connection with the circuit board, saving space and improving connection stability.
Brass pins have good conductivity and corrosion resistance.
Gold plating on the metal surface helps reduce contact resistance and improve signal transmission quality.
Features
- Compact design
- Right-angle design
- Metal material
- Surface gold plating
