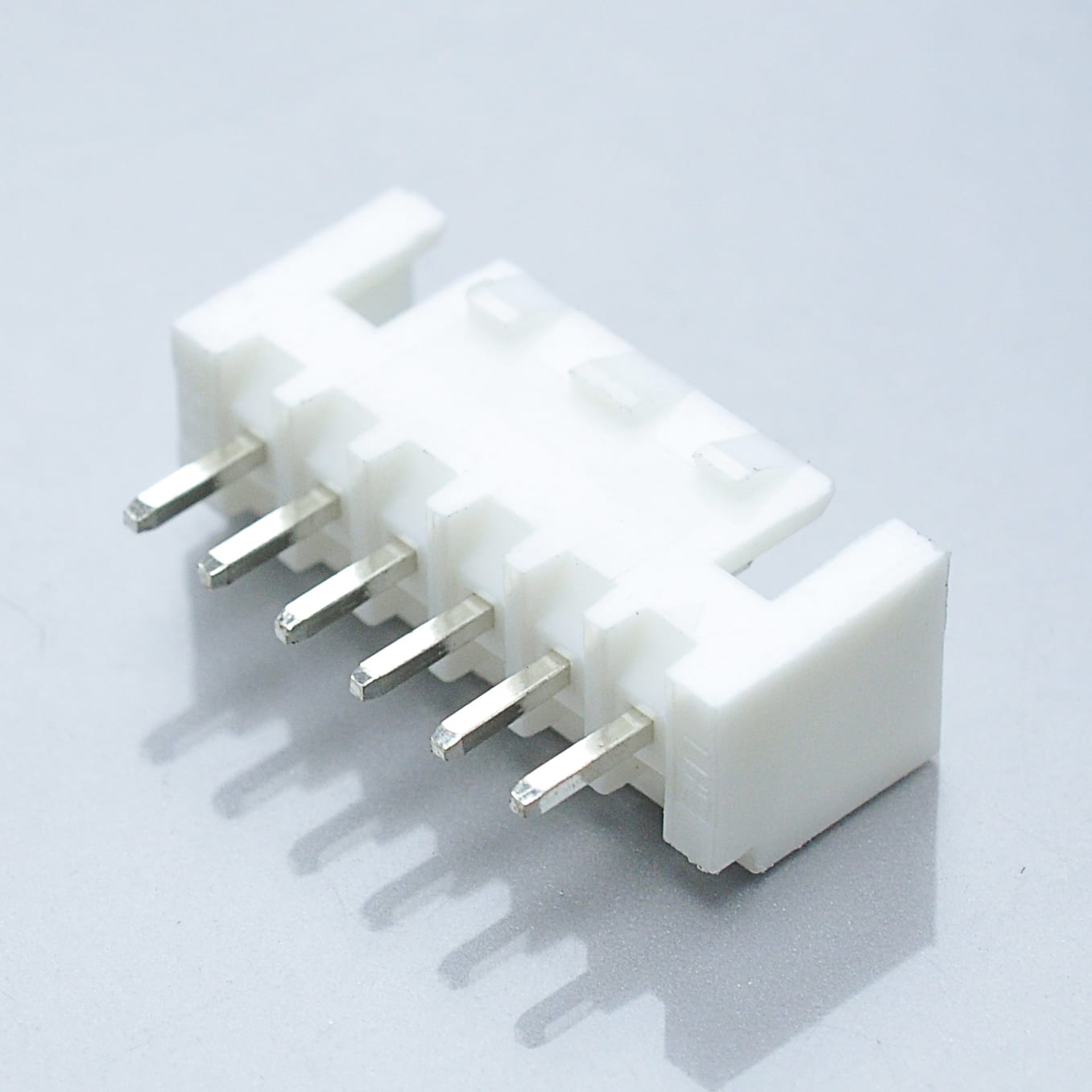

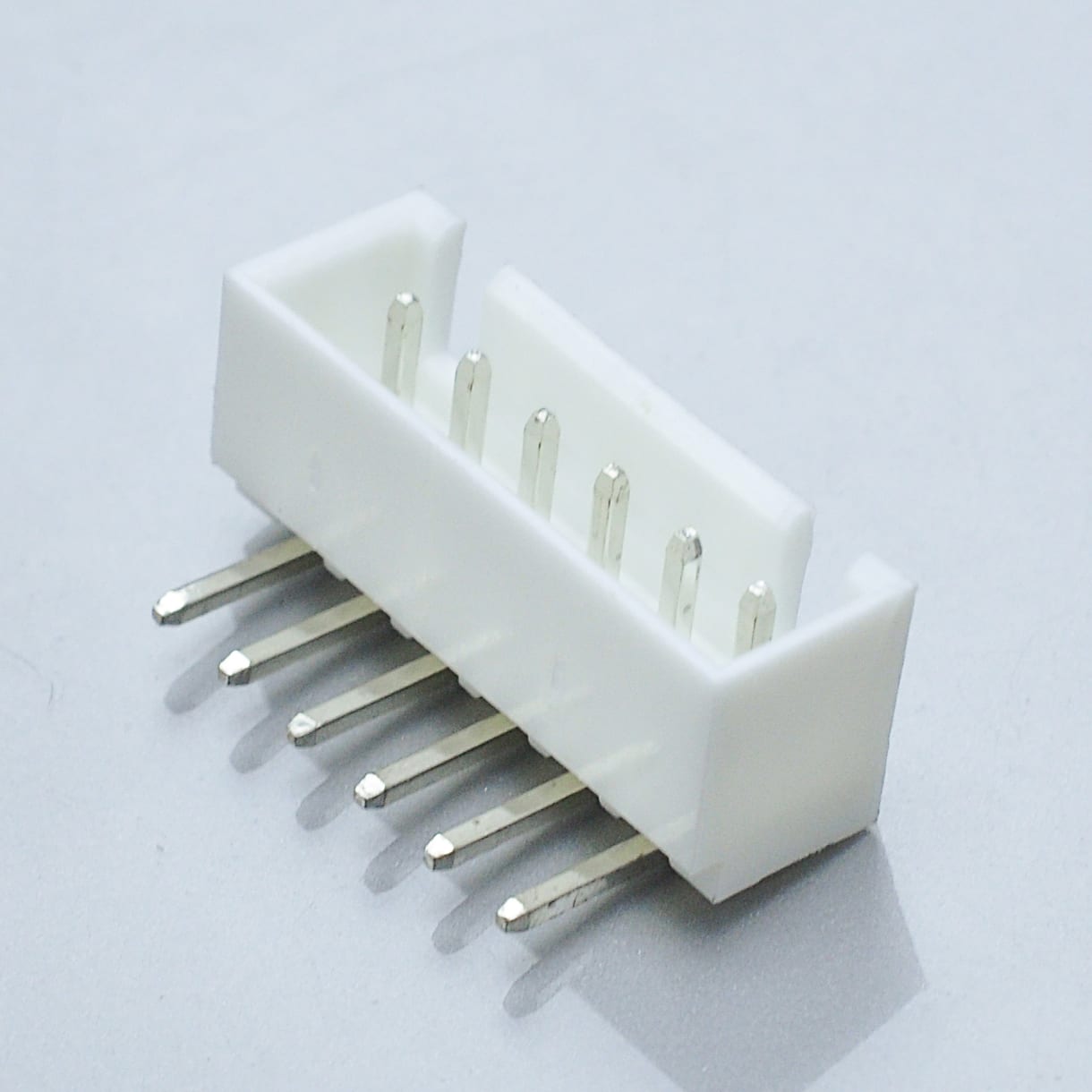

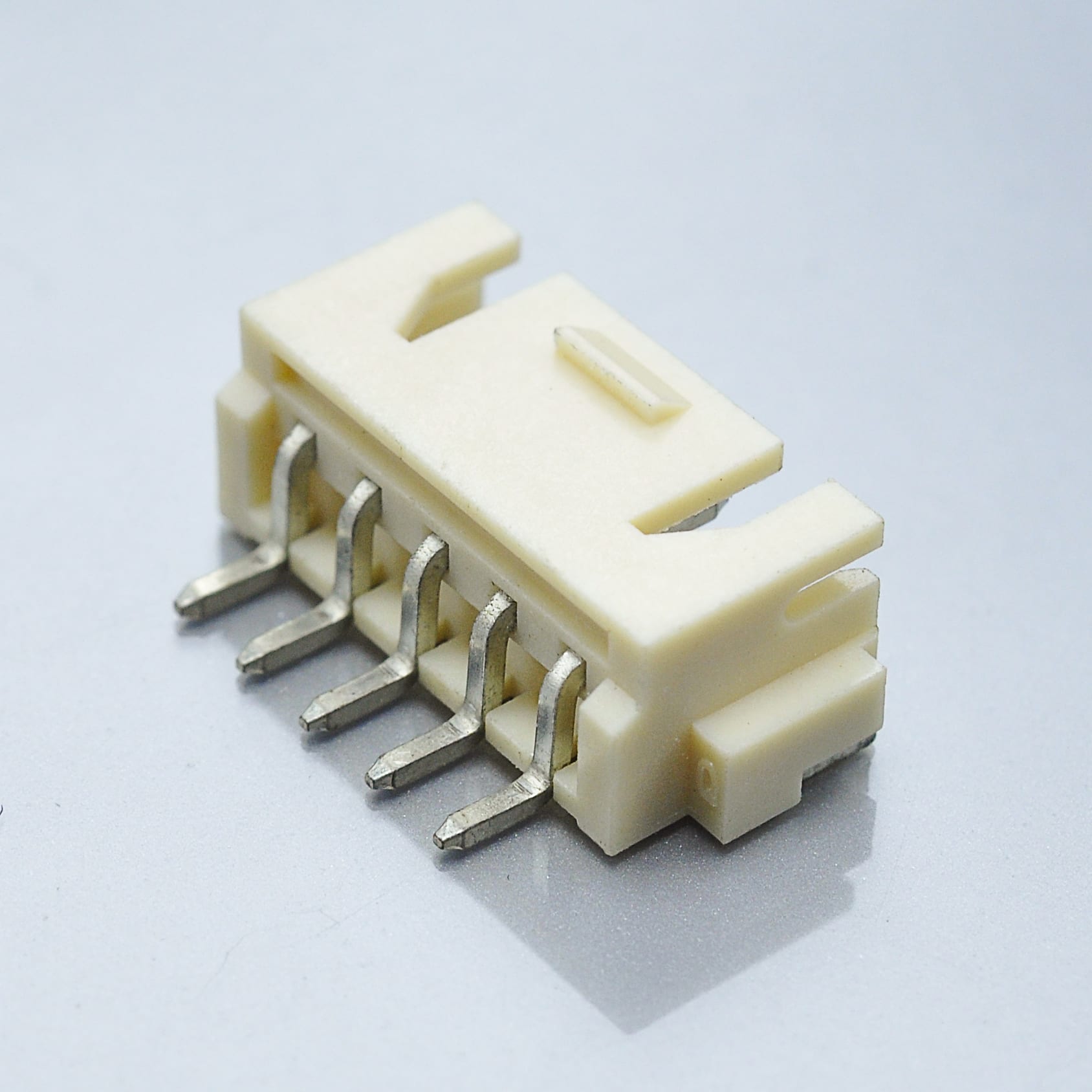

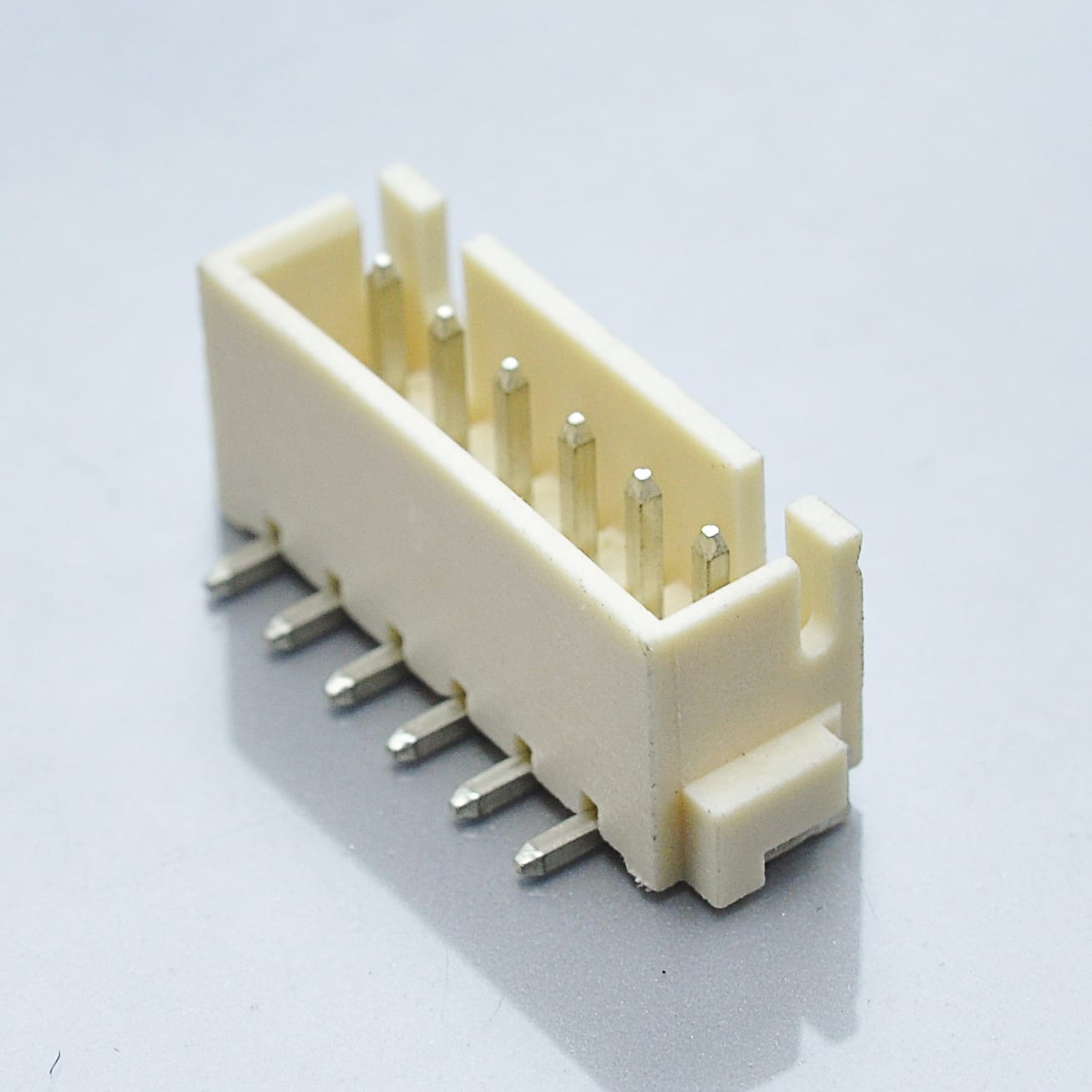

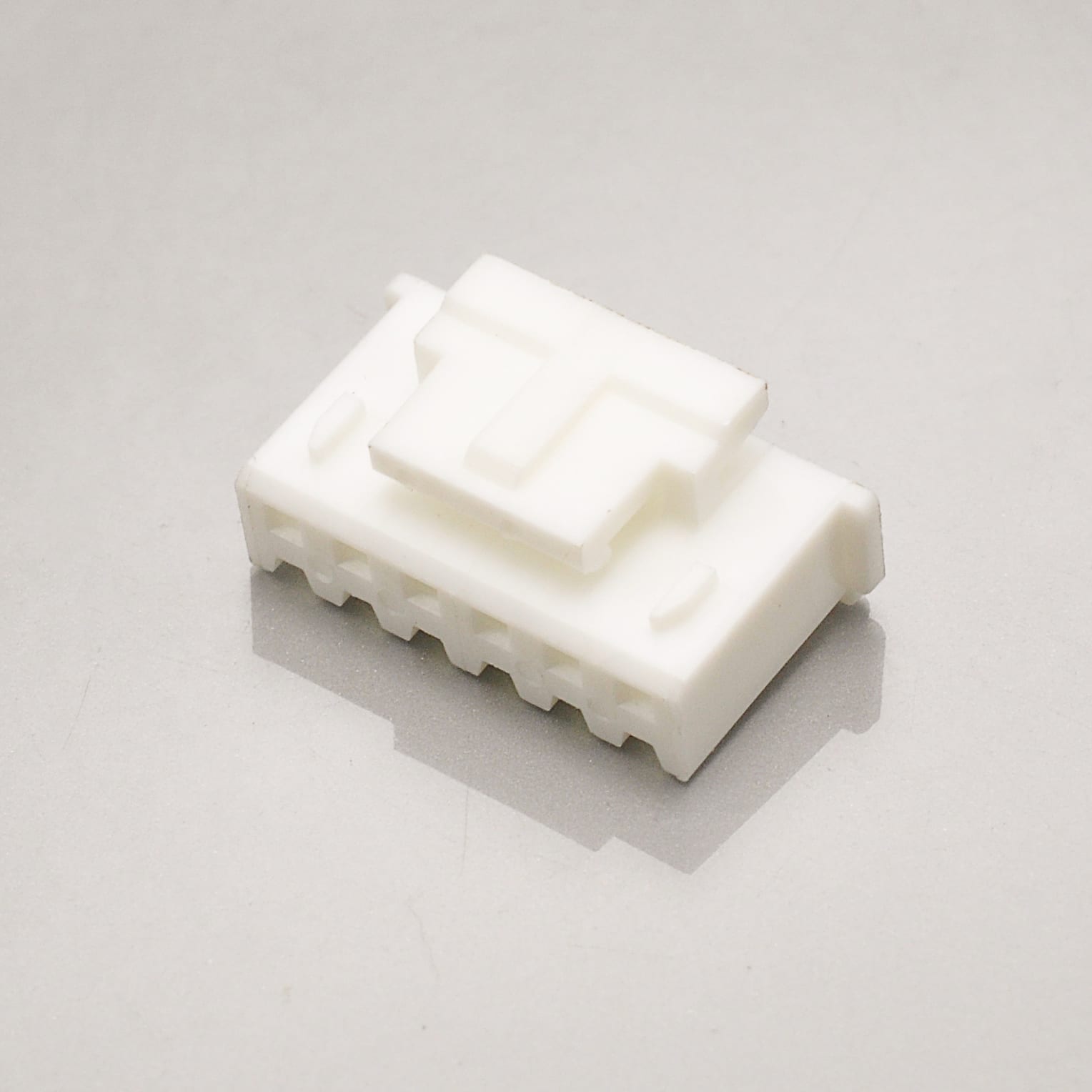

KR2502 Series YH 2.5 Wire to Board Connector with Lock

Description

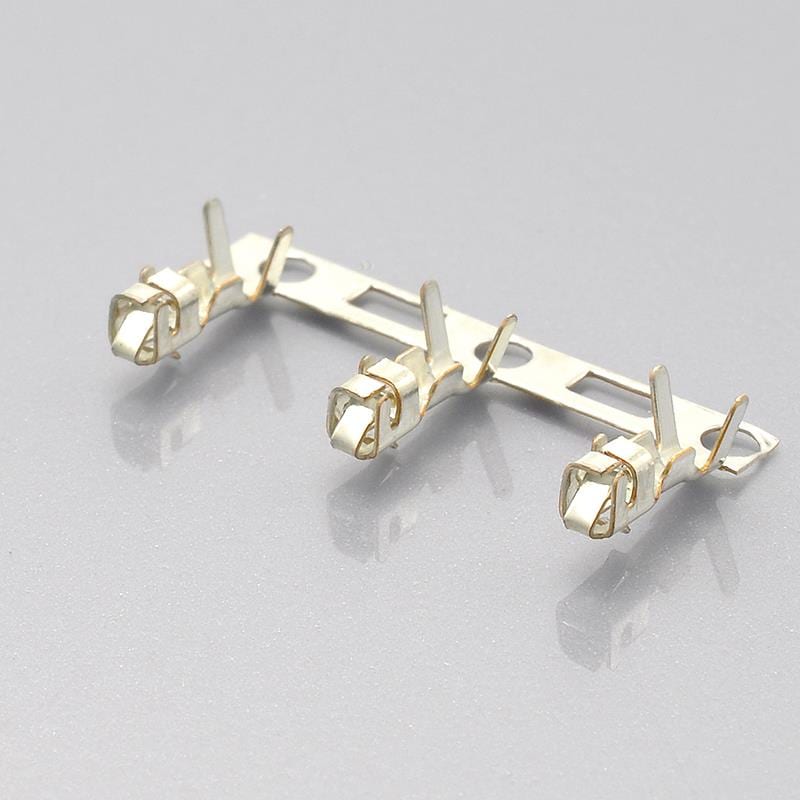

The KR2502 series connector is a high-performance electronic connector used in a wide range of applications. It has a 2.5mm pitch lift-off cover type board-to-wire connector for on-board electrical appliances. The connector features single row, snap-in, direct insertion (DIP), and riveted connection, providing a reliable connection solution for automotive appliances, etc. With its four-point contact design, high conductive wall, and easy insertion and removal, the KR2502 series connector ensures good electrical reliability and ease of operation. In addition, the connector is equipped with mini-locks and crimp terminals to ensure that the terminals are fully locked in the correct position, effectively preventing poor contact and end-product failures.The mini-locks of the KR2502 series connectors can cover up to 6.00 mm PCB board potting heights to meet the needs of a wide range of application scenarios.

The miniaturized design with a 2.5mm pitch allows the connector to make efficient electrical connections in a limited space, meeting the space-compactness requirements of modern electronic devices.

The connector utilizes a four-point contact design to ensure the stability and reliability of current transmission. Meanwhile, the high conductive wall design can effectively prevent external interference and ensure the quality of signal transmission.

The connector adopts riveted connection to ensure a stable connection between the terminal and the connector, effectively preventing bad contact and terminal product failure.

KR2502 series connectors have an anti-wrong-insertion design to ensure the correct connection direction and reduce equipment damage caused by wrong insertion.

The product does not contain hazardous chemicals inside the product that exceed RoHS restricted concentrations. This means that the connector can be safely and stably processed at the high temperatures required for lead-free soldering during manufacturing, which not only complies with environmental requirements but also ensures product reliability and durability.

Suitable for a wide range of application scenarios, including in-vehicle appliances, industrial automation and other fields, with high versatility and adaptability.
