KR2556 Series MX23A Wire-to-Board Automotive Connectors
KR2556 — Pitch 2.50mm · Circuits 18/
- Series: KR2556
- Pitch: 2.50mm
- Automotive Connectors
- New Product
- Pitch
- 2.50mm
- Circuits
- 18/26/34P
- Current
- 3A AC, DC
- Voltage
- 1000V
KR2556 Series MX23A Wire-to-Board Connectors, Automotive Connectors, 2.50mm Pitch, Dual Row, 18/26/34 Circuits, suitable for all kinds of waterproof equipment, including cars, motorbikes and so on.

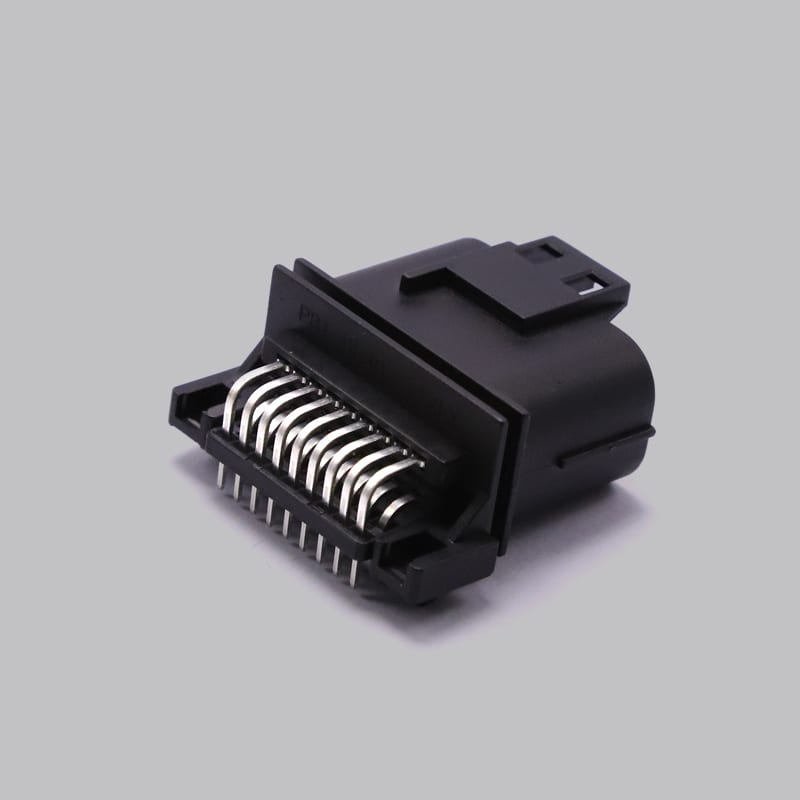

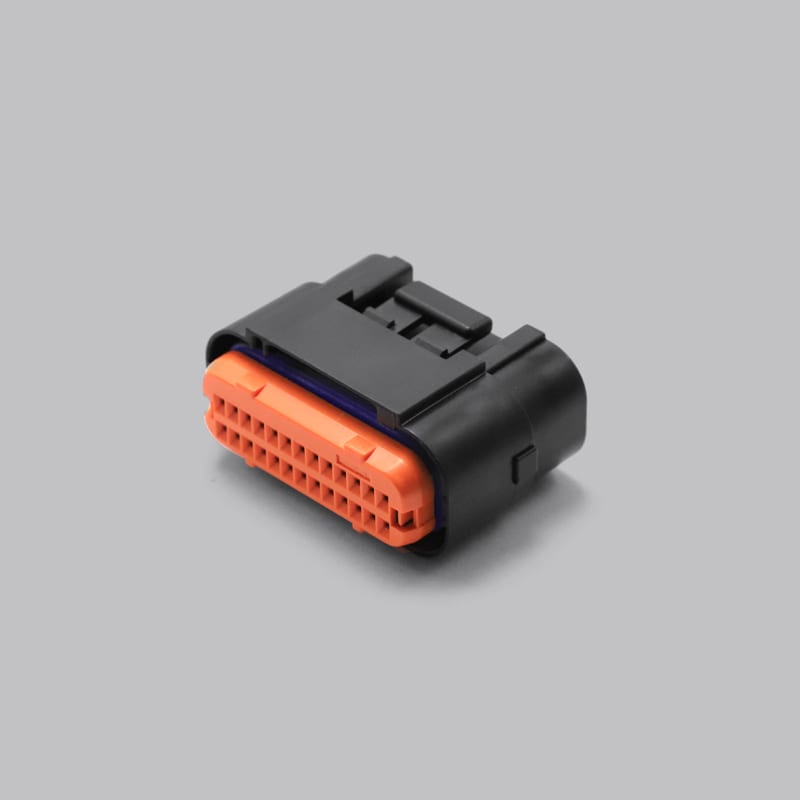

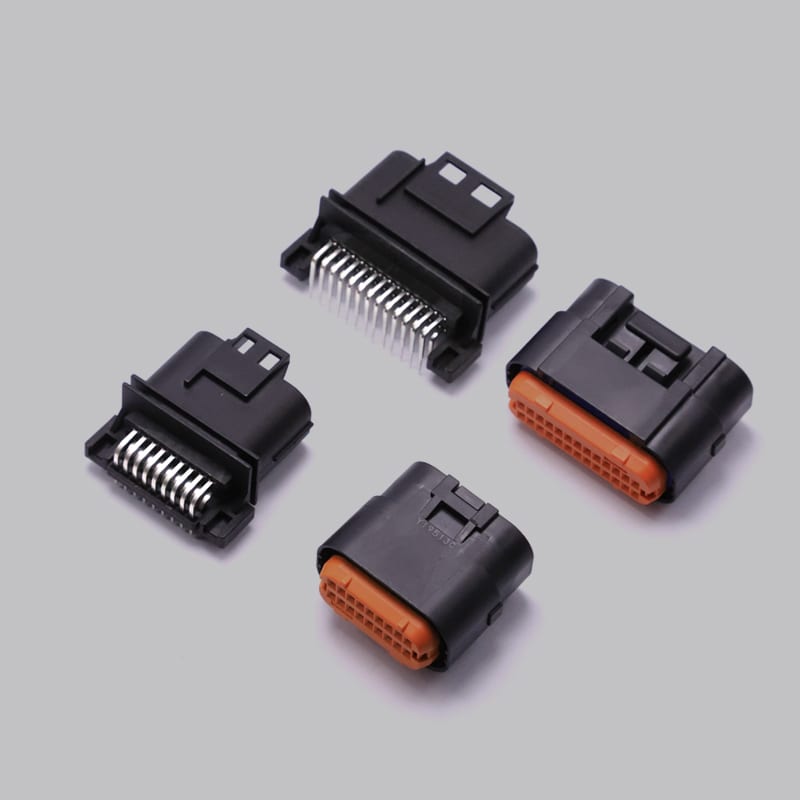

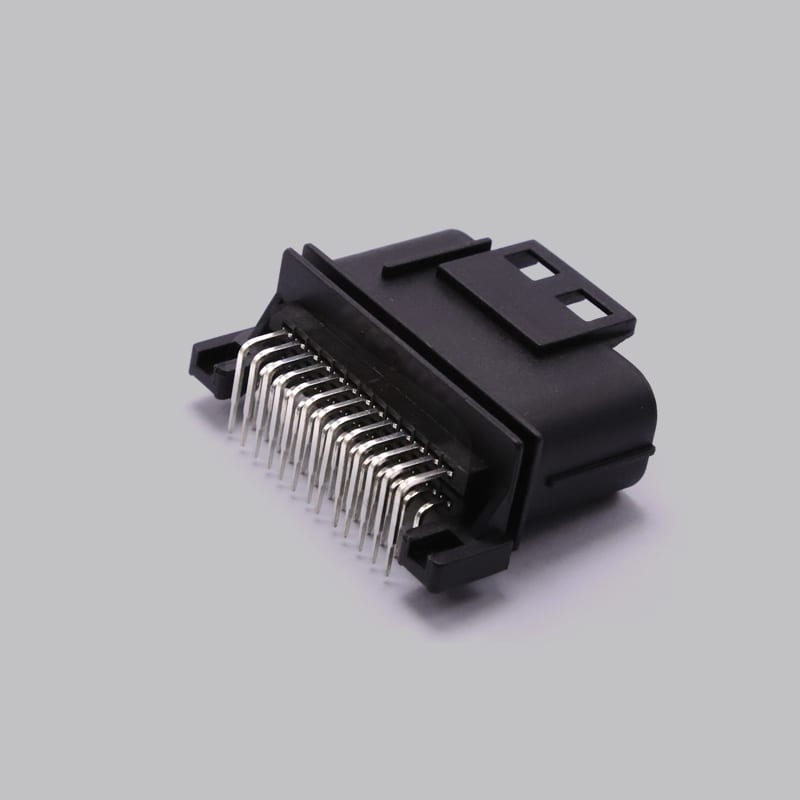

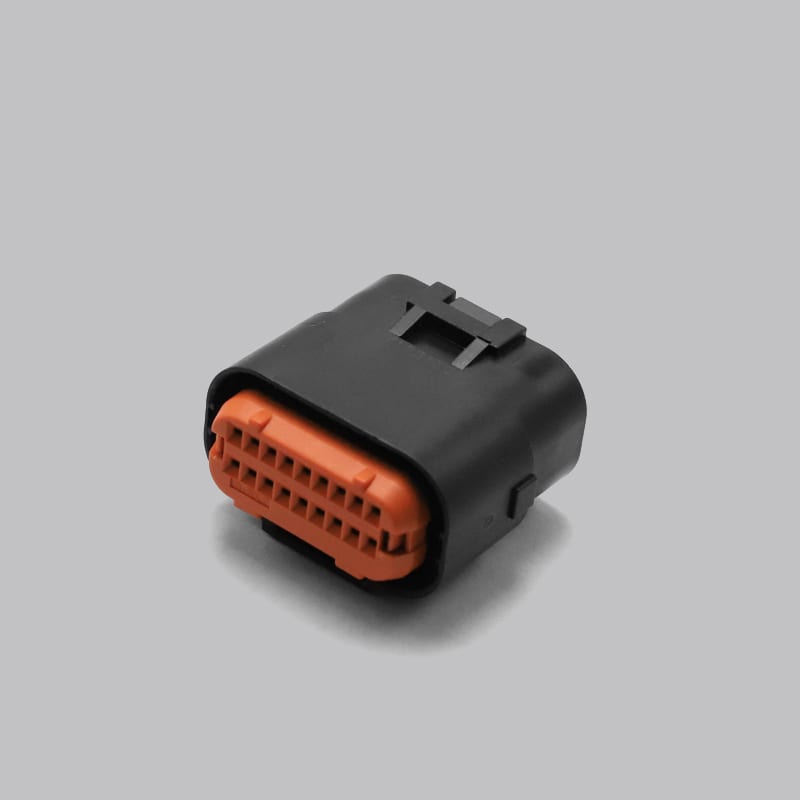

Product photos
Specifications
| Pitch | 2.50mm |
|---|---|
| Circuits | 18/ |
| Current rating | 3A AC, DC |
| Voltage | 1000V |
| Material | Silicone rubber/ |
|---|---|
| Wire/Cable Size (AWG) | #20 – #16 |
| Withstanding Voltage | 1000V AC/ |
| Temperature Range | -40℃～+125℃ |
| Contact Resistance | 5mΩ Max |
| Insulation Resistance | 100MΩ Min |
| Product Plating | Tin plating |
Description
KR2556 Series MX23A Wire-to-Board Automotive Connectors are designed for automotive, motorbike and other waterproof equipment with excellent waterproof performance and environmental characteristics. Its low assembly height and reverse pin design fit into compact spaces.
Highly reliable dual heat sink construction and waterproof grommets ensure that the contacts are fully inserted and effectively insulated from moisture. High insulation resistance and low contact resistance, adaptable to a wide range of temperature, ideal for waterproof automotive and industrial equipment.
A waterproof seal in the mating area and a fully waterproof grommet design in the wire crimp area ensure that the connector maintains a reliable electrical connection in harsh environments and protects against moisture ingress.
The low assembly height and optional reverse pin connector (pins facing up) allow the connector to be easily installed in limited spaces, increasing flexibility in equipment design.
The double heat sink structure on the contact portion of the receptacle not only enhances heat dissipation, but also prevents damage to the grommets through a large chamfer design, further enhancing the durability and stability of the connector.
The connector can work normally in a wide temperature range from -40°C to 125°C, adapting to a variety of extreme environmental conditions and ensuring the stable operation of the equipment.
With high insulation resistance and low contact resistance, it ensures high-quality electrical connection and reduces energy loss and signal interference.
Features
- Superior Waterproofing
- Compact design
- High Reliability
- Wide Environmental Adaptability
- Excellent electrical performance
