KR4004 Series AMPSEAL 14 Pin Automotive Connectors
KR4004 — Pitch 4.00mm · Circuits 14pin · Current 3A AC, DC · Voltage 250V
- Series: KR4004
- Pitch: 4.00mm
- Automotive Connectors
- New Product
- Pitch
- 4.00mm
- Circuits
- 14pin
- Current
- 3A AC, DC
- Voltage
- 250V
KR4004 Series AMPSEAL Wire-to-Board Connectors, Automotive Connectors, 4.00mm Pitch, 3 Rows, 14 Circuits. It is supplied with receptacle contact housings and printed circuit board mount headers, and is optimised for vehicle applications in high-temperature conditions to meet the demands of harsh environments.

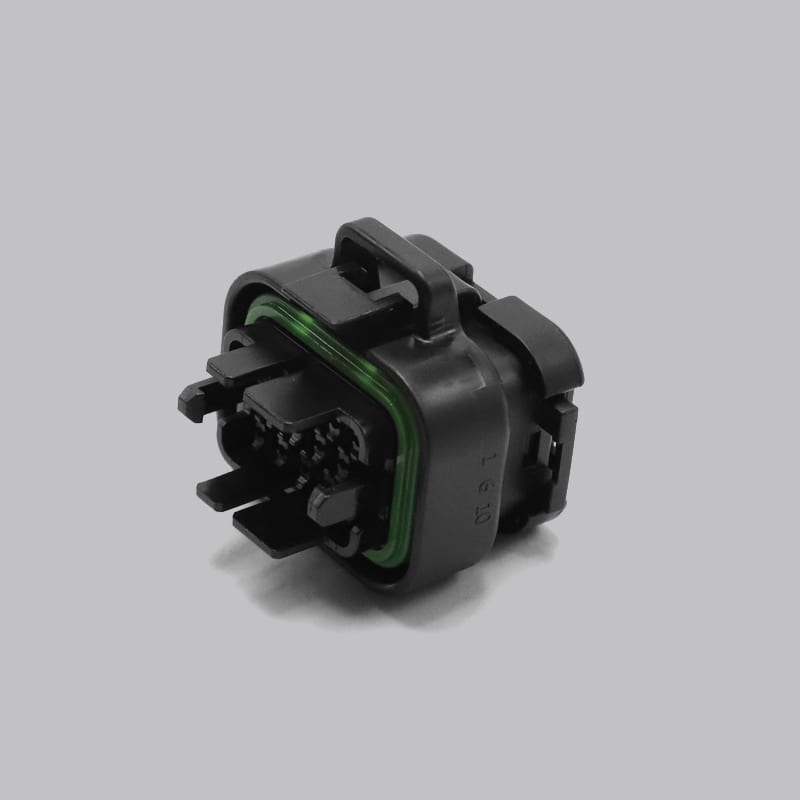

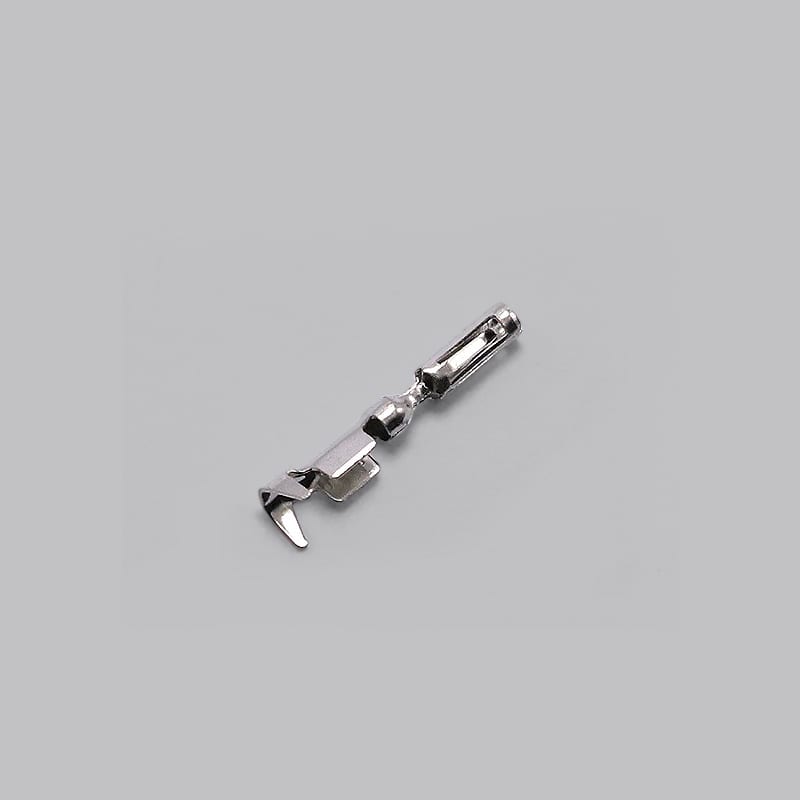

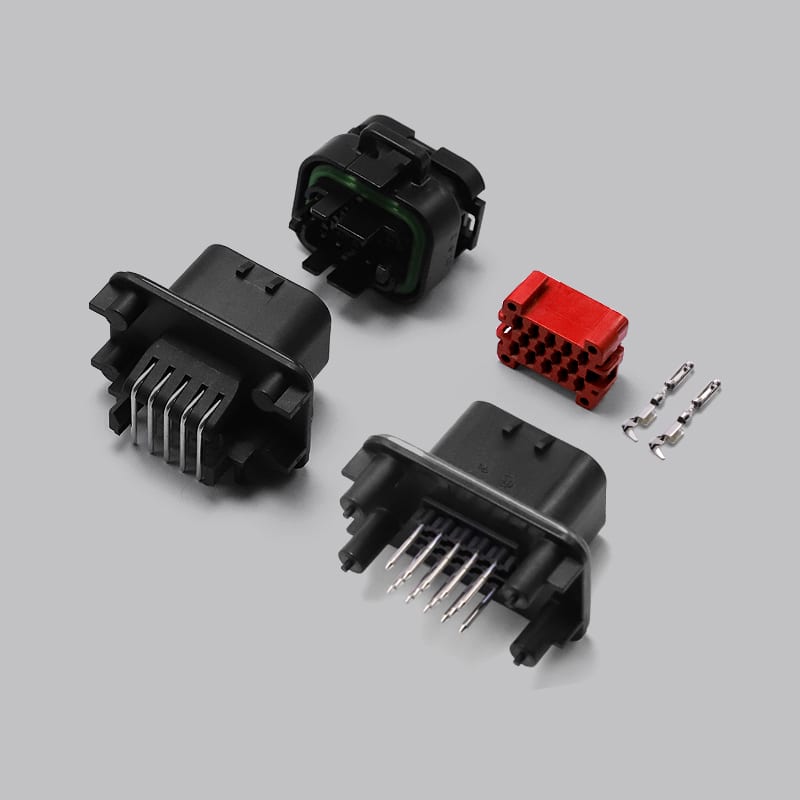

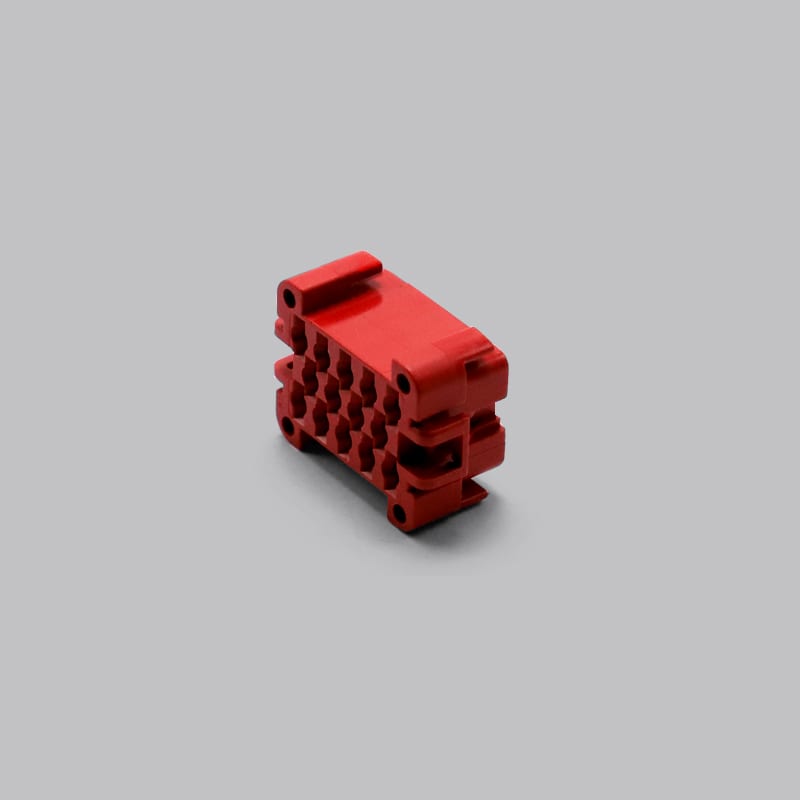

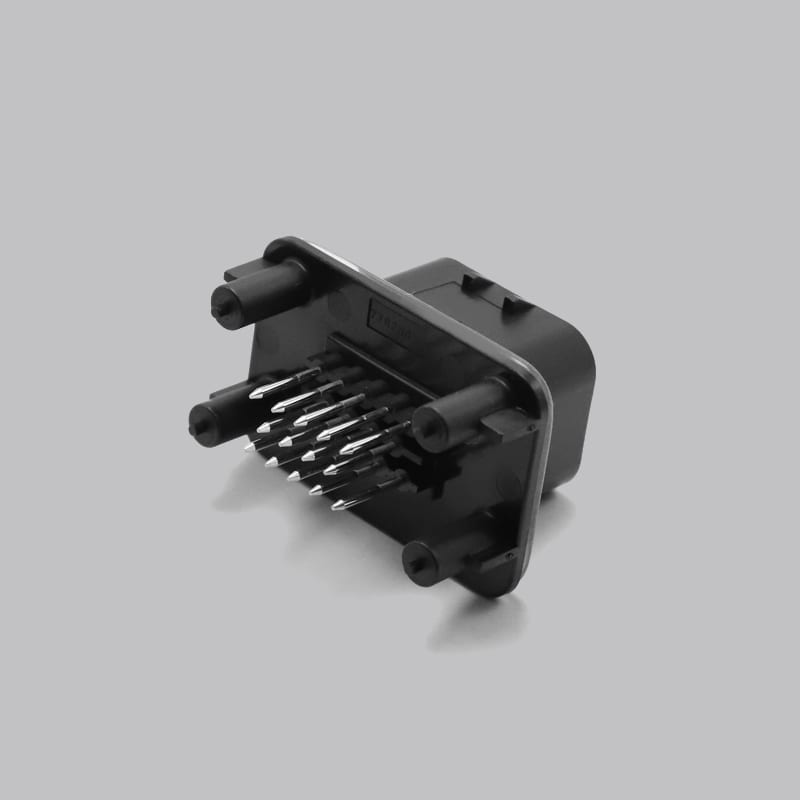

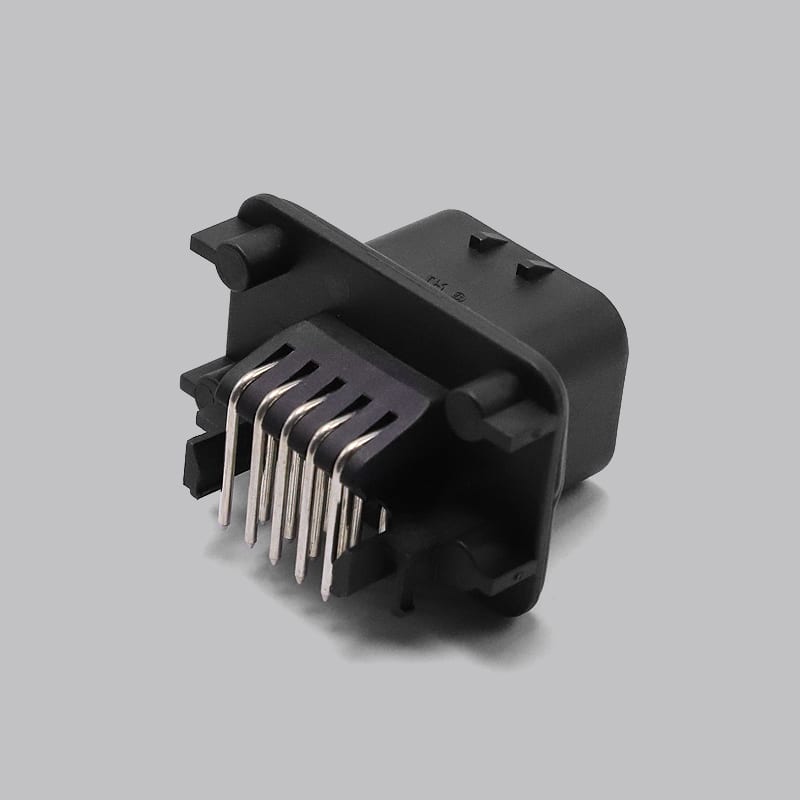

Product photos
Specifications
| Pitch | 4.00mm |
|---|---|
| Circuits | 14pin |
| Current rating | 3A AC, DC |
| Voltage | 250V |
| Material | UL 94V-0 PBT Copper Alloy |
|---|---|
| Wire/Cable Size (AWG) | 16#-20# |
| Withstanding Voltage | 1000V AC/ |
| Temperature Range | -40℃～+105℃ |
| Contact Resistance | 5mΩ Max |
| Insulation Resistance | 100MΩ Min |
| Product Plating | Gold/ |
Description
KR4004 Series AMPSEAL 4.00mm Pitch 14 Pin Wire-to-Board Automotive Connectors are designed for high-temperature, harsh environments with superior durability and environmental sealing. The wire-to-board construction is suitable for a wide range of heavy-duty equipment such as trucks and farm machinery, ensuring efficient connections in areas such as the engine compartment. Gold-plated or tin-plated terminals support high current transmission, are water and vibration resistant, and the housing and seals are made of high quality materials to ensure long-lasting reliable operation.
Well-designed to maintain long-term stable connection performance in harsh environments such as high temperature, humidity and dust, effectively preventing the intrusion of moisture, dust and other external factors.
Suitable for a wide range of heavy-duty and industrial equipment, such as trucks, buses, off-highway vehicles, etc., to meet diversified application needs.
Simplifies the installation process and improves work efficiency, while the tail cap attachment provides additional protection and reduces wire stress.
The integrated wedge locking mechanism ensures that the terminals are assembled in place and enhances retention, preventing terminals from loosening or falling out.
The housing is made of robust glass-filled PBT, the gaskets and seals are made of silicone rubber, and the terminal locking mechanism is also made of high-quality PBT for overall quality and reliability.
Features
- Excellent durability and environmental sealing
- Wide range of applications
- Convenient PCB installation and tool-less tailcap attachment
- Reliable terminal locking mechanism
- High-quality material selection
