U04S0017R Series TYPE-C 16P Waterproof Female Socket USB Connector
Circuits 16pin · Current 5A
- Circuits
- 16pin
- Current
- 5A
U04S0017R Series, TYPE-C Receptacle, 16 Pin, Female, USB Connector, 6.50mm Length, CH=1.73mm, Board in Type, Terninal SMT(WP8), IPX8 Waterproof Rating.

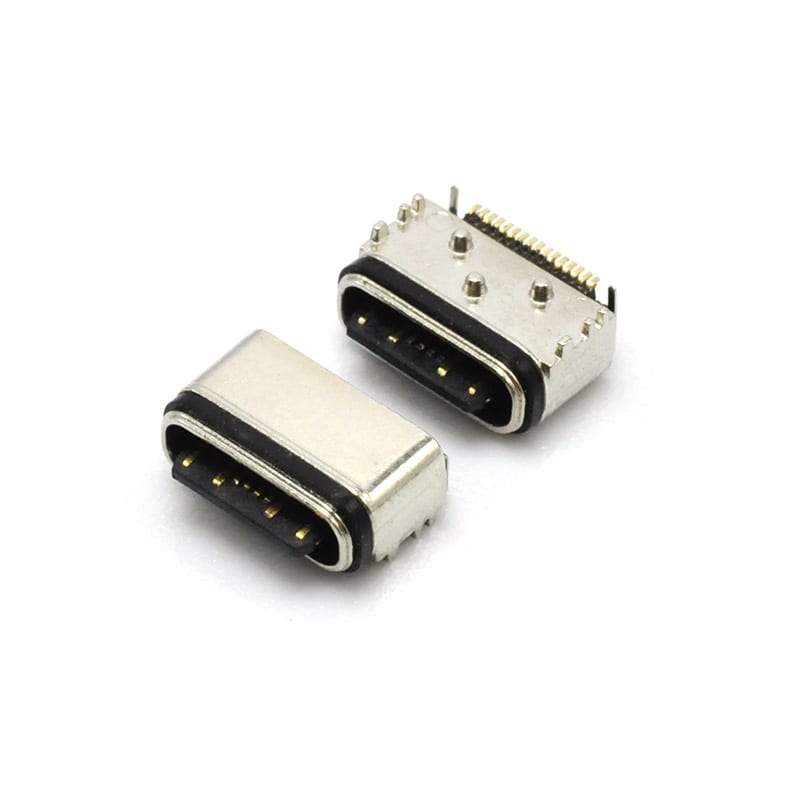

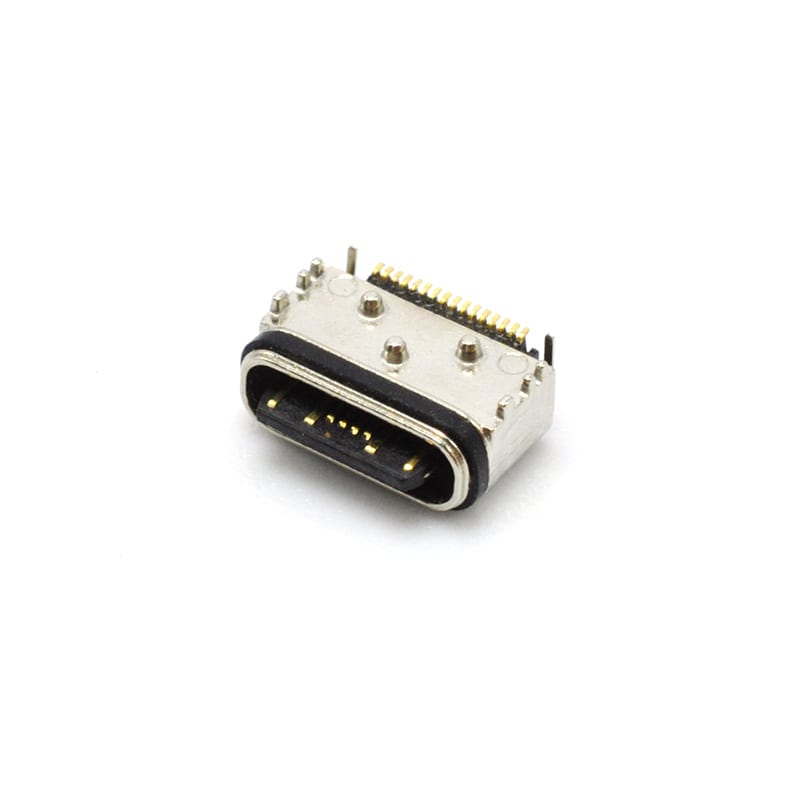

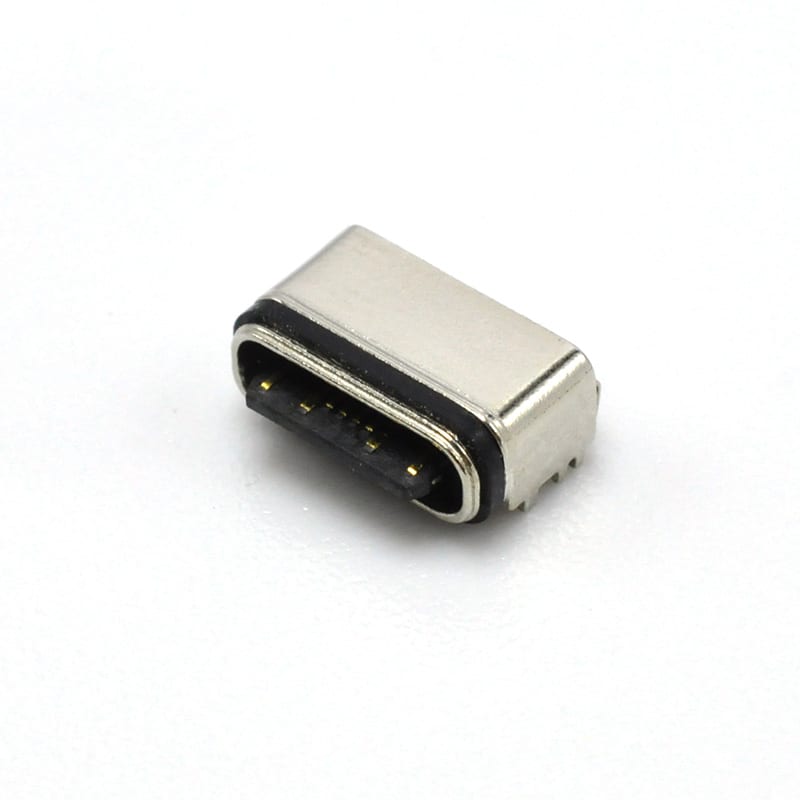

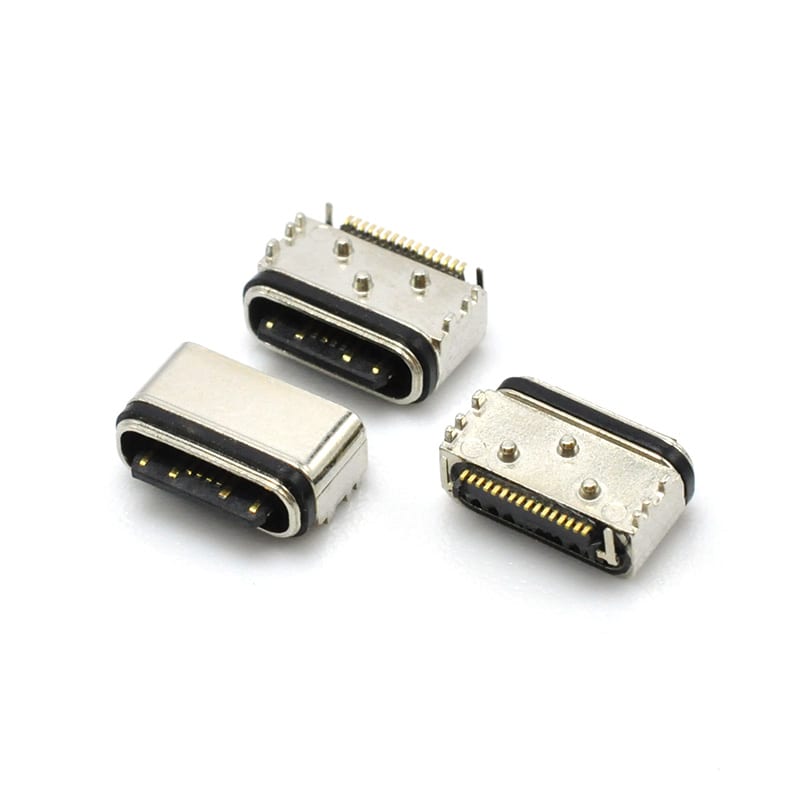

Product photos
Specifications
| Type | USB Type-C |
|---|---|
| Circuits | 16pin |
| Current | 5A |
| Series | U04S0017R-S |
| Material | PA9T UL94 Copper alloy |
|---|---|
| Gender | Female |
| Withstanding Voltage | 100V AC/ |
| Temperature Range | -55℃～+85℃ |
| Contact Resistance | 40mΩ/ |
| Insulation Resistance | 100MΩ/ |
| Operating Force | 5N~20N |
