U05S0002R Series Mini USB Type B SMT Female Socket USB Connector with Post
Circuits 5pin · Current 1.0A
- Circuits
- 5pin
- Current
- 1.0A
U05S0002R Series, USB Receptacle, Mini USB, Type B, 5 Pin, Female, Right Angle, SMT Type, with Post, Column Height=1.0mm, Leg Spacing=5.45mm.

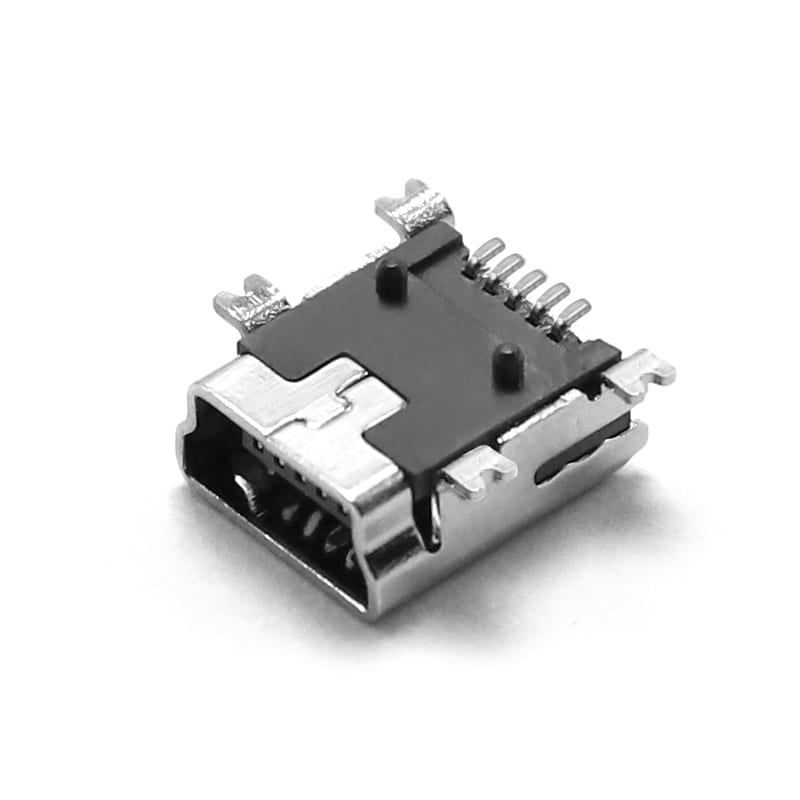

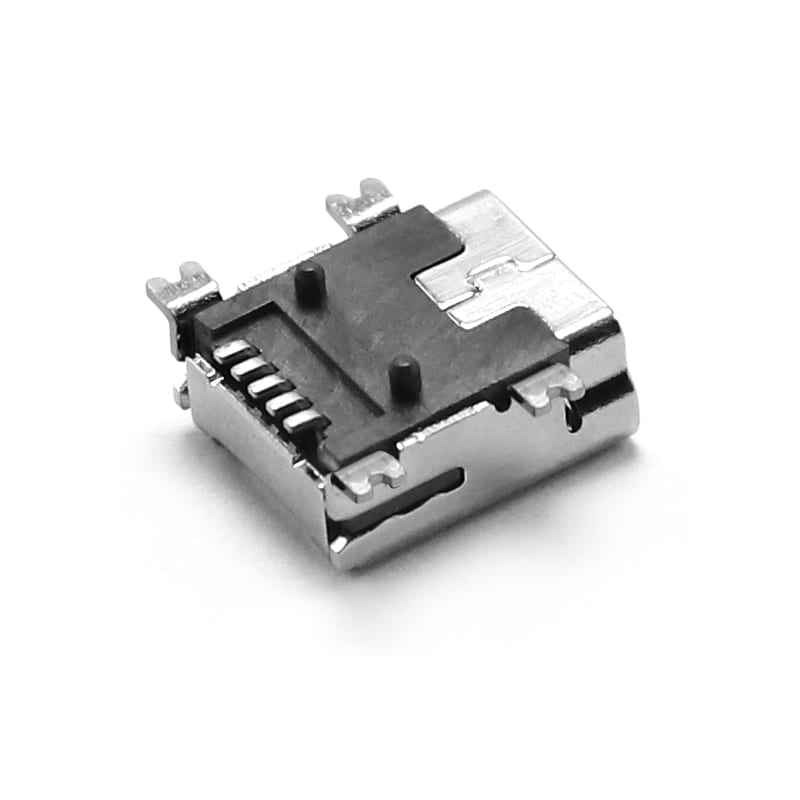

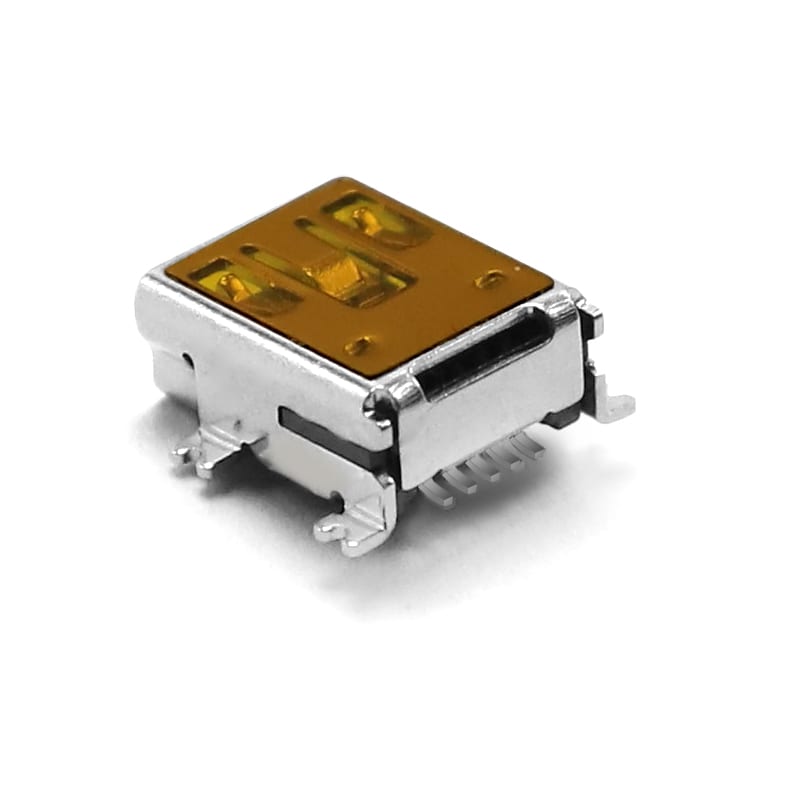

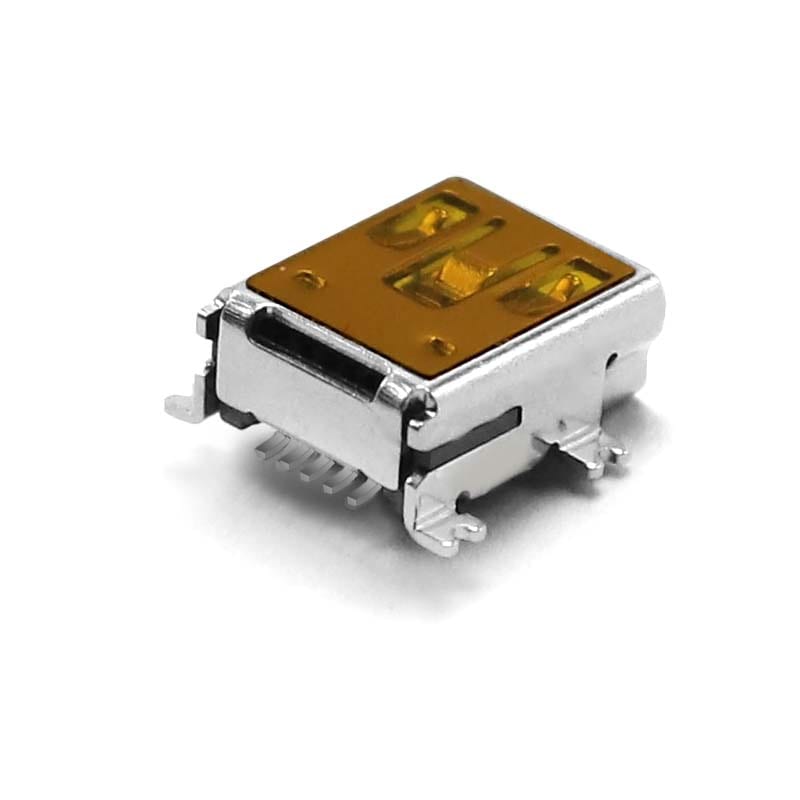

Product photos
Specifications
| Type | Mini USB |
|---|---|
| Circuits | 5pin |
| Current rating | 1.0A |
| Series | U05S0002R |
| Material | High temperature thermoplastlc with g.f,UL94 V-0, Copper Alloy |
|---|---|
| Gender | Female |
| Withstanding Voltage | 100V AC/ |
| Temperature Range | -25℃～+85℃ |
| Contact Resistance | 50mΩ/ |
| Insulation Resistance | 100MΩ/ |
| Mating Force | 3.57Kgf Max |
