U01P0002B Series Micro USB 5P Male SMT Right Angle Type Offset with Post Connector
Circuits 5pin · Current 1A
- Circuits
- 5pin
- Current
- 1A
U01P0002B Series, Micro-USB B Receptacle, 5 Pin, Male Surface Mount, Right Angle, 6.70mm Length, with Solder Tabs.

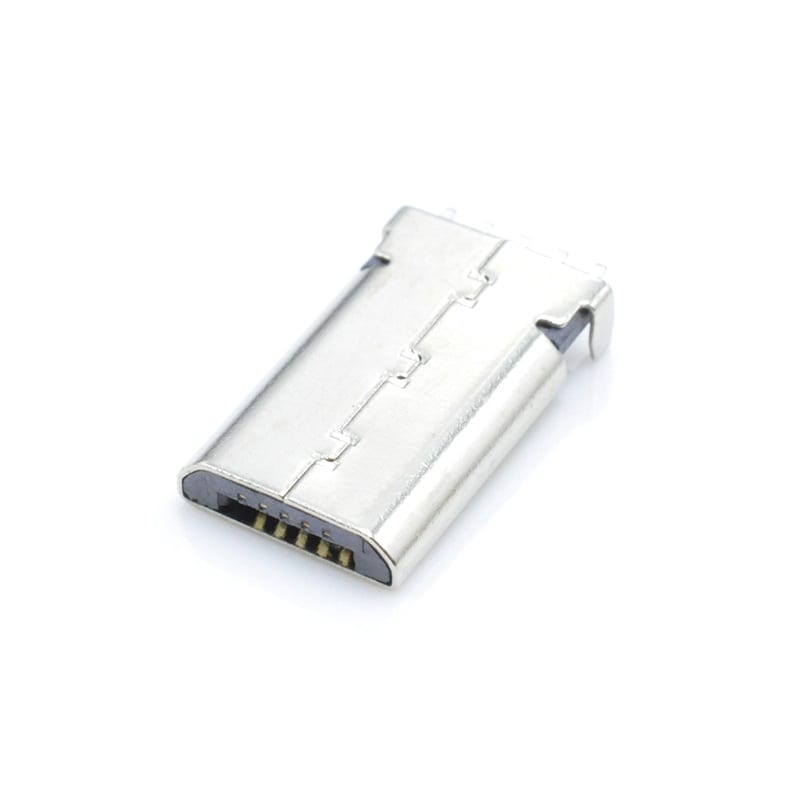

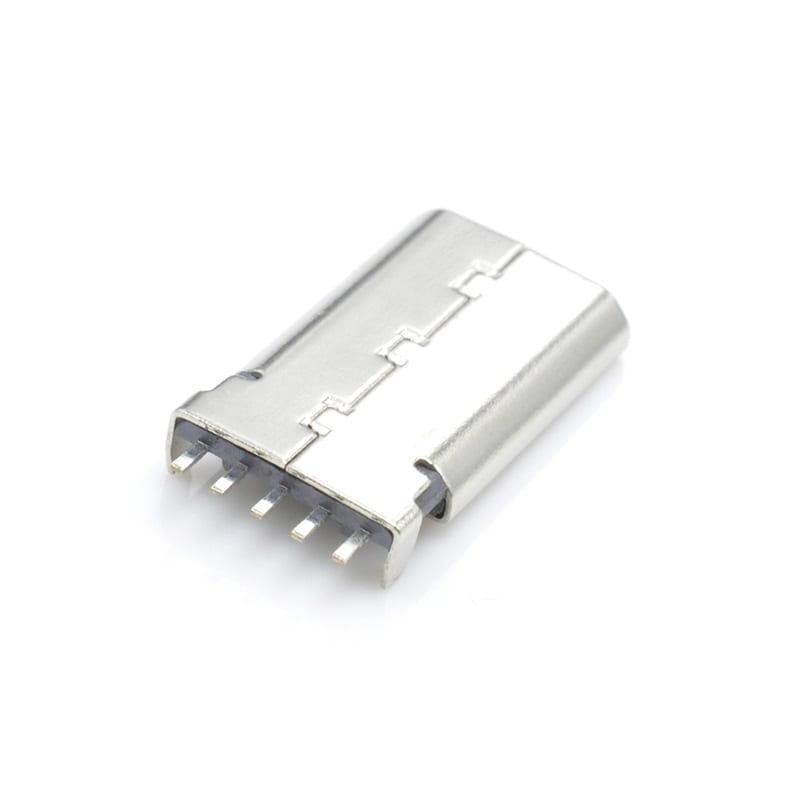

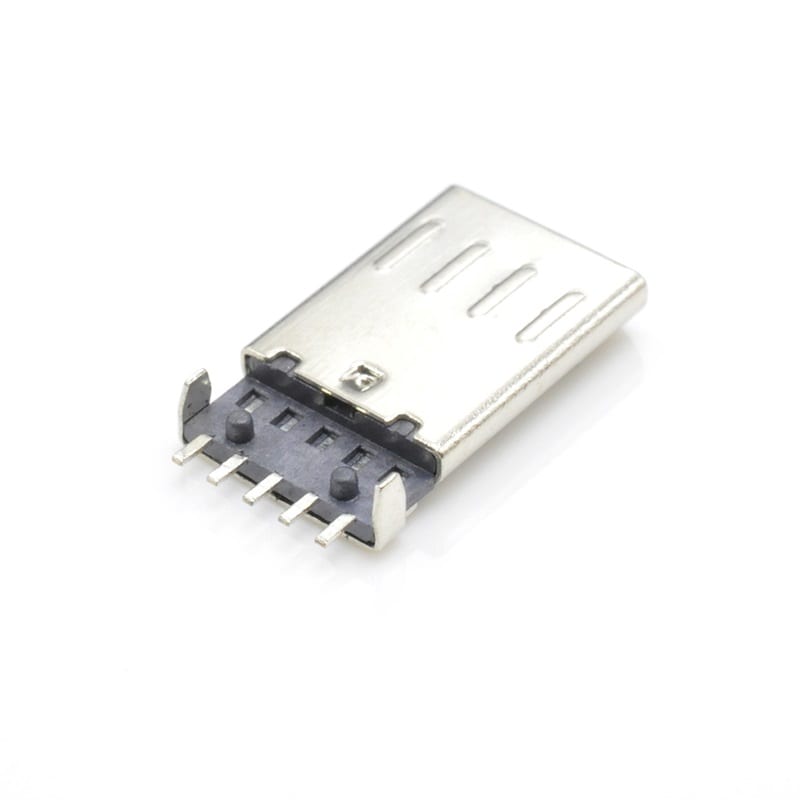

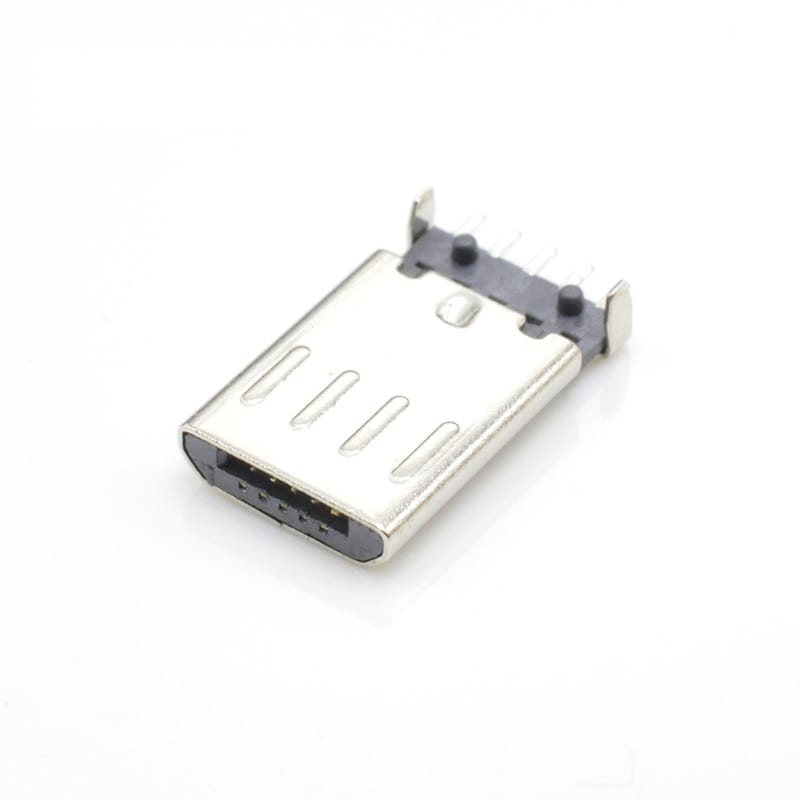

Product photos
Specifications
| Type | Micro USB |
|---|---|
| Circuits | 5pin |
| Current rating | 1A |
| Series | U01P0002B |
| Material | LCP UL94V-0 SUS Brass |
|---|---|
| Gender | Male |
| Withstanding Voltage | 500V AC/ |
| Temperature Range | 40℃～+85℃ |
| Contact Resistance | 50mΩ/ |
| Insulation Resistance | 100MΩ/ |
| Voltage Rating | 30V |
