U01S0006R Series Micro USB 5Pin B Type SMT Female Connector Flat Mouth with Post
Circuits 5pin · Current 1.8A
- Circuits
- 5pin
- Current
- 1.8A
U01S0006R Series, Micro-USB B Receptacle, 5 Pin, Female, Type B, SMT, Right Angle, Flat Mouth, 5.00mm Length.

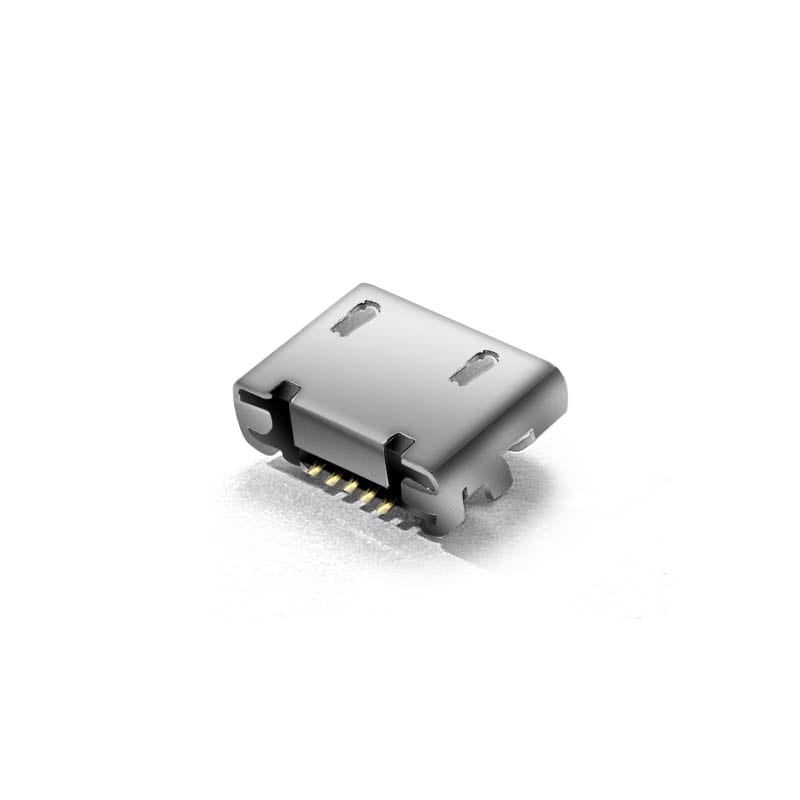

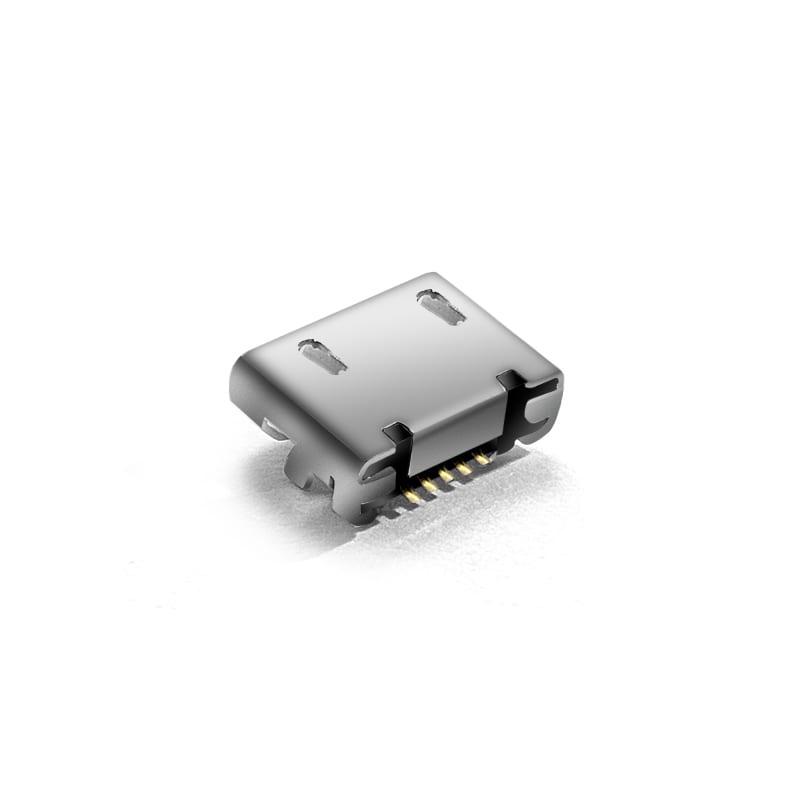

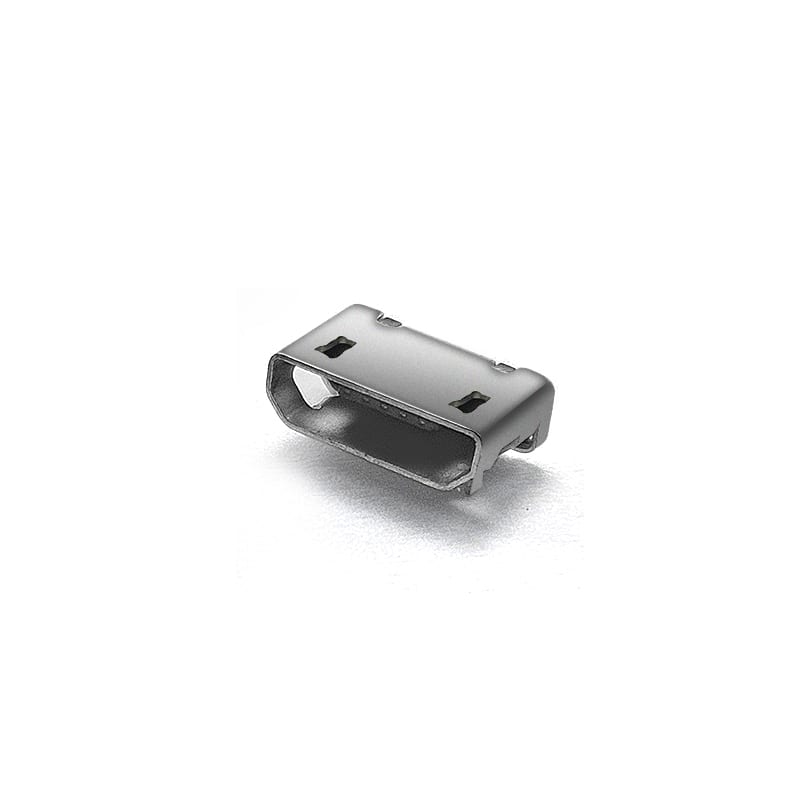

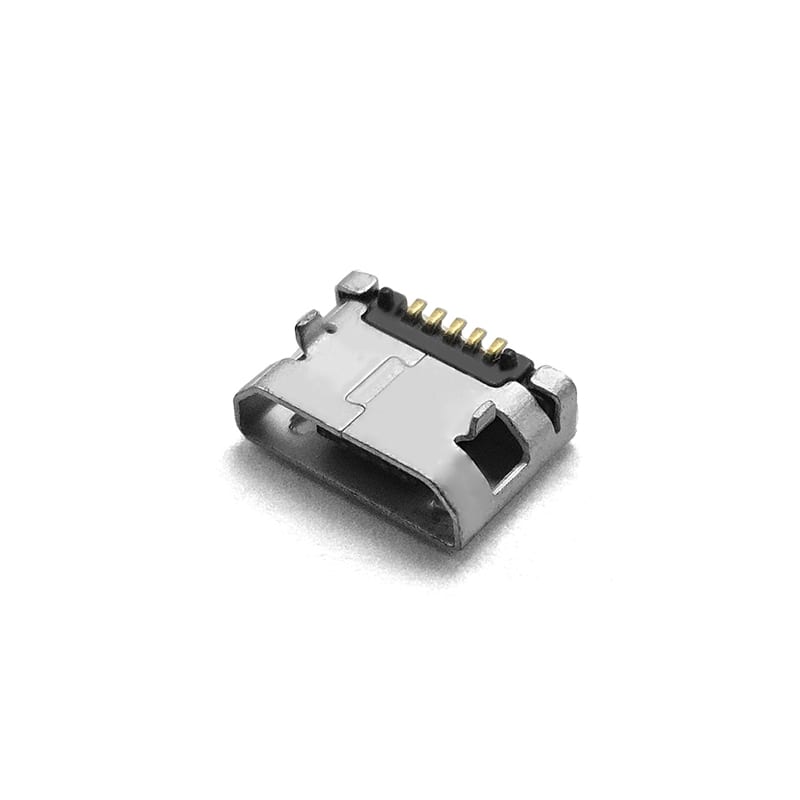

Product photos
Specifications
| Type | Micro USB |
|---|---|
| Circuits | 5pin |
| Current rating | 1.8A |
| Series | U01S0006R |
| Material | High temperature thermoplastic with g.f, UL94v-0 LCP, Copper Alloy, C2680/ |
|---|---|
| Gender | Female |
| Withstanding Voltage | 100V AC/ |
| Temperature Range | -30℃～+80℃ |
| Contact Resistance | 30mΩ/ |
| Insulation Resistance | 100MΩ/ |
| Mating Force | 3.57 Kgf Max |
