U01S0011R Series Micro USB 5Pin Crimped Edge Connector
Circuits 5pin · Current 1A
- Circuits
- 5pin
- Current
- 1A
U01S0011R Series, Micro USB, 5Pin, With Soldering Feet, Without Post, Crimped Edge, USB Connector.

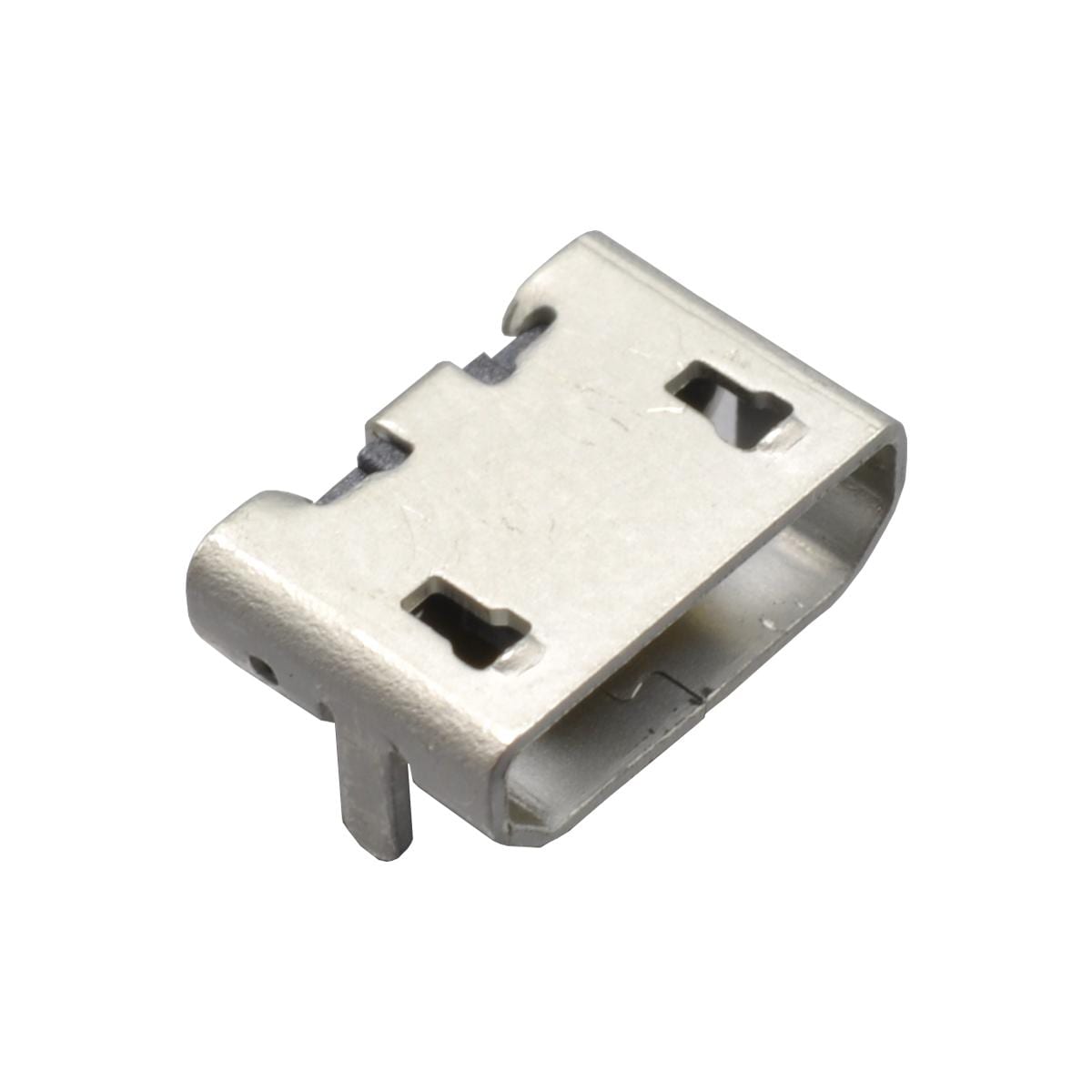

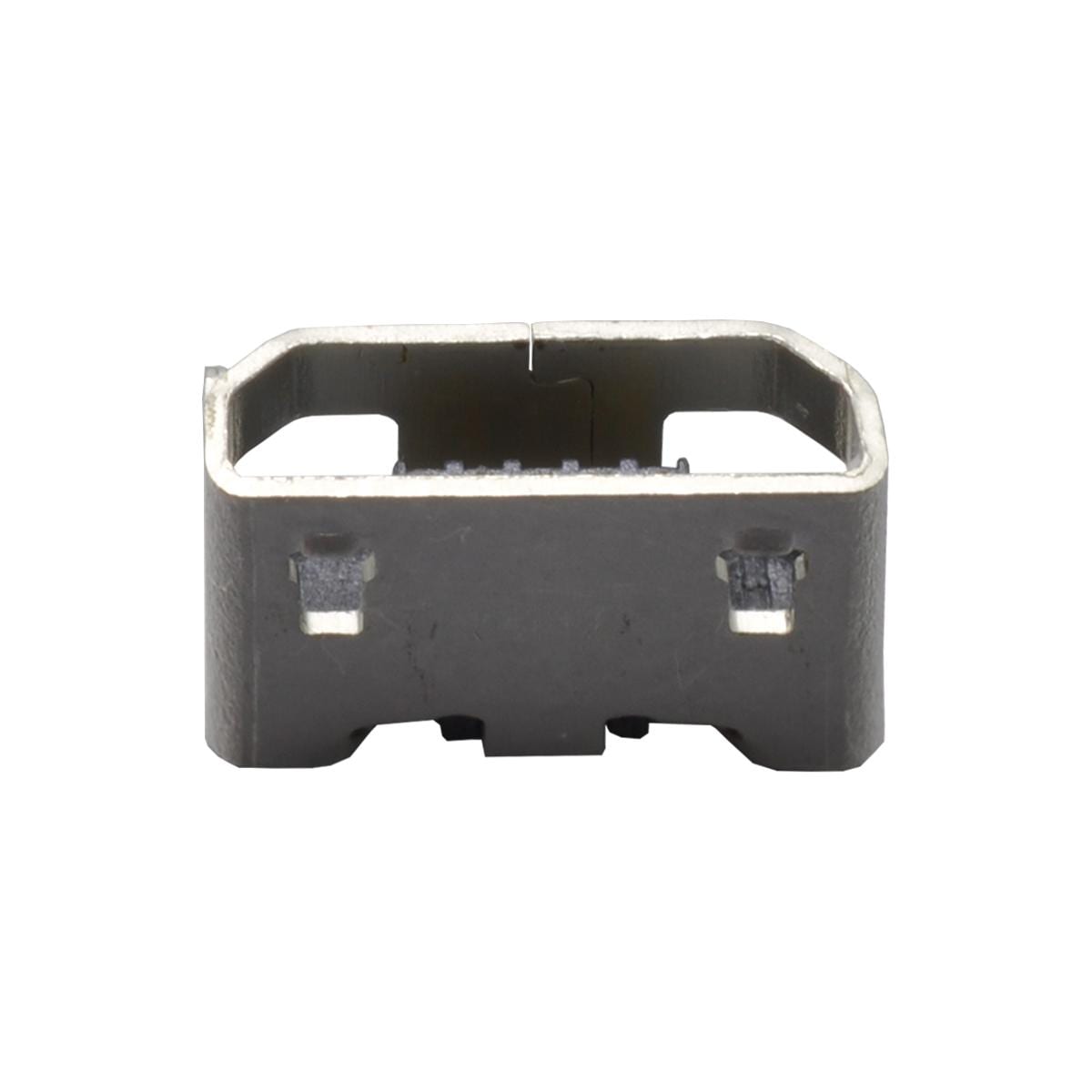

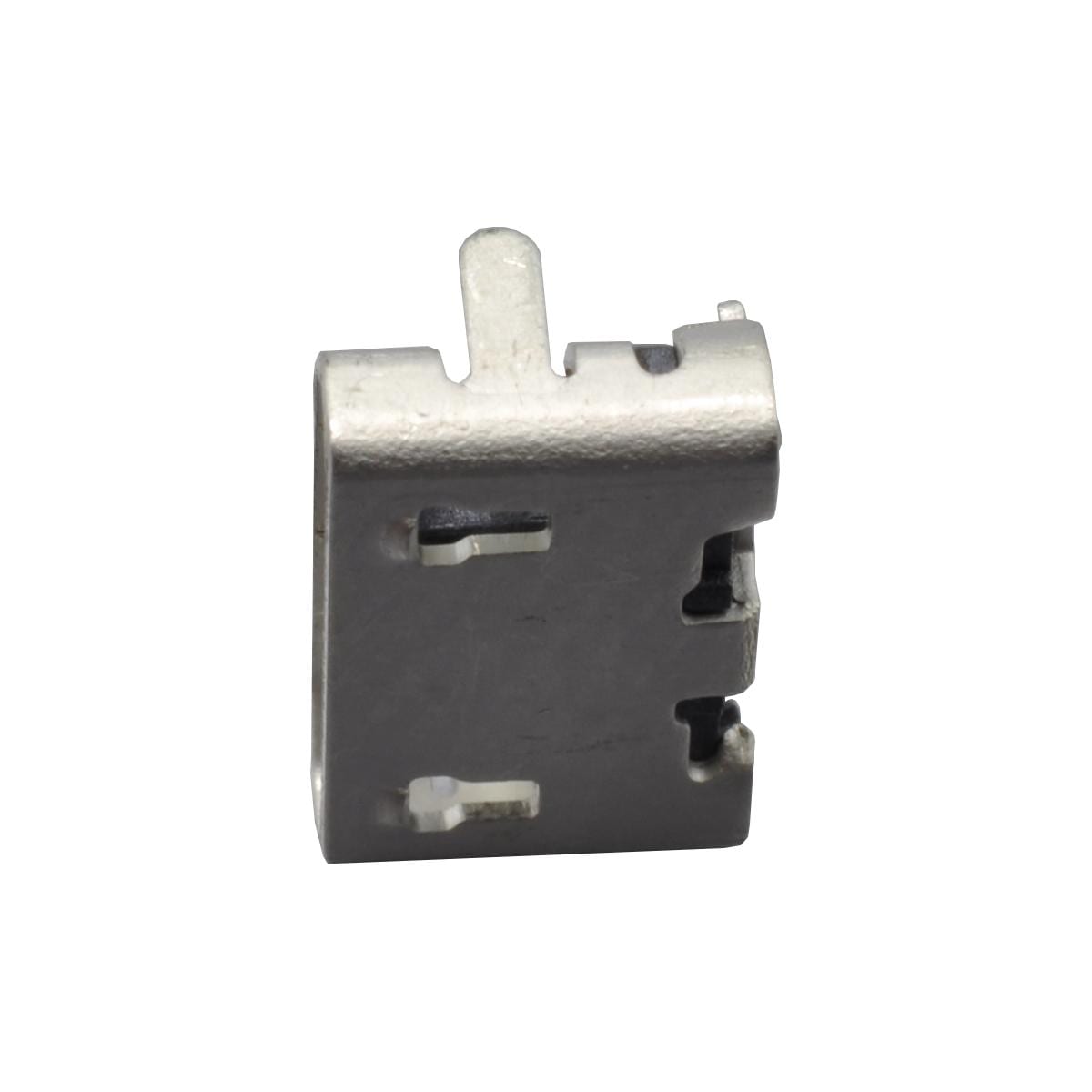

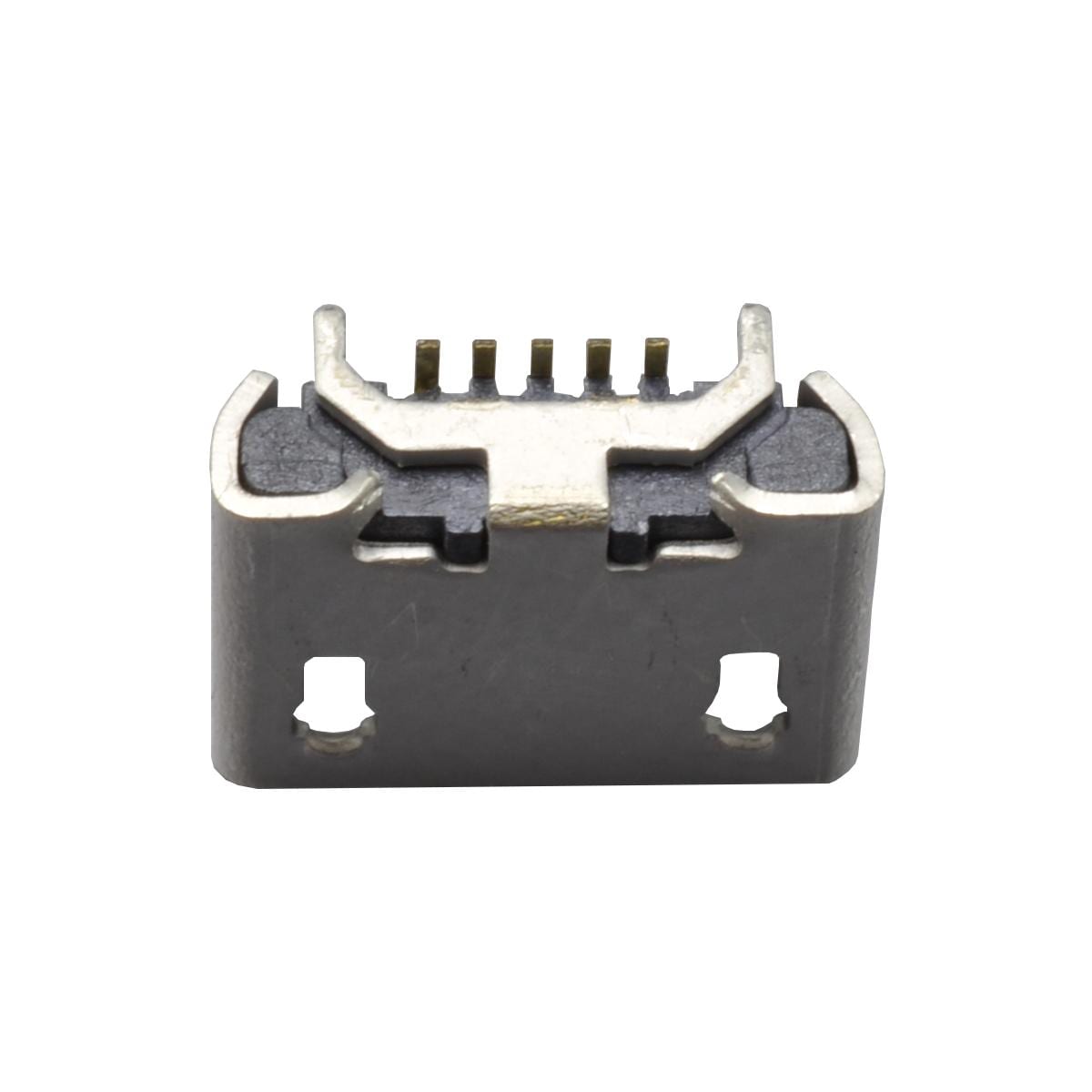

Product photos
Specifications
| Type | Micro USB |
|---|---|
| Circuits | 5pin |
| Current | 1A |
| Series | U01S0011R-S |
| Material | LCP UL94 C2680 |
|---|---|
| Withstanding Voltage | 100V AC/ |
| Temperature Range | -30℃～+80℃ |
| Contact Resistance | 50m Ω/ |
| Insulation Resistance | 100M Ω/ |
| Insertion Force | 3.57kgf MAX |
| Separation Force | 0.81kgf MIN |
