U02S0005B Series USB2.0 A Type AF Dual Row DIP Right Angle Female Connector
Circuits 8pin · Current 1.5A
- Circuits
- 8pin
- Current
- 1.5A
U02S0005B Series, USB 2.0 A Receptacle, 8 Pin, Dual Row, Female, Right Angle, DIP Type, White Housing, 17.65mm Length.

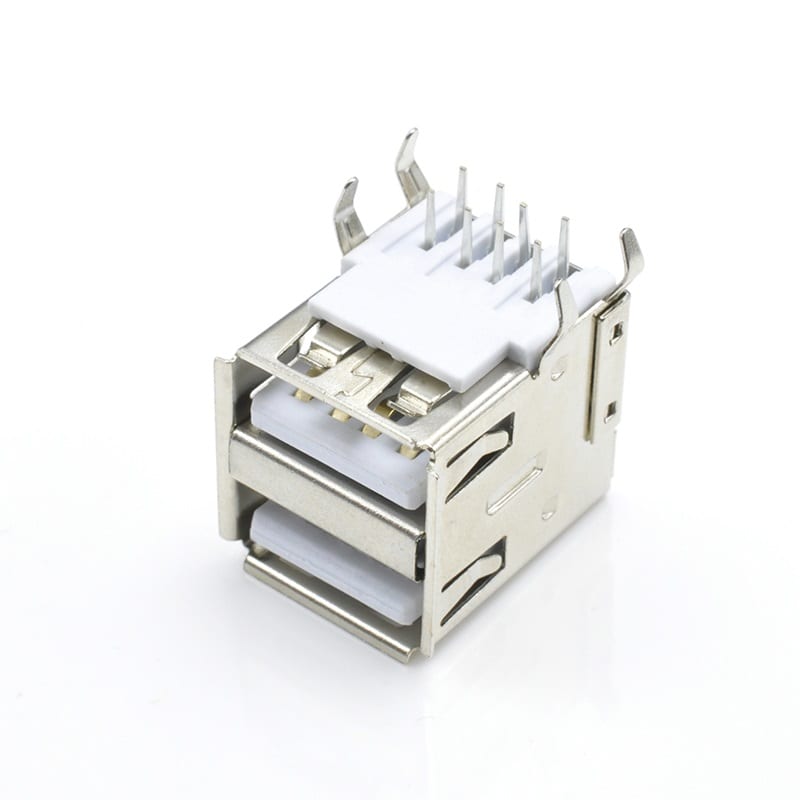

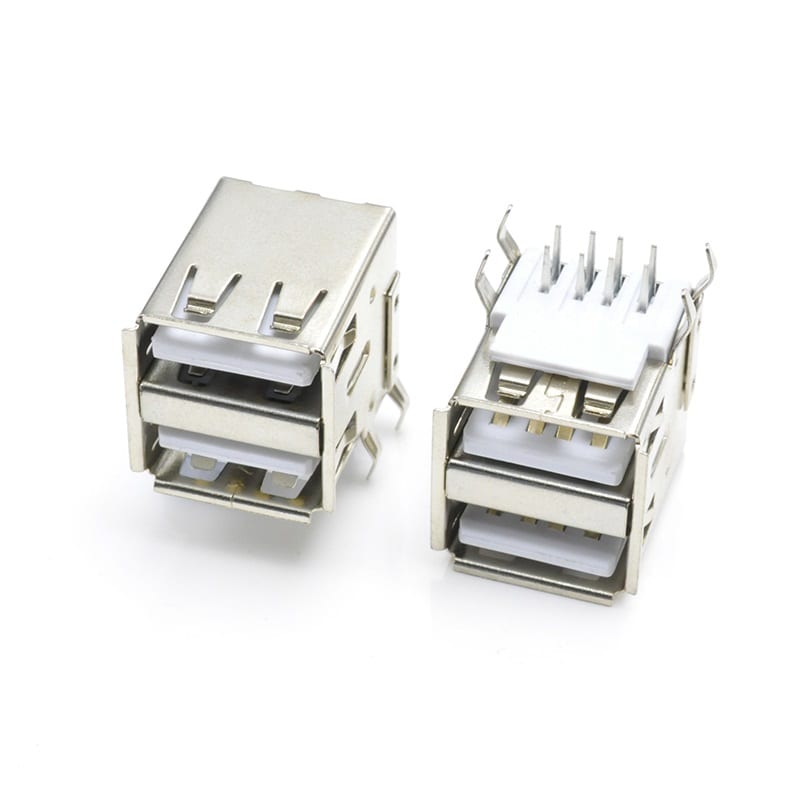

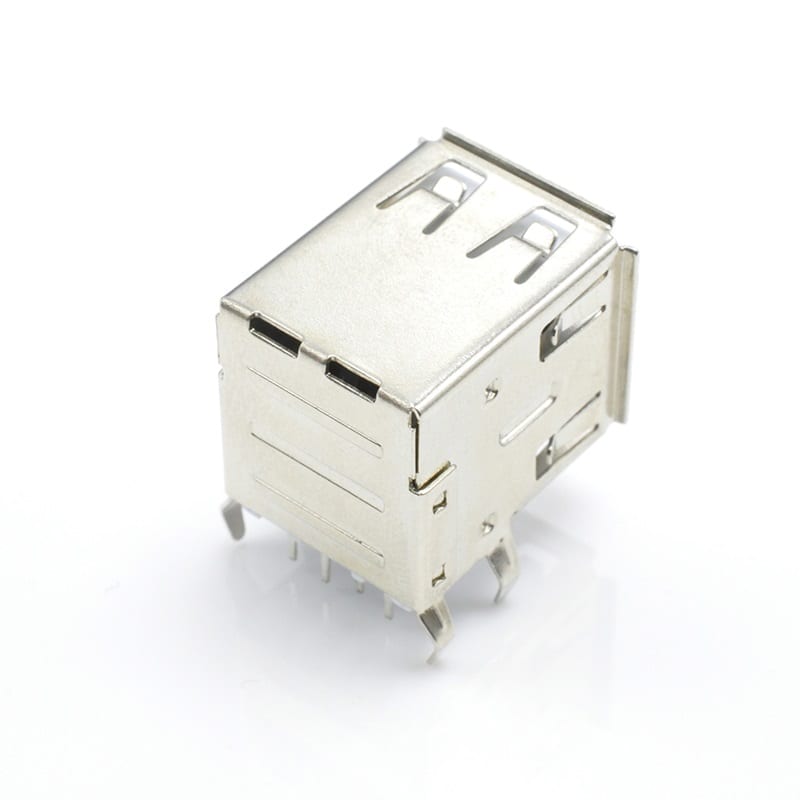

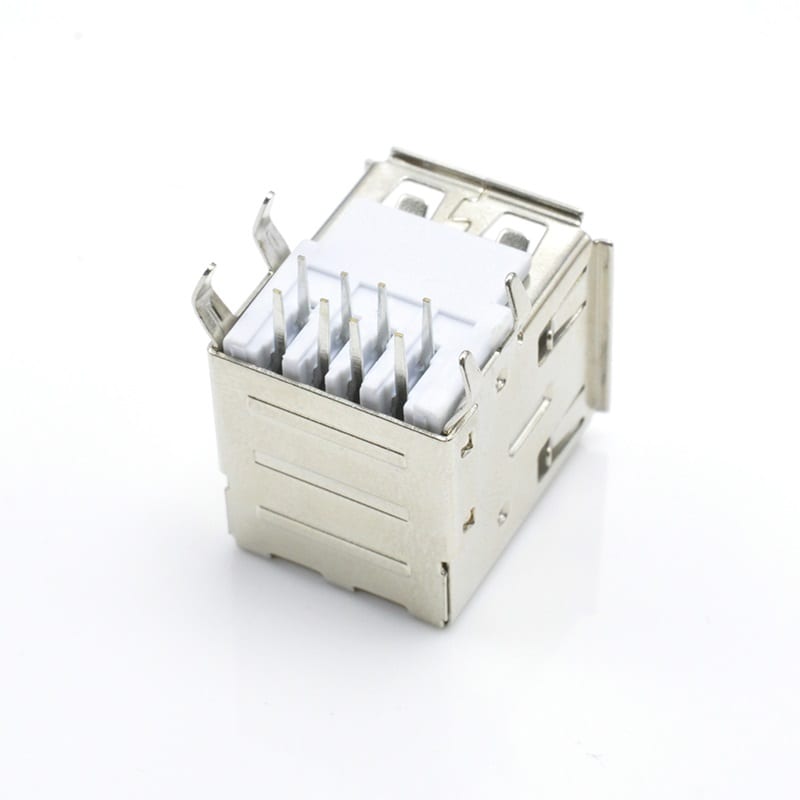

Product photos
Specifications
| Type | USB 2.0 |
|---|---|
| Circuits | 8pin |
| Current rating | 1.5A |
| Series | U02S0005B |
| Material | PBT, Brass, SPCC |
|---|---|
| Gender | Female |
| Withstanding Voltage | 500V AC/ |
| Temperature Range | -55℃～+85℃ |
| Contact Resistance | 30mΩ/ |
| Insulation Resistance | 1000MΩ/ |
| Mating Force | 35N Max |
