U03P0001B Series USB3.0 A Type AM SMT Straight Male Connector
Circuits 9pin · Current 1.8A/
- Circuits
- 9pin
- Current
- 1.8A/0.25A
U03P0001B Series, USB 3.0 A Plug, 9 Pin, Male, Vertical, SMT Type, Blue Housing, Sinking plate 1.9mm.

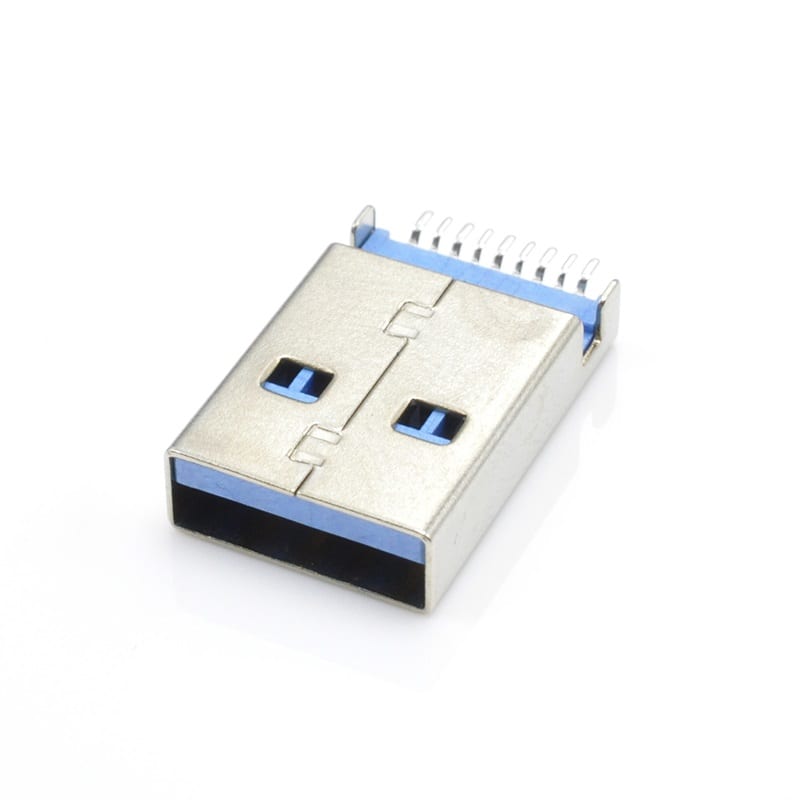

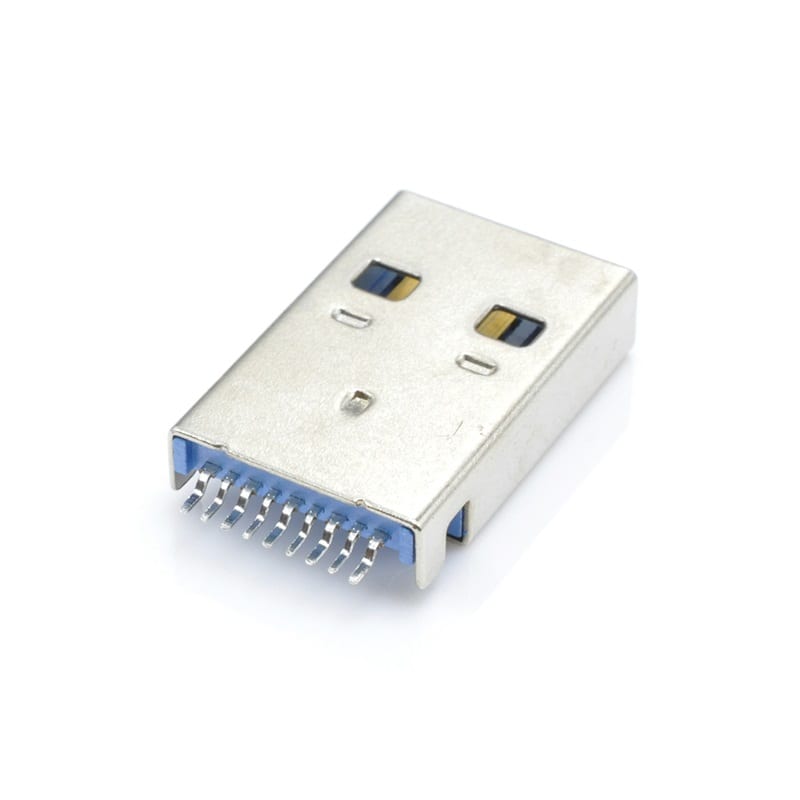

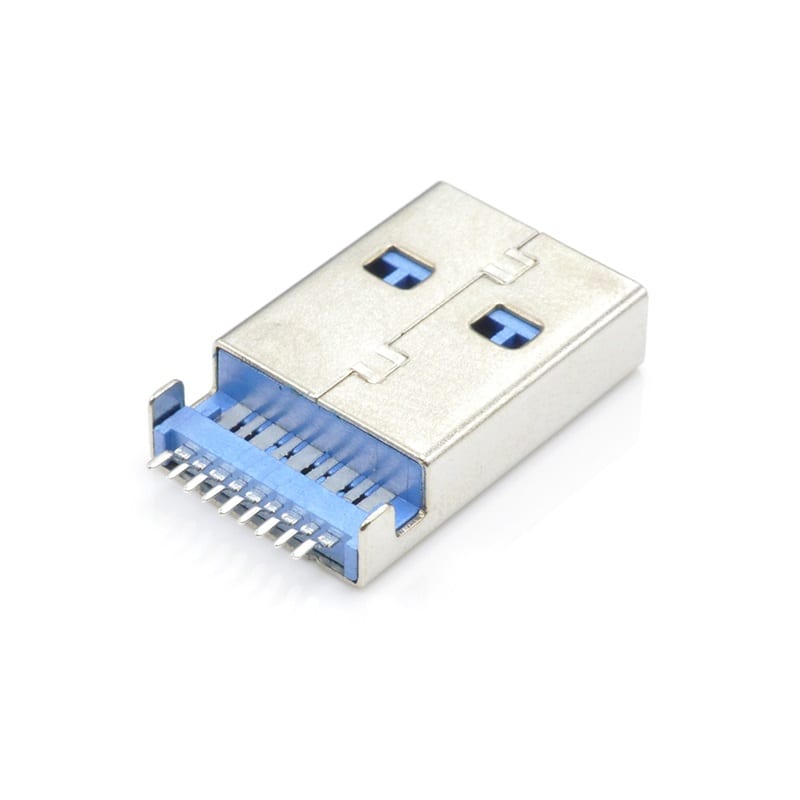

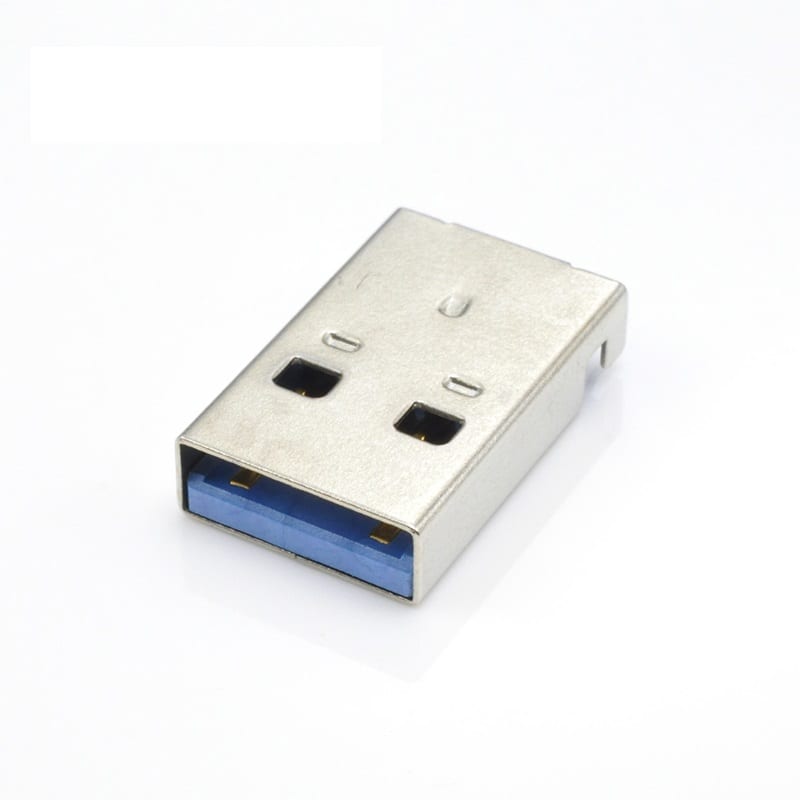

Product photos
Specifications
| Type | USB AM |
|---|---|
| Circuits | 9pin |
| Current | 1.8A/ |
| Series | U03P0001B-S |
| Material | LCP UL94 Copper alloy SPCC |
|---|---|
| Withstanding Voltage | 100V AC/ |
| Temperature Range | -55℃～+85℃ |
| Contact Resistance | 50mΩ/ |
| Insulation Resistance | 100MΩ/ |
| Insertion Force | 35N MAX |
| Separation Force | 8N MIN |
