U04S0016R Series Type C 16 Pin Female Socket USB Connector
Circuits 16pin · Current 5.0A
- Circuits
- 16pin
- Current
- 5.0A
U04S0016R Series, USB Receptacle, Type C, 16 Pin, Female, On Board Type usb, SMT Type, One-piece on Board, 7.35mm Length, CH1.67.

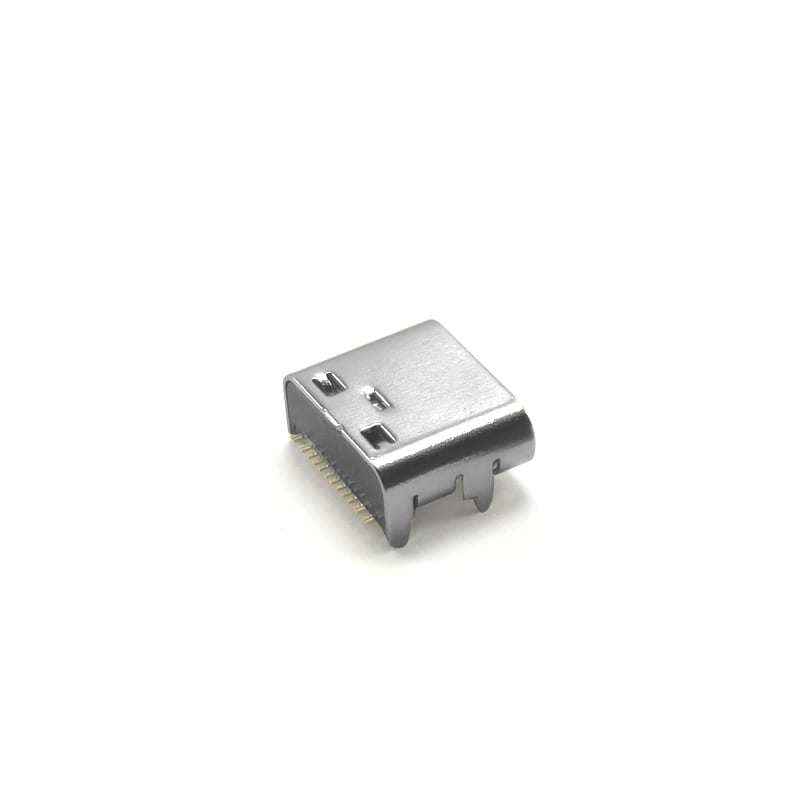

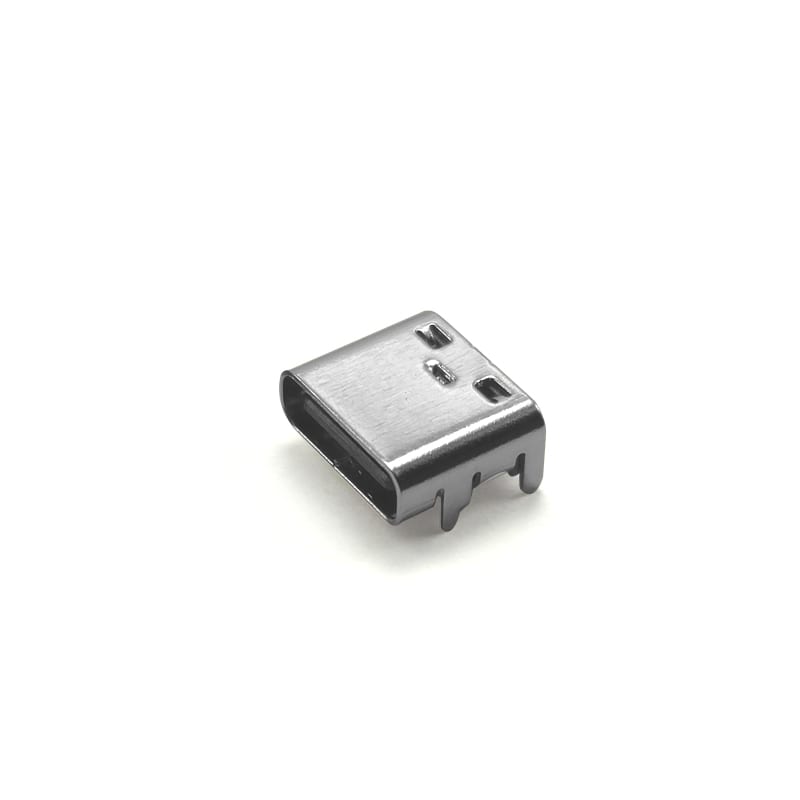

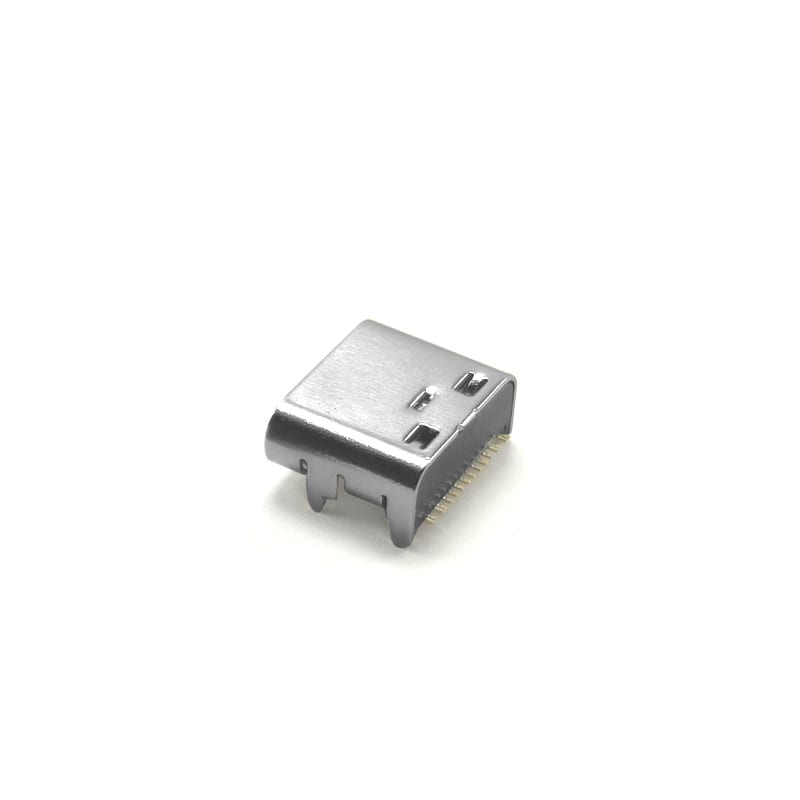

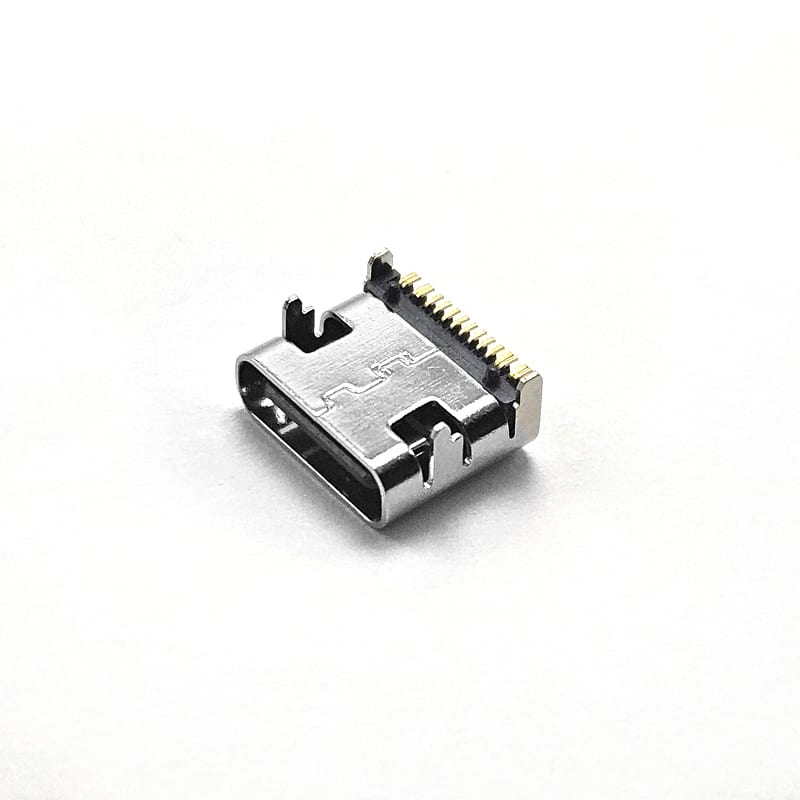

Product photos
Specifications
| Type | Type C |
|---|---|
| Circuits | 16pin |
| Current rating | 5.0A |
| Series | U04S0016R |
| Material | High Temperature Resistant Plastic, UL94 V-0, Copper Alloy, Stainless Steel |
|---|---|
| Gender | Female |
| Withstanding Voltage | 100V AC/ |
| Temperature Range | -30℃～+80℃ |
| Contact Resistance | 40mΩ/ |
| Insulation Resistance | 100MΩ/ |
| Mating Force | 2.00Kgf Max |
