U03S0002B Series USB3.0 A Type AF SMT Right Angle Female Connector
Circuits 9pin · Current 1.5A
- Circuits
- 9pin
- Current
- 1.5A
U03S0002B Series, USB 3.0 Receptacle, Type A, 9 Pin, Female, Right Angle, SMT Type, Front Paste Rear Insert, Blue Housing, 14.25mm Length, Sinking Plate 3.50mm.

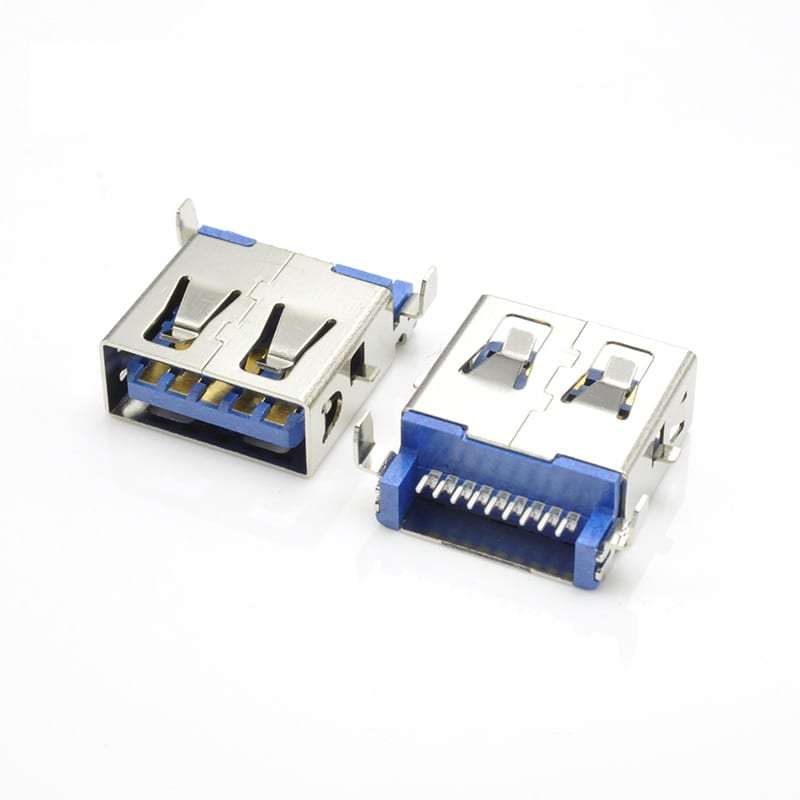

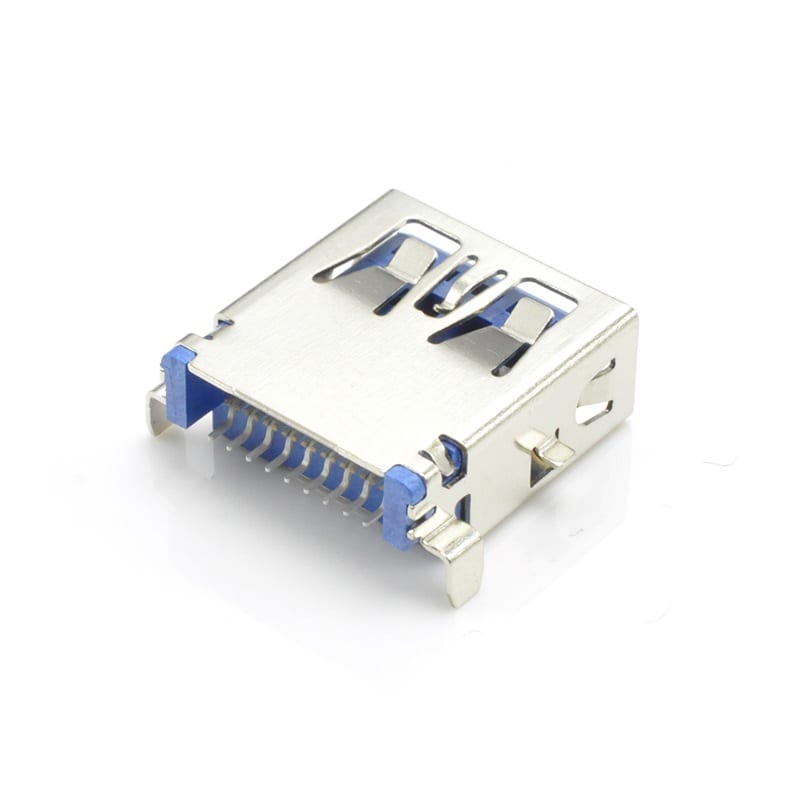

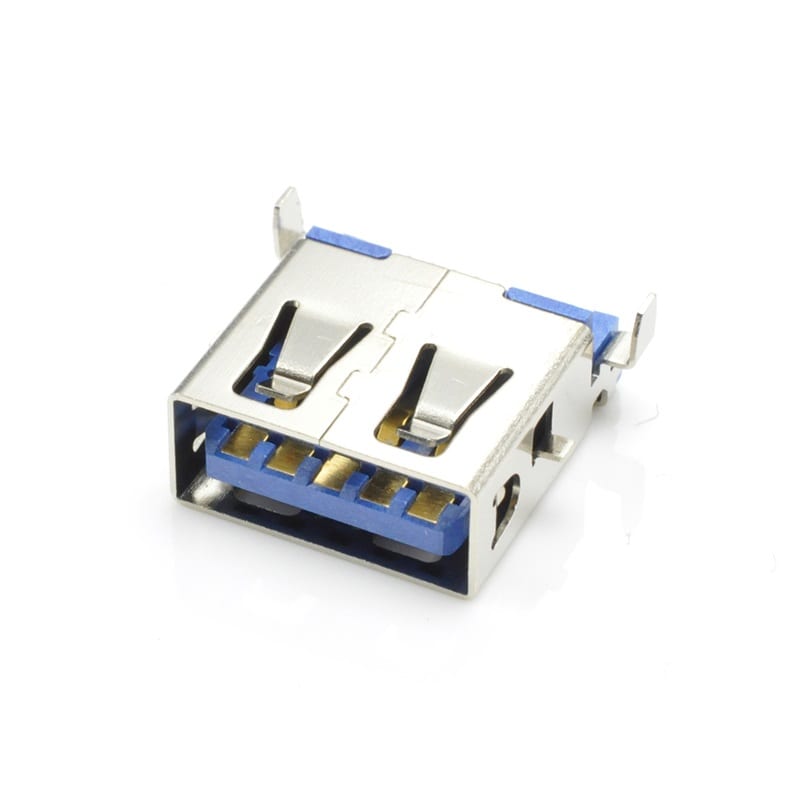

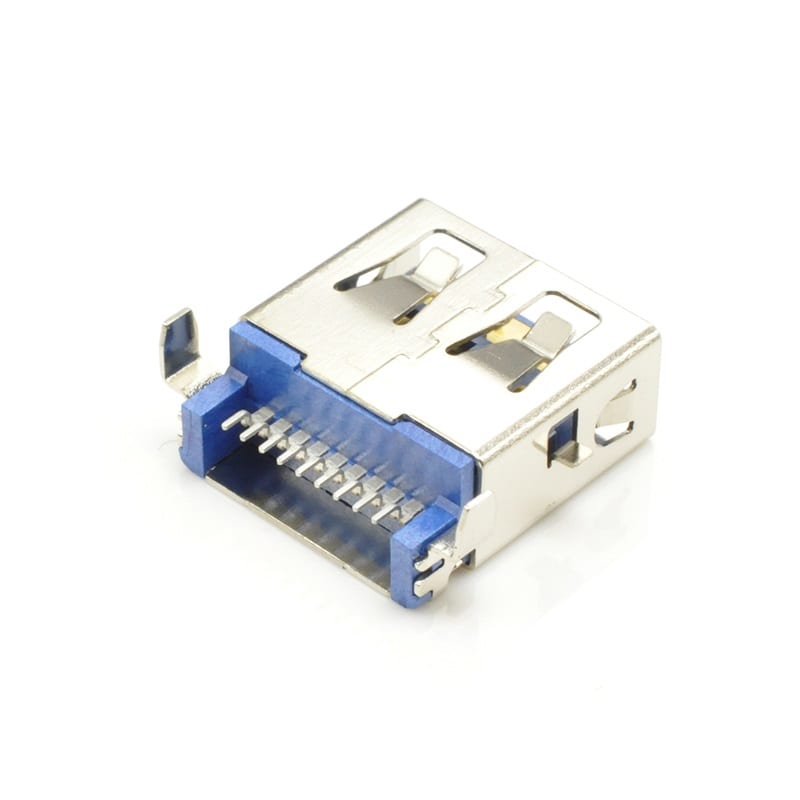

Product photos
Specifications
| Type | USB 3.0 |
|---|---|
| Circuits | 9pin |
| Current rating | 1.5A |
| Series | U03S0002B |
| Material | LCP UL 94V-0, Bronze, Brass |
|---|---|
| Gender | Female |
| Withstanding Voltage | 500V AC/ |
| Temperature Range | -40℃～+85℃ |
| Contact Resistance | 30mΩ/ |
| Insulation Resistance | 1000MΩ/ |
| Mating Force | 3.57Kg Max |
