U02S0006B Series USB2.0 A Type 4 Pin AF DIP Straight Female Curved Feet Connector
Circuits 4pin · Current 1.5A
- Circuits
- 4pin
- Current
- 1.5A
U02S0006B Series, USB 2.0 A Receptacle, 4 Pin, Female, Vertical, DIP Type, Edge Curl, Curved Feet, 13.00mm Height.

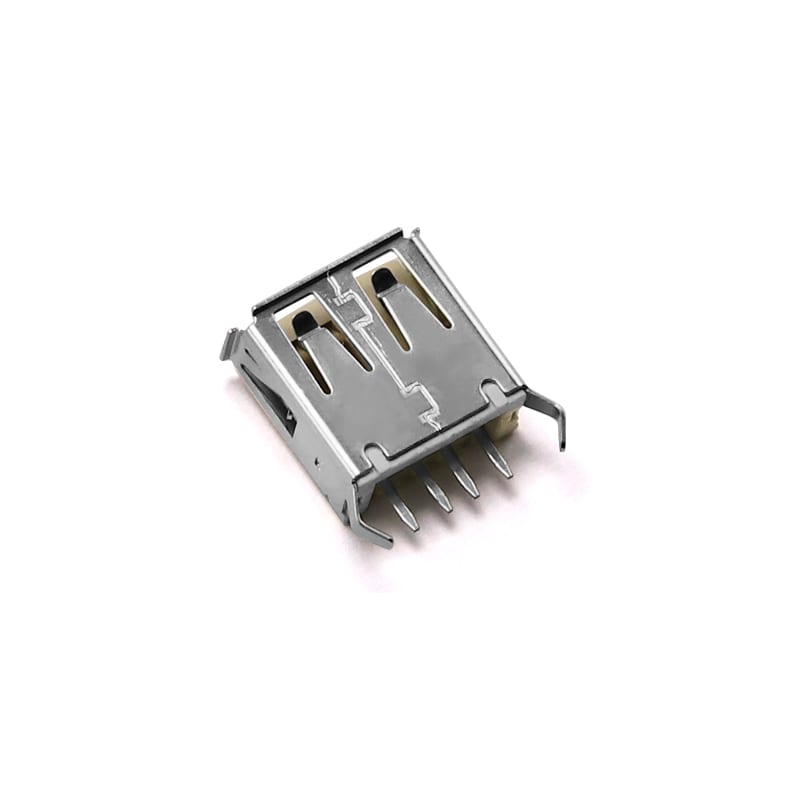

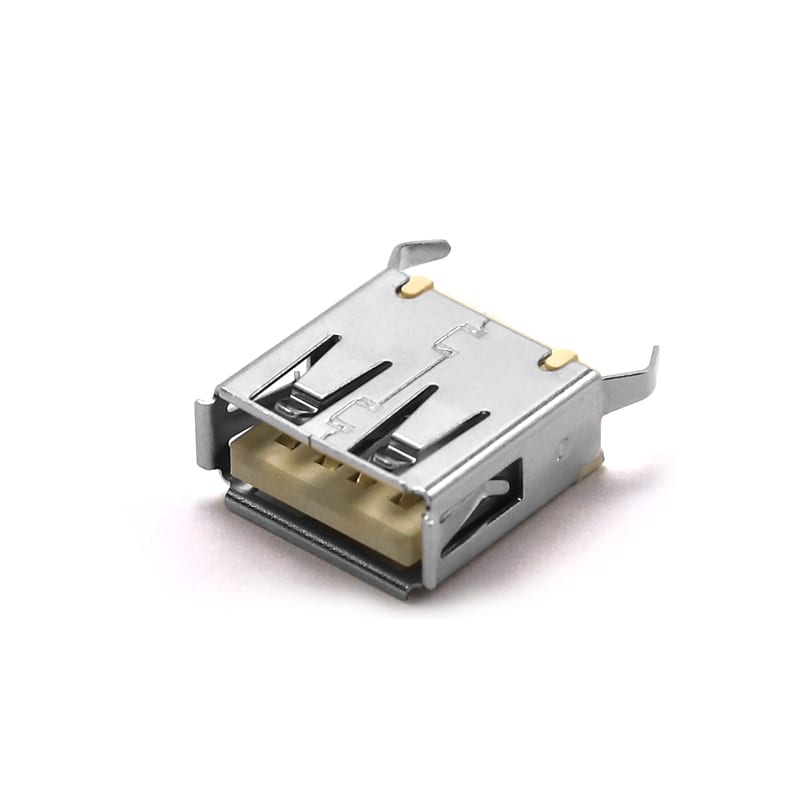

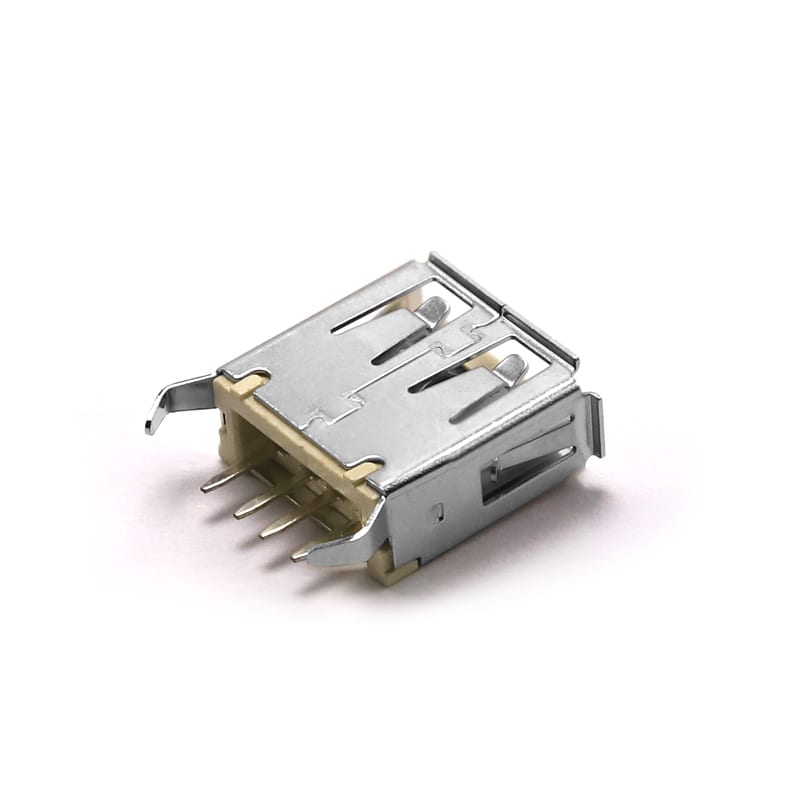

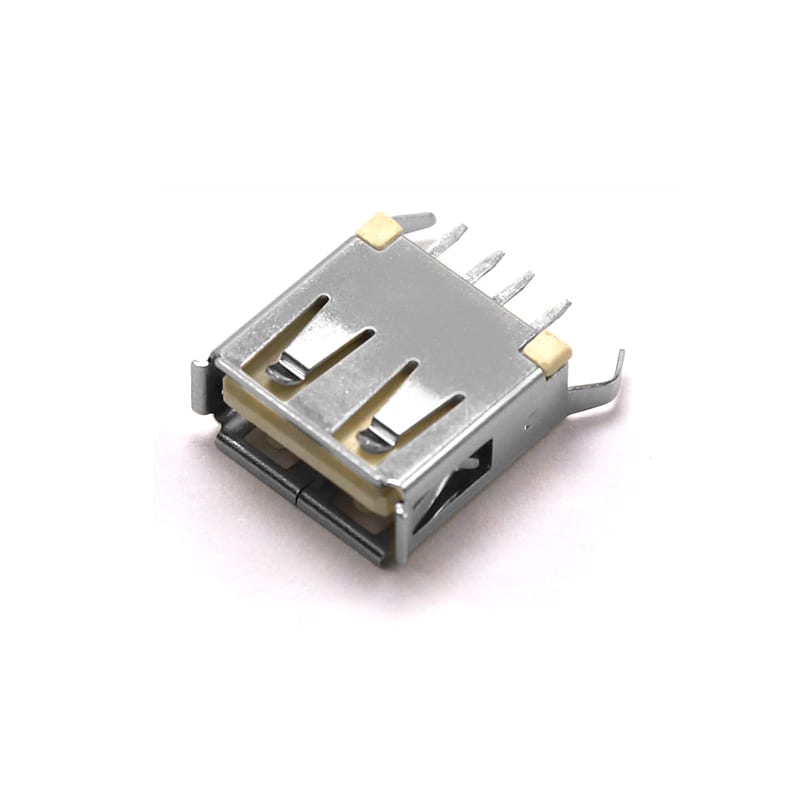

Product photos
Specifications
| Type | USB 2.0 |
|---|---|
| Circuits | 4pin |
| Current rating | 1.5A |
| Series | U02S0006B |
| Material | LCP UL94-V0, Brass, SPCC/ |
|---|---|
| Gender | Female |
| Withstanding Voltage | 500V AC/ |
| Temperature Range | -55℃～+85℃ |
| Contact Resistance | 50mΩ/ |
| Insulation Resistance | 500MΩ/ |
| Mating Force | 3.5Kgf Max |
