U02S0001B Series USB2.0 A Type DIP Straight Female 5Pin Harpoon Foot Short-body USB Connector
Circuits 5pin · Current 1.5A
- Circuits
- 5pin
- Current
- 1.5A
U02S0001B Series, USB 2.0 A Receptacle, 5 Pin, Female, Vertical,DIP Type, Harpoon Foot, 10.00mm Height, Short-body USB.

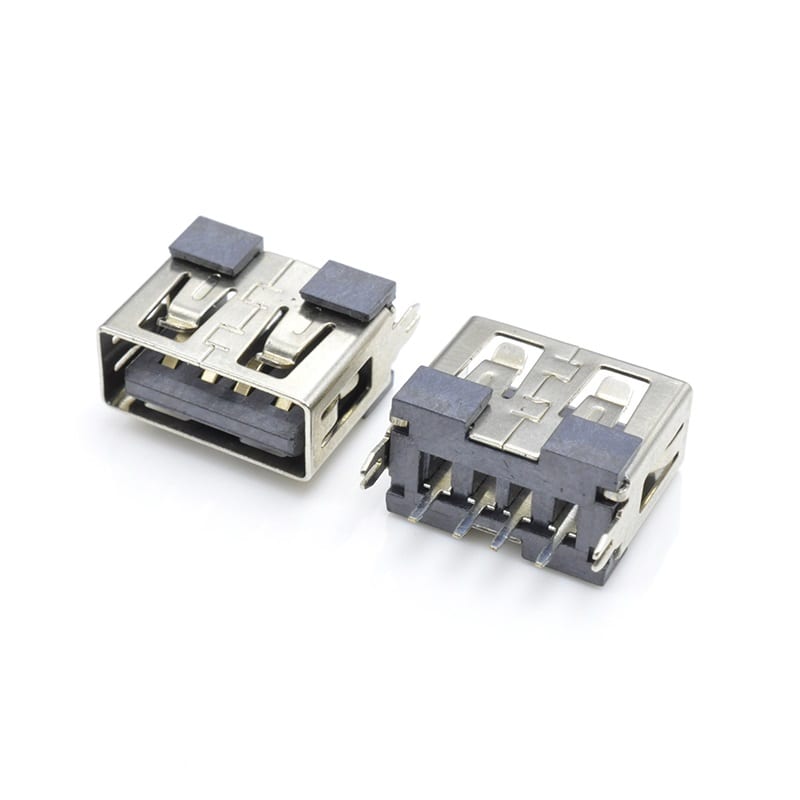

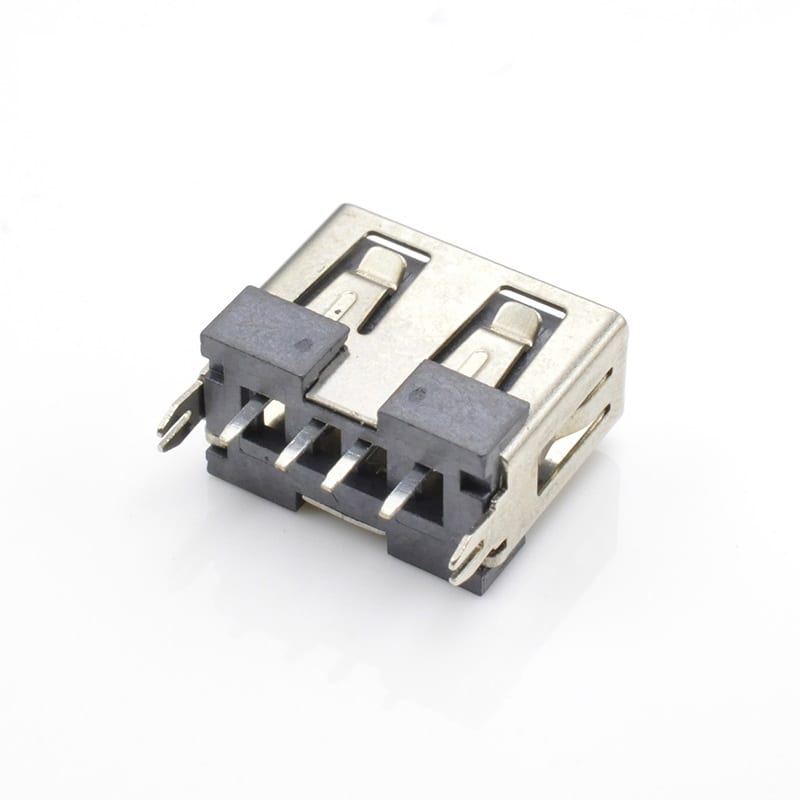

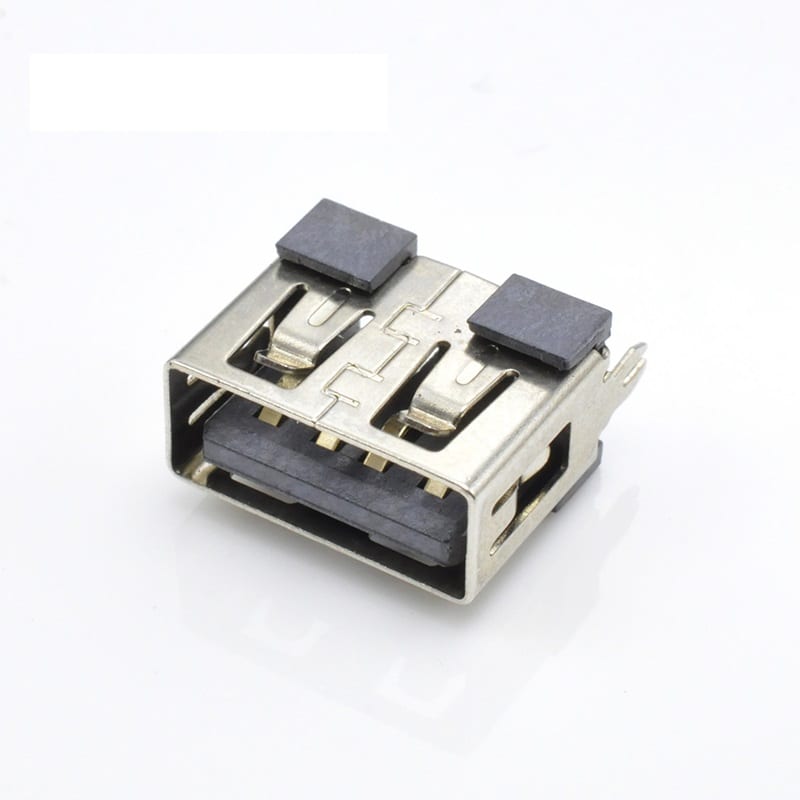

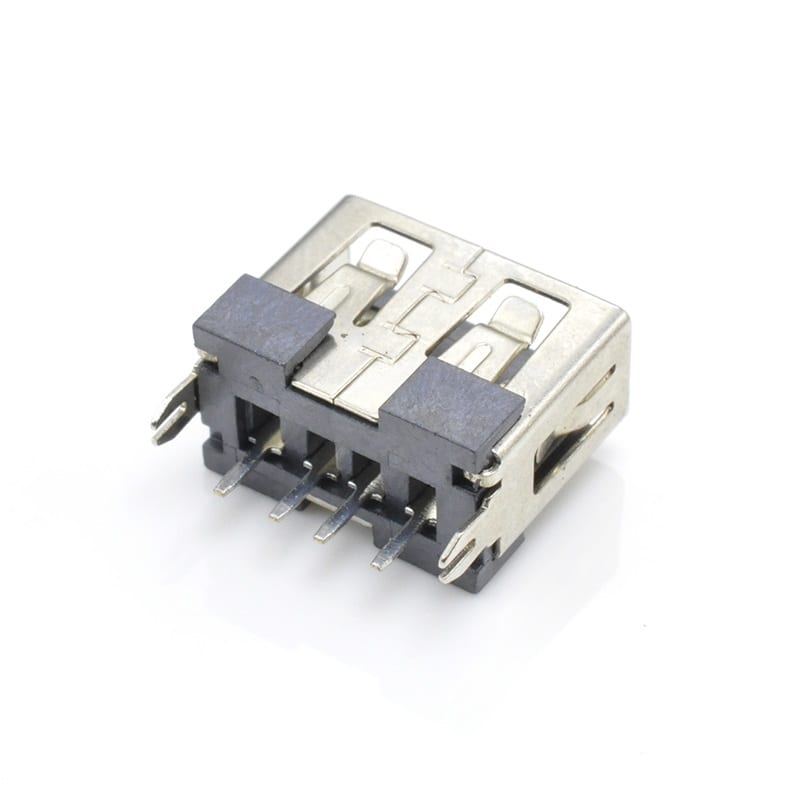

Product photos
Specifications
| Type | USB 2.0 |
|---|---|
| Circuits | 5pin |
| Current rating | 1.5A |
| Series | U02S0001B |
| Material | High temperature thermoplastic with g.f, UL94v-0, copper alloy |
|---|---|
| Gender | Female |
| Withstanding Voltage | 500V AC/ |
| Temperature Range | -30℃～+80℃ |
| Contact Resistance | 30mΩ/ |
| Insulation Resistance | 1000MΩ/ |
| Total Mating Force | 3.57 Kgf Max |
