C0501 Series LVDS 51Pin FPC Connector (Front Flip type)
C0501 — Pitch 0.50mm · Circuits 51pin · Current 2A · Voltage 100V

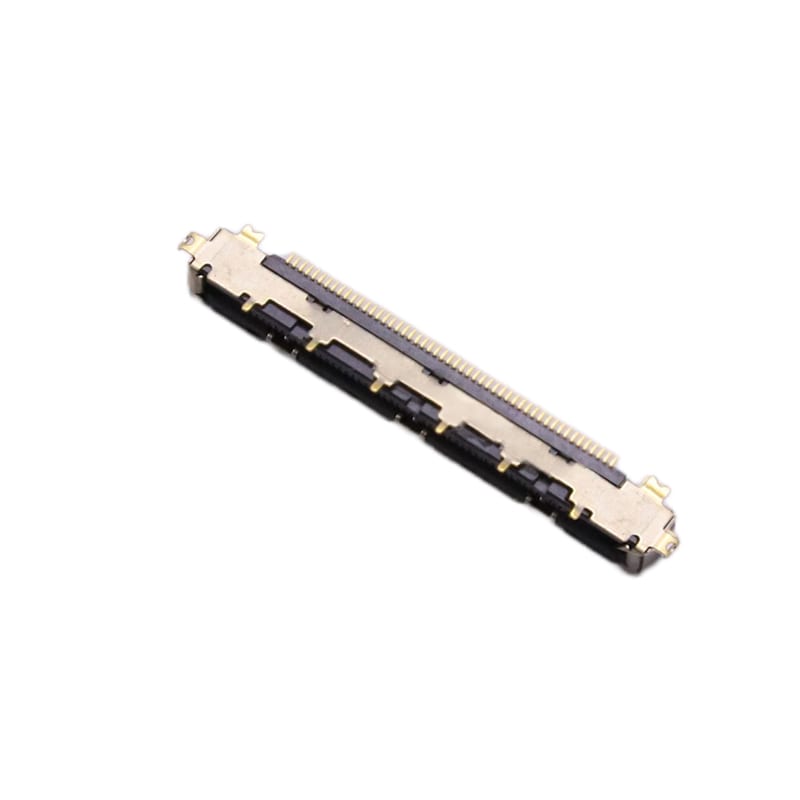

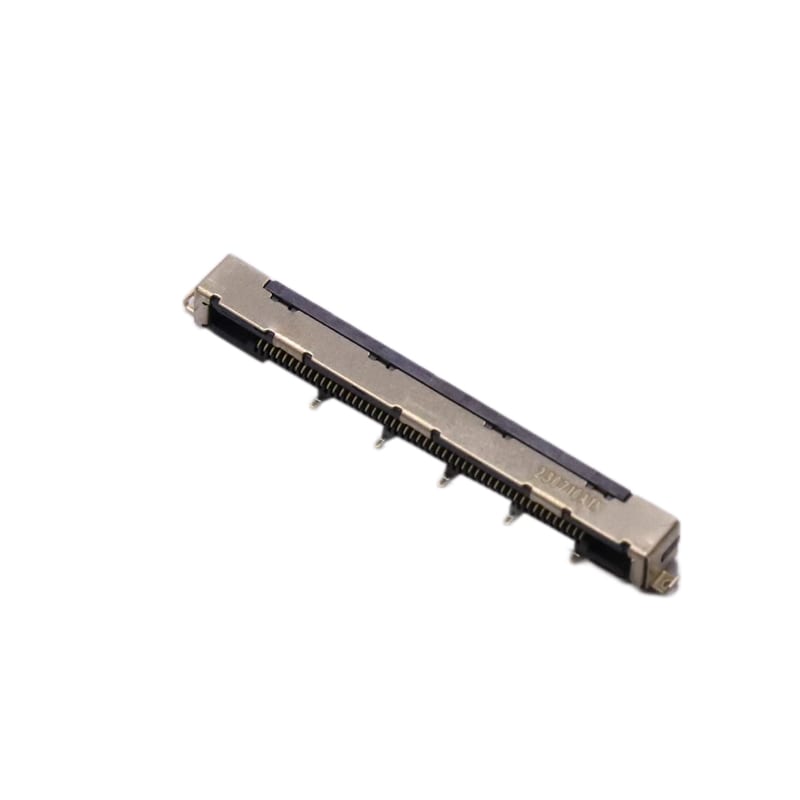

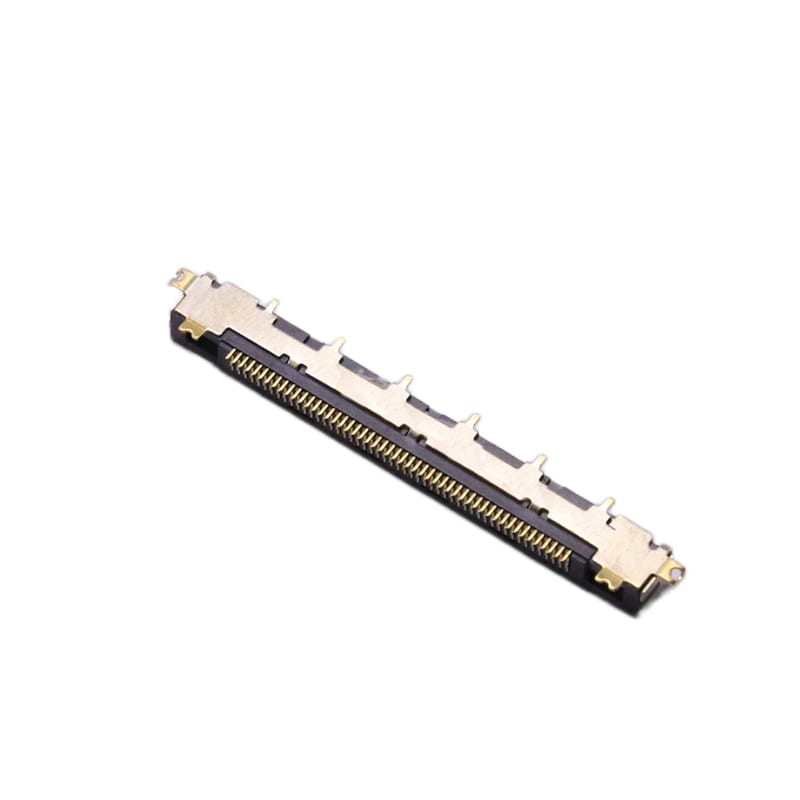

Product photos
- Series: C0501
- Pitch: 0.50mm
- FFC/FPC Connector
- Pitch
- 0.50mm
- Circuits
- 51pin
- Current
- 2A
- Voltage
- 100V
FPC connectors are made of high quality materials, the housing is black high-temperature thermoplastic material, which meets UL94V-0 fire safety standards to ensure safety performance. The contact point is made of 0.18mm thick copper alloy to ensure good conductivity and durability. The housing is made of SUS 304 stainless steel, also 0.18mm thick, to enhance the stability of the overall structure.
Specifications
| Pitch | 0.50mm |
|---|---|
| Circuits | 51pin |
| Current | 2A |
| Voltage | 100V |
| Material | THERMOPLASTIC/ |
|---|---|
| Withstanding Voltage | 250V AC/ |
| Temperature Range | -40℃～+105℃ |
| Contact Resistance | 20mΩ/ |
| Insulation Resistance | 500MΩ/ |
| Product Plating | AU3μ” MIN OVER NI 30μ”Min |
Description
The contact area and SMD area are plated with at least 3μ” nickel layer and covered with at least 3μ” gold layer for excellent electrical connection and oxidation resistance.
With 51 pins and 0.5mm pitch, the compact design of this FPC is suitable for high-density signal transmission, especially for LVDS applications that require high-speed, low-noise signal transmission, such as high-definition video displays and high-speed data transmission systems.
Known for its high-speed transmission capability, this can easily handle large amounts of data and meet the needs of modern high-speed data transmission systems.
Adopting differential signal transmission method, i.e., the signal is transmitted through a pair of differential lines, this method can effectively suppress common mode noise and electromagnetic interference (EMI). As a result, the purity of the signal can be maintained during transmission, improving the reliability of signal transmission.
FPC connectors are able to maintain low signal distortion during long distance transmission, thanks to its differential signal transmission method and low voltage swing. Therefore, the connector is suitable for application scenarios that require long distance signal transmission.
Adopting high-quality materials and advanced manufacturing process, it has good durability and reliability. It can withstand certain mechanical stress and environmental pressure, ensuring stable operation even in harsh working environments.
It has a wide range of applications in a number of fields, including LCD monitors, industrial automation equipment, laptops, tablet PCs and so on. With the continuous improvement of the display effect and transmission speed requirements of consumer electronic products, the application prospect of FPC connectors will be even broader.
Features
- High-speed transfer capability
- Low noise and crosstalk
- Long distance transmission capability
- High reliability
- Widely used
