F0300 Series
F0300 — Pitch 0.30mm · Circuits 13-71pin · Current 0.2A · Voltage 30V
- Series: F0300
- Pitch: 0.30mm
- FFC/FPC Connector
- Pitch
- 0.30mm
- Circuits
- 13-71pin
- Current
- 0.2A
- Voltage
- 30V
FPC connector, SMT Wafer single row.

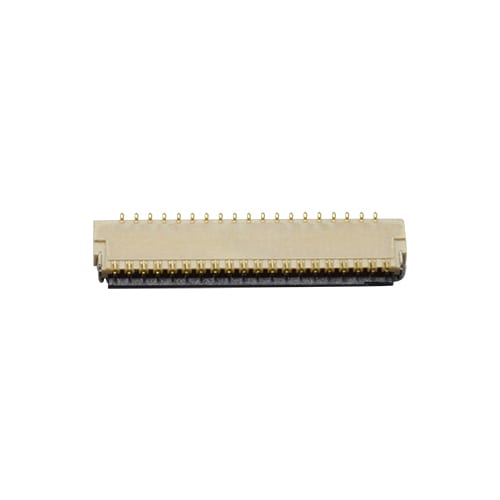

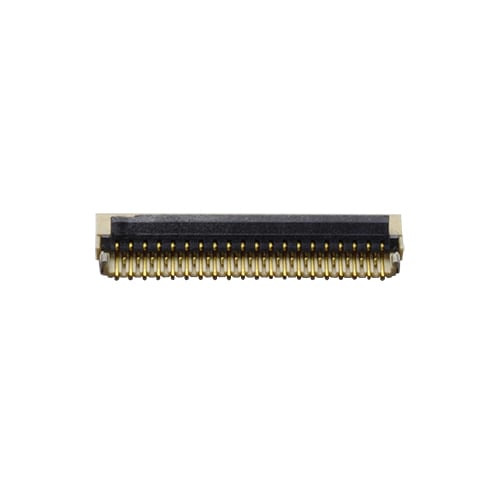

Product photos
Specifications
| Pitch | 0.30mm |
|---|---|
| Circuits | 13-71pin |
| Current | 0.2A |
| Voltage | 30V |
| Material | LCP/ |
|---|---|
| Withstanding Voltage | 250V AC/ |
| Temperature Range | -55℃～+85℃ |
| Contact Resistance | 40mΩ/ |
| Insulation Resistance | 50MΩ/ |
| Product Plating | Gold flash/ |
