Name: F0503 Series 0.5mm Pitch 68Pin FFC Connector(Front Flip Type)
Brand: Konnra
SKU: F0503

F0503 Series 0.5mm Pitch 68Pin FFC Connector(Front Flip Type) (1/4)

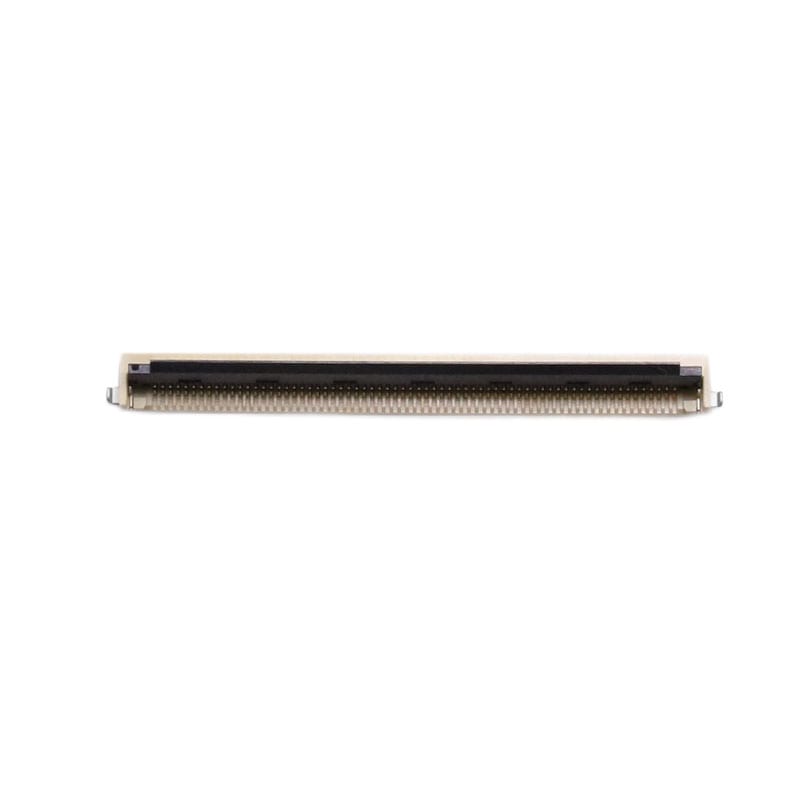

F0503 Series 0.5mm Pitch 68Pin FFC Connector(Front Flip Type) (2/4)

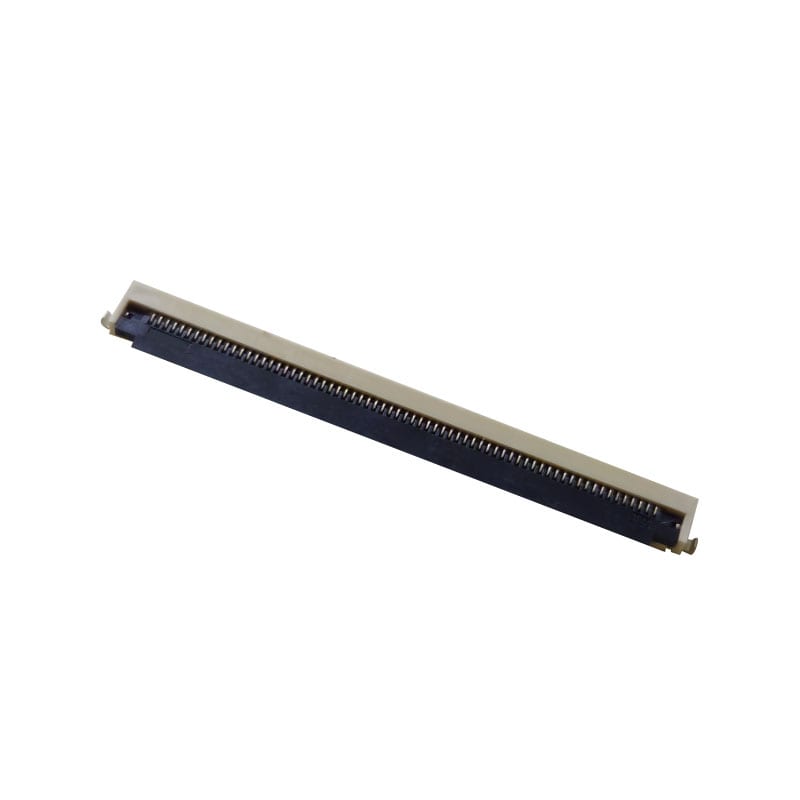

F0503 Series 0.5mm Pitch 68Pin FFC Connector(Front Flip Type) (3/4)

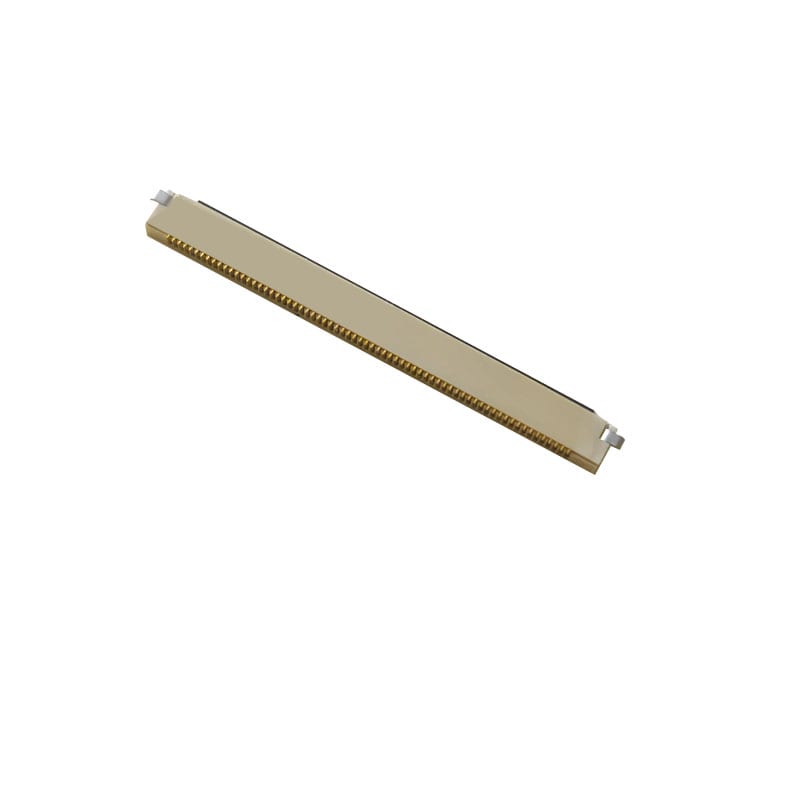

F0503 Series 0.5mm Pitch 68Pin FFC Connector(Front Flip Type) (4/4)

Product photos

Pitch: 0.50mm
Circuits: 68pin
Current: 2A
Voltage: 100V

The FFC 68.4 CONN (FRONT FLIP) is a connector made of advanced materials. The housing and actuator are made of UL94V-0 compliant thermoplastic material in natural and black colours respectively to ensure safety and durability. The terminals of the connector are made of phosphor bronze base material with a nickel plating of 50 μ” or more, a gold plating of at least 3 μ” in the contact area and at least 1 μ” in the soldering area to improve electrical conductivity and corrosion resistance.

Request sample Engineering Drawing Package Specification

Specifications

Key specifications
Pitch	0.50mm
Circuits	68pin
Current	2A
Voltage	100V

General specification
Material	LCP/UL94V-0/Phosphor Bronze/Brass
Withstanding Voltage	250V AC/ minute
Temperature Range	-40℃～+105℃
Contact Resistance	20mΩ/max
Insulation Resistance	500MΩ/ min
Product Plating	Gold Flash Over Ni 30μ” Min

Description

The assembly nails are made of brass with a nickel plating of at least 50 μ” and are fully covered with a matte tin plating of at least 100 μ” to enhance durability. Designed with 0.5mm pin spacing and 1.8mm height, it is suitable for TVs, panels, and other applications, and features a front flip design for easy installation and maintenance.

Made of UL94V-0 compliant thermoplastic material with excellent flame retardant properties to ensure safer use in electronic devices. At the same time, the high-quality material selection also enhances the durability and service life of the product.

Adopting phosphor bronze base material and through multi-layer gold and nickel plating treatment, it effectively reduces contact resistance and improves conductivity, ensuring stable signal transmission.

The gold-plated and nickel-plated surface treatment not only enhances the conductivity, but also strengthens the connector’s resistance to harsh environments, such as moisture, oxidation, etc., thus prolonging the product’s service life.

The unique front flip design makes the connector easier and faster to install, and also facilitates subsequent maintenance and replacement, reducing the cost of use and time costs.

Suitable for a variety of application scenarios, such as TVs, panels, etc., showing its good versatility and flexibility to meet the needs of different devices on the connector.
