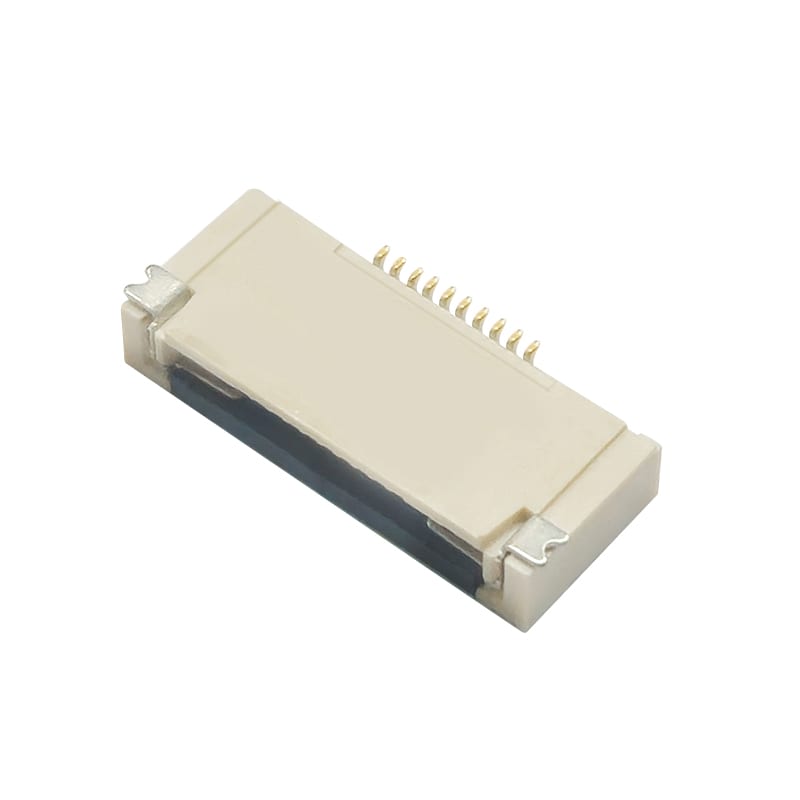

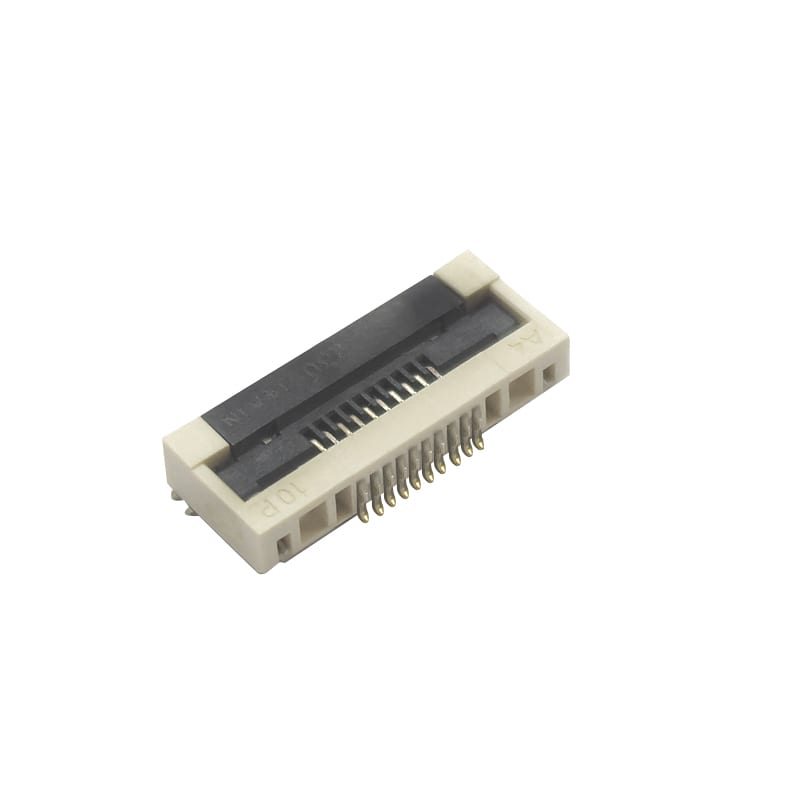

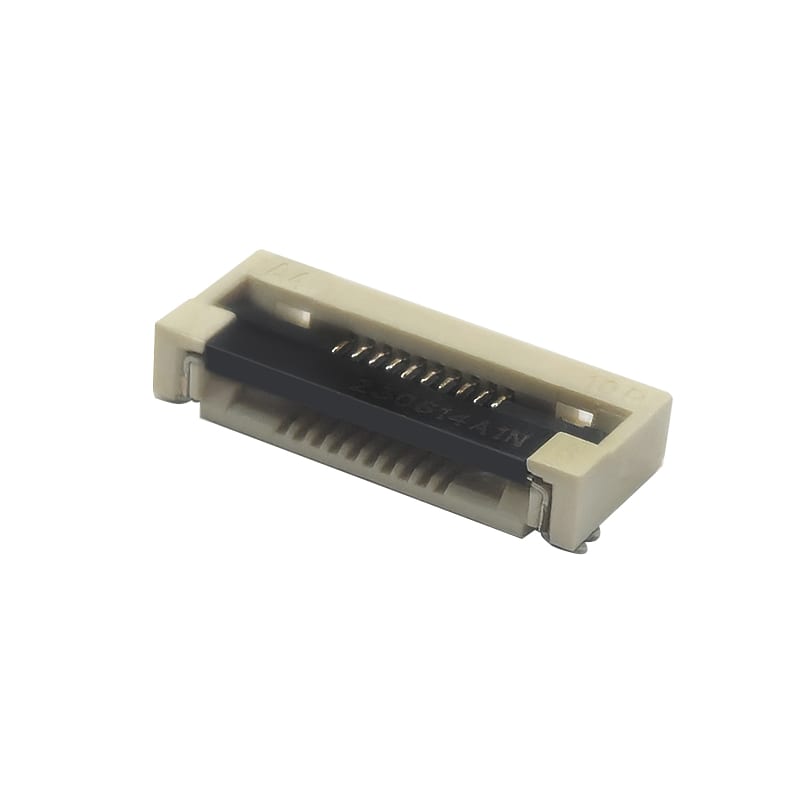

F0506 Series 0.5mm Pitch 10Pin FPC Connector(Front Flip Type)

Description

The F0506 series FFC connectors, including 10.1, 12.1, and 16.1 pin versions, are designed for high-performance electronic devices. They are made of flame retardant UL94V-0 thermoplastic material for the housing and lever to ensure safety and durability. The contacts and pins are gold-plated to provide excellent conductivity and corrosion resistance, and the pins are covered with a nickel layer to enhance adhesion.

The connectors support 0.5mm pitch and 2.2mm height, and are suitable for a variety of circuit configurations (10/12/16pin), and are widely used in TVs, panels, and other electronic devices to achieve efficient and stable signal transmission.

The housing and operating rod are made of thermoplastic material with flame retardant rating UL94V-0, which has good flame retardant properties and can effectively prevent the spread of fire and improve the safety of the equipment. Meanwhile, the contact points and pins are made of copper alloy material with gold and nickel plating, providing excellent conductivity and corrosion resistance to ensure stable signal transmission.

The connector supports a pitch of 0.5mm and a height of 2.2mm, which makes it easy to install in space-constrained electronic devices, helping to save space and improve device integration.

Provides multiple circuit configuration options such as 10pin, 12pin, 16pin, etc., which can meet the connection needs of different electronic devices with high flexibility and applicability.

Due to the use of high-quality materials and precision manufacturing process, the FFC connector can maintain low loss and interference in the signal transmission process, ensuring signal stability and reliability.

Widely used in TVs, panels and other electronic equipment, especially in the need for high-frequency signal transmission and high-speed data processing occasions, can play an excellent performance.
