F0501 Series
F0501 — Pitch 0.50mm · Circuits 4-60pin · Current 0.4A · Voltage 50V
- Series: F0501
- Pitch: 0.50mm
- FFC/FPC Connector
- Pitch
- 0.50mm
- Circuits
- 4-60pin
- Current
- 0.4A
- Voltage
- 50V
FPC connector, SMT Wafer single row.

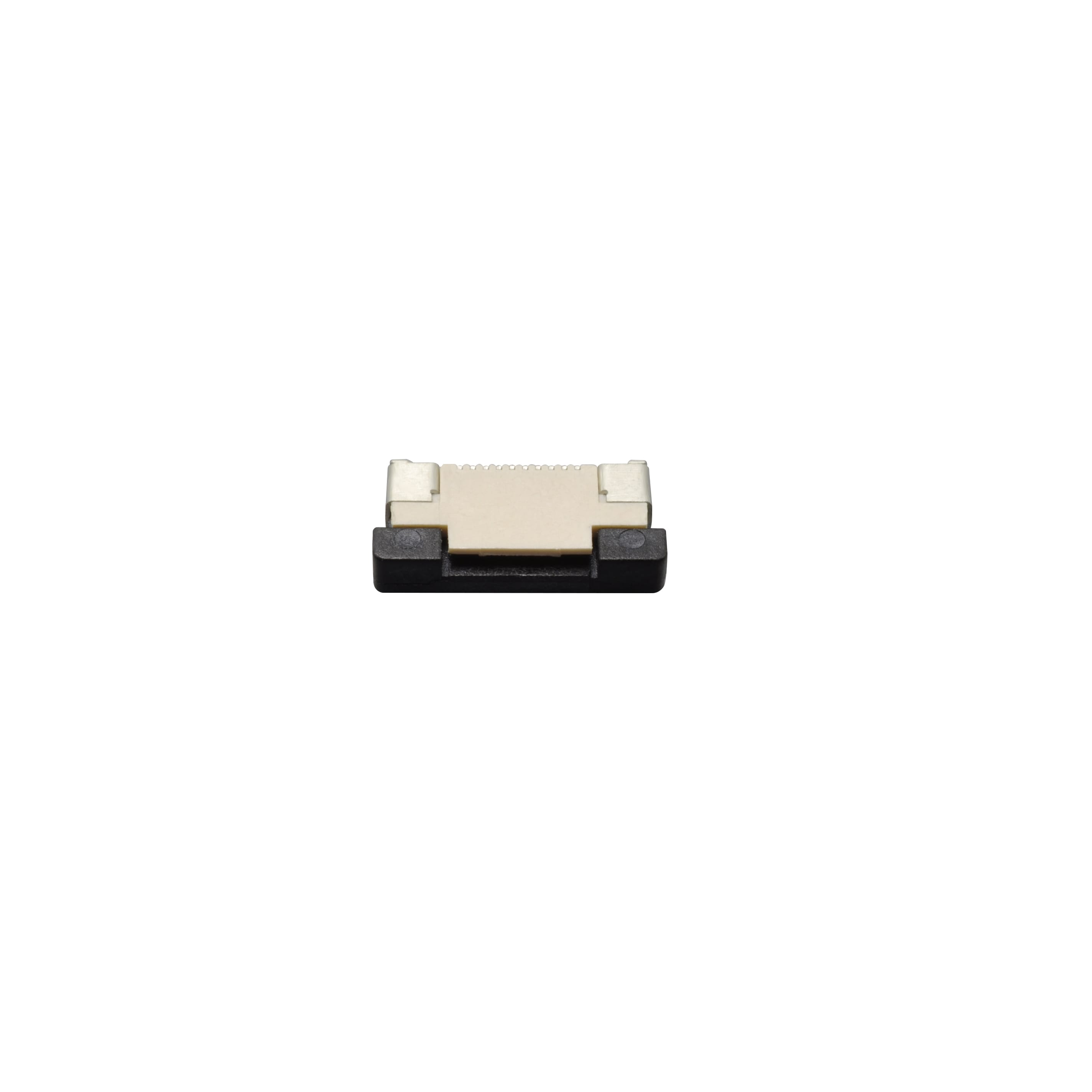

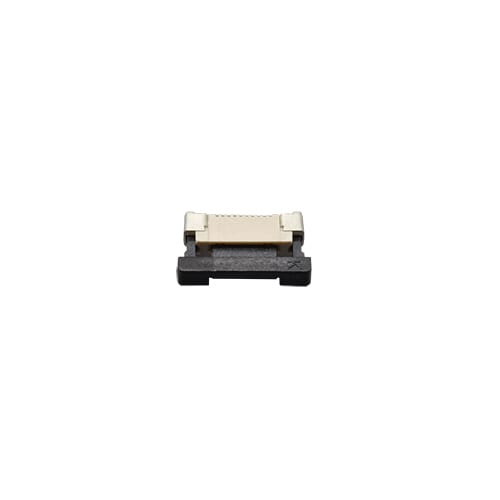

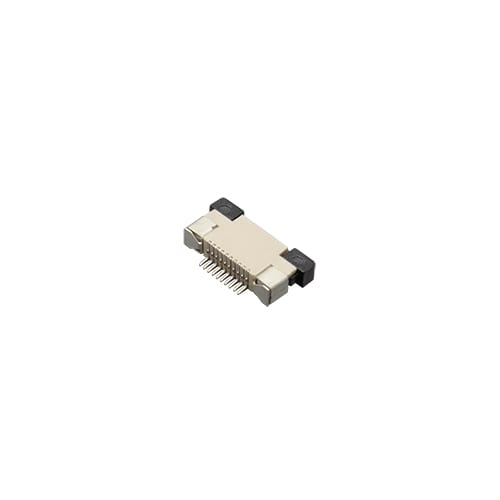

Product photos
Specifications
| Pitch | 0.50mm |
|---|---|
| Circuits | 4-60pin |
| Current | 0.4A |
| Voltage | 50V |
| Material | LCP/ |
|---|---|
| Withstanding Voltage | 250V AC/ |
| Temperature Range | -25℃～+85℃ |
| Contact Resistance | 30mΩ/ |
| Insulation Resistance | 100MΩ/ |
| Product Plating | Tin over Nickel |
