QZ000372 Series 0.8mm Pitch 3SETS 12Pin Plug Connector
Pitch 0.80mm · Circuits 12pin · Current 2A · Voltage 100V
- Pitch
- 0.80mm
- Circuits
- 12pin
- Current
- 2A
- Voltage
- 100V
FPC connector, SMT Wafer single row.

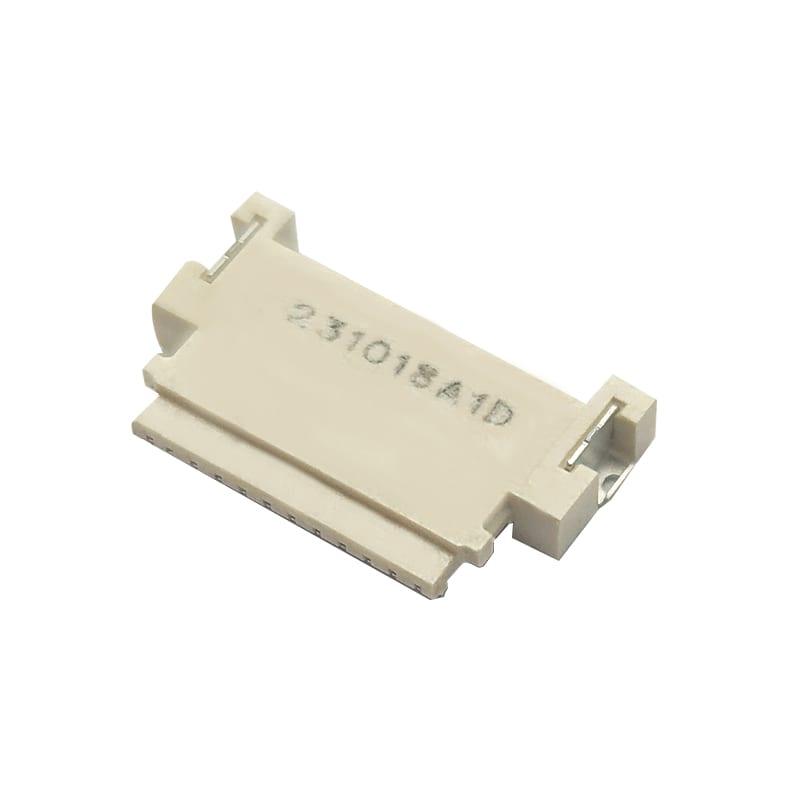

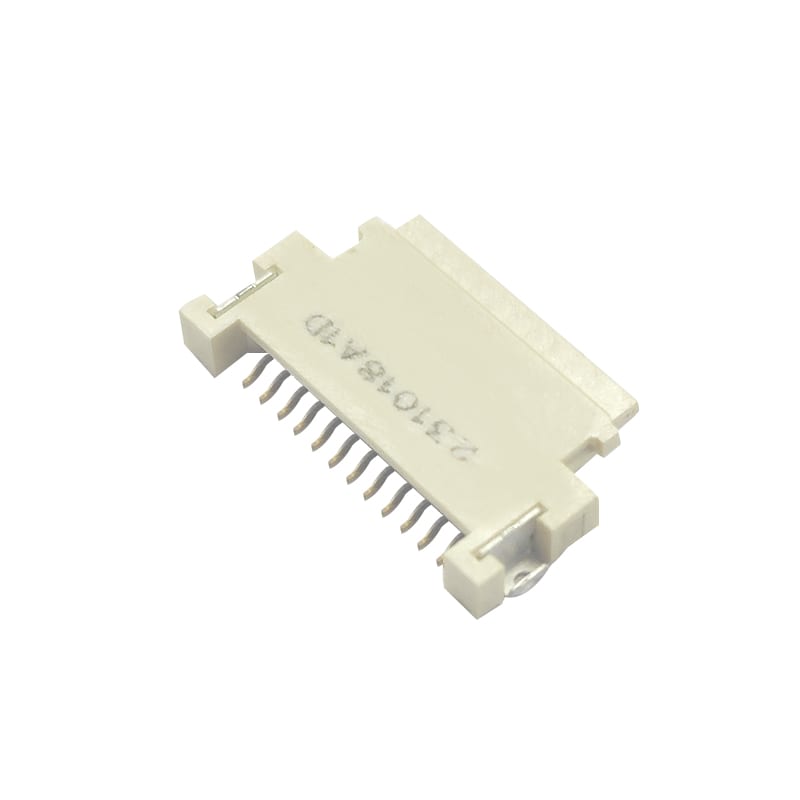

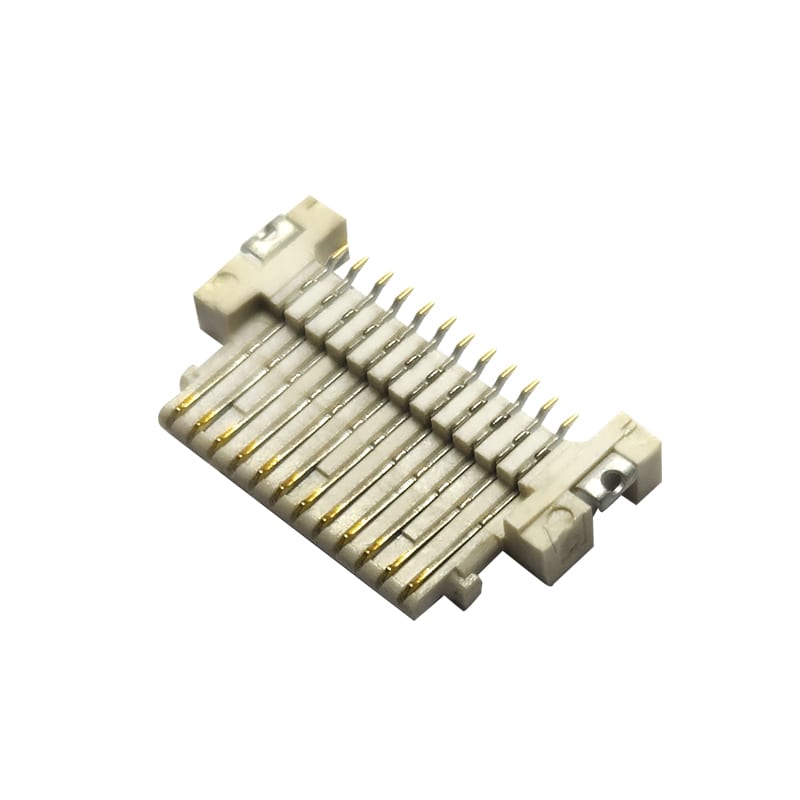

Product photos
Specifications
| Pitch | 0.80mm |
|---|---|
| Circuits | 12pin |
| Current | 2A |
| Voltage | 100V |
| Material | Height Termoplastic/ |
|---|---|
| Withstanding Voltage | 250V AC/ |
| Temperature Range | -40℃～+105℃ |
| Contact Resistance | 20mΩ/ |
| Insulation Resistance | 500MΩ/ |
| Product Plating | Gold Flash Over Ni 30μ” Min |
Description
The QZ000372 series of FPC connectors are designed for mini LED TV backlighting. The connector housing is made of white flame retardant thermoplastic material, the contacts are phosphor bronze plated covered with nickel backing, and the pins are stainless steel with tin plated finish.
Support -40 ° C to 105 ° C wide temperature operation, voltage up to 100V AC / DC, rated current 2.0 amps. Highly insulating with excellent withstand voltage testing and low contact resistance. Connector pitch 0.8mm, height 2.0mm, suitable for high density, high reliability TV backlight system connection.
The use of UL94V-0 grade thermoplastic material shell ensures stable operation in high temperature environments, and also has good flame retardant properties to improve the safety of use.
The contact part is made of phosphor bronze and covered with a nickel base through a gold plating layer, which effectively reduces the contact resistance and improves the conductivity to ensure the stability and efficiency of signal transmission.
The pins are made of stainless steel with tin-plated surface, which enhances the corrosion resistance, extends the service life of the connector and adapts to various complex environments.
Supporting -40°C to 105°C wide temperature operation, ensuring that the connector can work reliably under different temperature conditions to meet the needs of diverse application scenarios.
High insulation resistance (≥500MΩ) and high withstand voltage capability (250V AC/minute), effectively preventing electrical leakage and breakdown and safeguarding circuit safety.
Features
- High heat resistance and flame retardancy
- Excellent electrical conductivity
- High corrosion resistance
- Wide temperature operating range
- High Electrical Performance
