C1001 Series 1.00mm Pitch 32Pin FPC Connector(On Type)

Name: C1001 Series 1.00mm Pitch 32Pin FPC Connector(On Type)
Brand: Konnra
SKU: C1001

C1001 — Pitch 1.00mm · Circuits 32pin · Current 2A · Voltage 100V

C1001 Series 1.00mm Pitch 32Pin FPC Connector(On Type) (1/4)

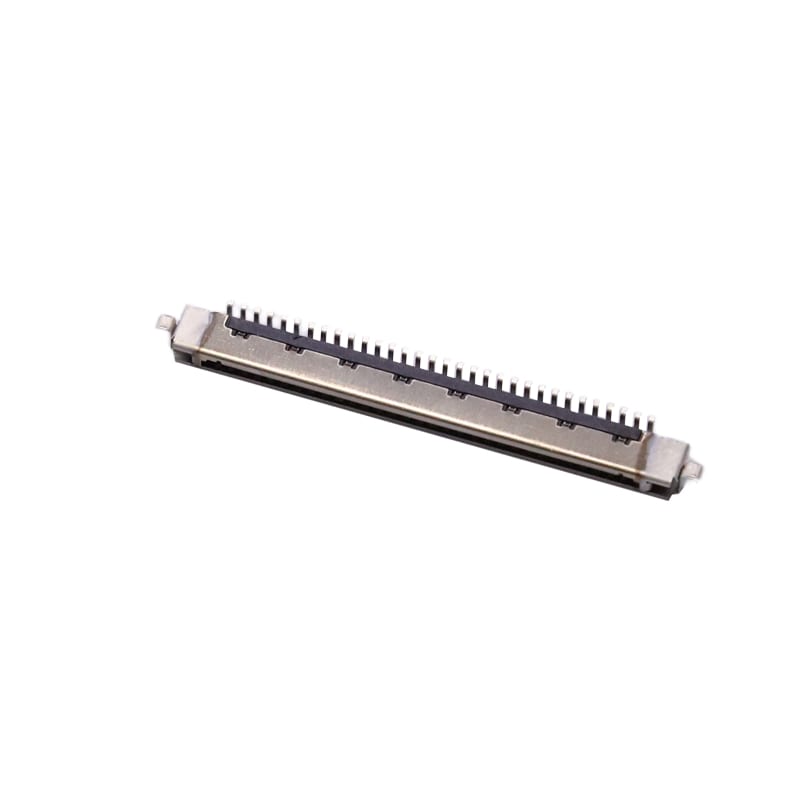

C1001 Series 1.00mm Pitch 32Pin FPC Connector(On Type) (2/4)

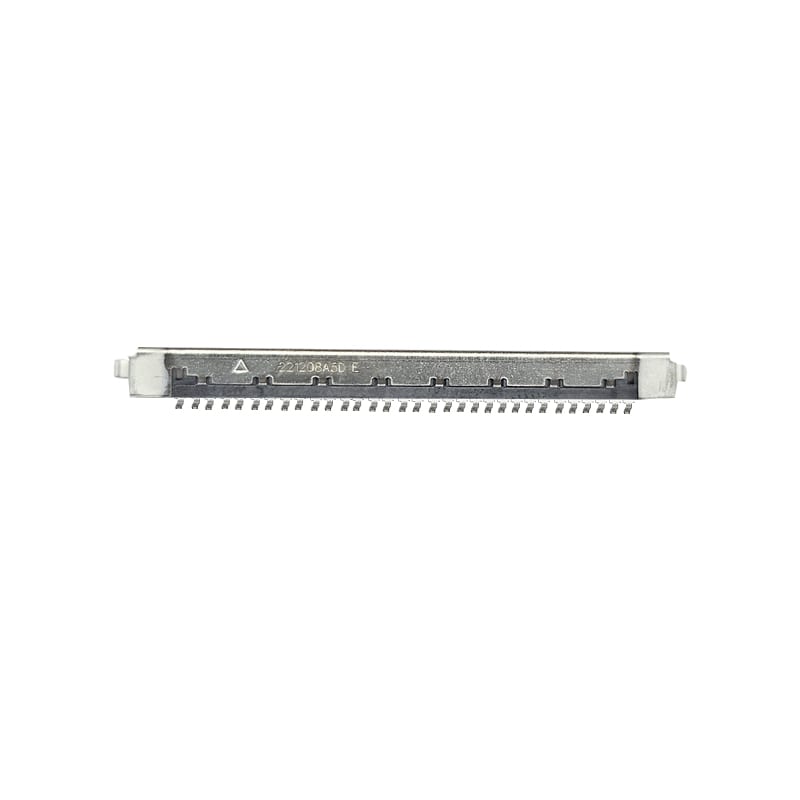

C1001 Series 1.00mm Pitch 32Pin FPC Connector(On Type) (3/4)

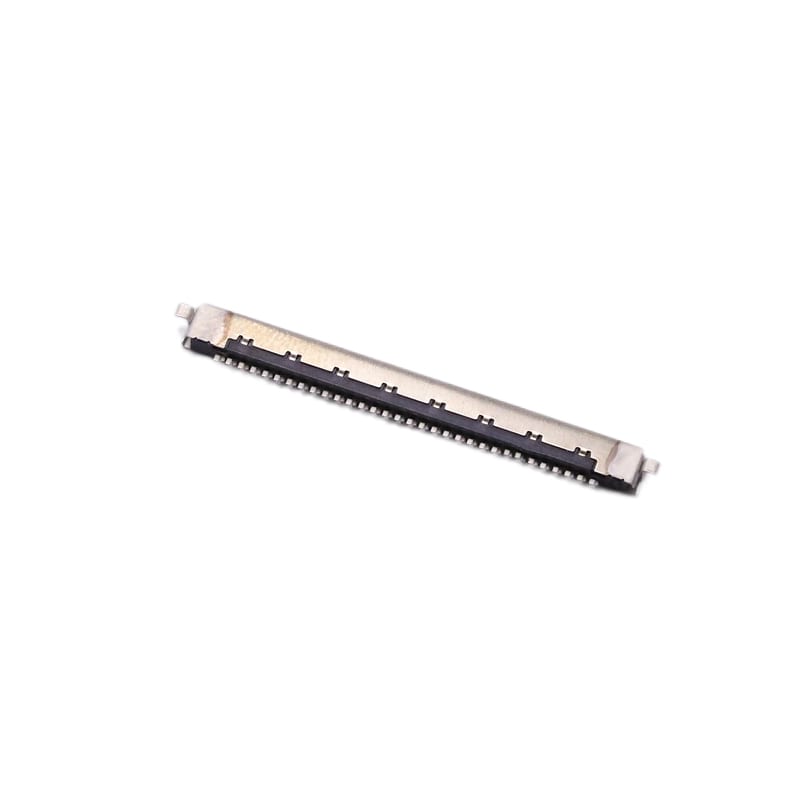

C1001 Series 1.00mm Pitch 32Pin FPC Connector(On Type) (4/4)

Product photos

Pitch: 1.00mm
Circuits: 32pin
Current: 2A
Voltage: 100V

C1001 Series LVDS REC. 30P CONNECTOR ON TYPE is an FPC connector designed for TV, panel and other applications. It is made of heat-resistant UL94V-0 rated thermoplastic material housing to ensure safety and stability. The contact part is made of 0.15mm thick copper alloy with 1μ”-3μ” gold plating on the surface to enhance the conductivity and corrosion resistance. The housing is made of 0.15mm stainless steel, covered with at least 50μ” matte tin layer and nickel-plated inside to ensure lead-free and environmentally friendly.

Request sample Engineering Drawing Package Specification

Specifications

Key specifications
Pitch	1.00mm
Circuits	32pin
Current	2A
Voltage	100V

General specification
Material	Height Thermoplastic/UL94V-0/Copper Alloy/Stainless Steel
Withstanding Voltage	250V AC/ minute
Temperature Range	-40℃～+105℃
Contact Resistance	20mΩ/max
Insulation Resistance	500MΩ/ min
Product Plating	1μ”-3μ” GOLD PLATING ON CONTACT AREA

Description

The connector has a 30-pin design with a pitch of 1.00mm and a height of 2.25mm, with a maximum coplanarity of 0.08mm between the terminal and the housing platen, ensuring accurate docking.

The connector shells are made of UL94V-0 compliant thermoplastic material. This material is known for its excellent heat resistance and maintains stable physical and chemical properties even in high-temperature, harsh environments, which improves the durability and overall safety of the connector.

The contact part is made of 0.15mm thick copper alloy, which has good electrical conductivity and ensures efficient and accurate signal transmission. At the same time, the contact surface is plated with a 1μ”-3μ” gold layer, which not only improves the conductivity, but also enhances the corrosion resistance and extends the service life of the connector.

The housing surface is covered with at least 50μ” of matte tin layer, and the inner layer is nickel-plated. This design is not only aesthetically pleasing, but also meets the environmental protection requirements and realises lead-free production, which is conducive to environmental protection and sustainable development.

The connector has a 30-pin design with a pitch of 1.00mm and a height of 2.25mm, which allows the connector to maintain a high degree of accuracy when docking with other equipment, reducing signal transmission problems caused by inaccurate docking.

The connector is suitable for TV, panel and other application scenarios, which can meet the demand for high-speed and stable signal transmission in different fields.
