F1001 Series
F1001 — Pitch 1.00mm · Circuits 3-32pin · Current 0.5A · Voltage 50V
- Series: F1001
- Pitch: 1.00mm
- FFC/FPC Connector
- Pitch
- 1.00mm
- Circuits
- 3-32pin
- Current
- 0.5A
- Voltage
- 50V
FPC connector, SMT Wafer single row.

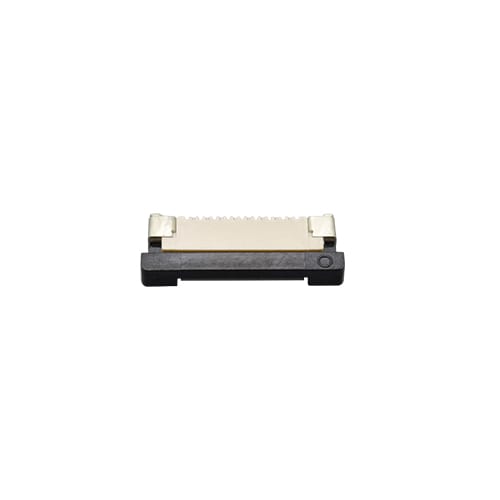

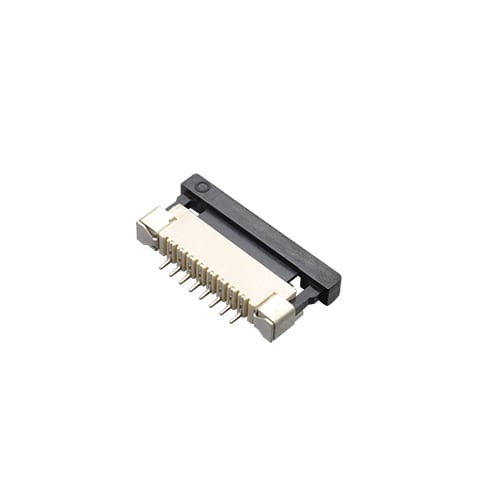

Product photos
Specifications
| Pitch | 1.00mm |
|---|---|
| Circuits | 3-32pin |
| Current | 0.5A |
| Voltage | 50V |
| Material | LCP/ |
|---|---|
| Withstanding Voltage | 250V AC/ |
| Temperature Range | -25℃～+85℃ |
| Contact Resistance | 20mΩ/ |
| Insulation Resistance | 500MΩ/ |
| Product Plating | Gold flash/ |
