F0507 Series 0.5mm Pitch 96Pin FFC Connector(Front Flip Type)

Name: F0507 Series 0.5mm Pitch 96Pin FFC Connector(Front Flip Type)
Brand: Konnra
SKU: F0507

F0507 — Pitch 0.50mm · Circuits 96pin

F0507 Series 0.5mm Pitch 96Pin FFC Connector(Front Flip Type) (1/4)

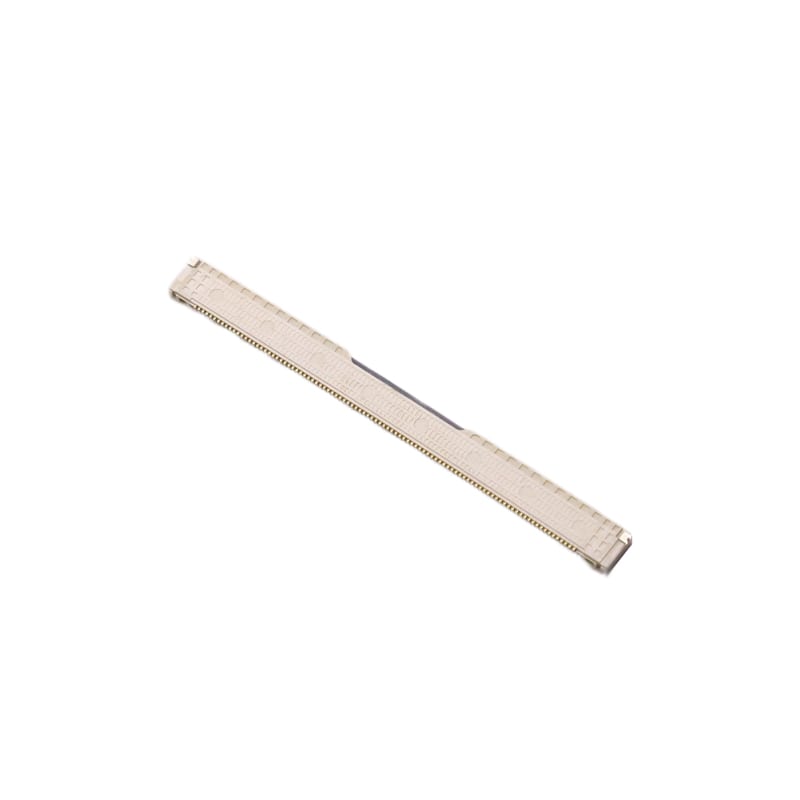

F0507 Series 0.5mm Pitch 96Pin FFC Connector(Front Flip Type) (2/4)

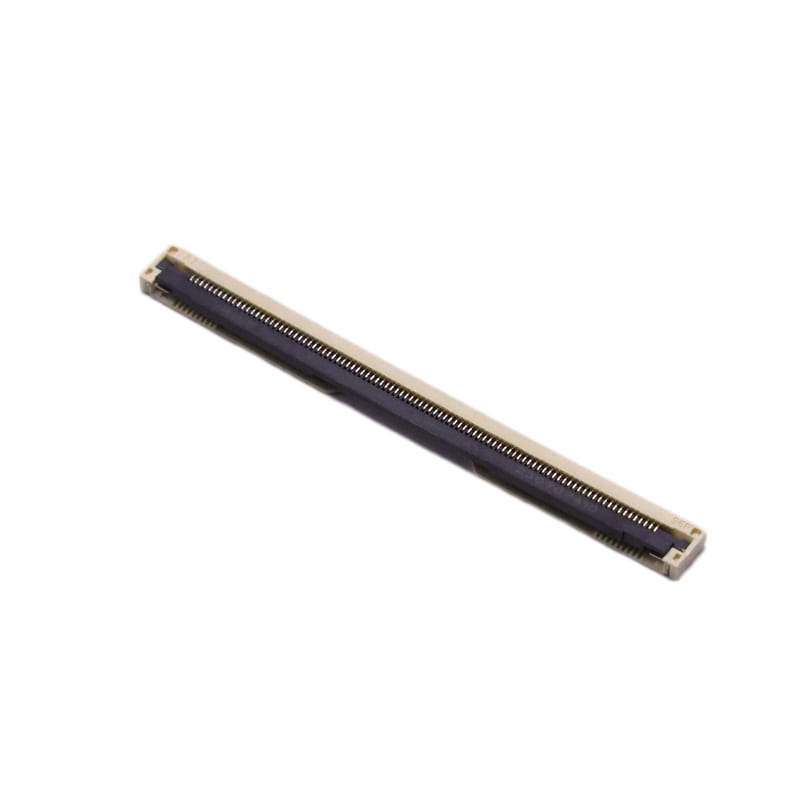

F0507 Series 0.5mm Pitch 96Pin FFC Connector(Front Flip Type) (3/4)

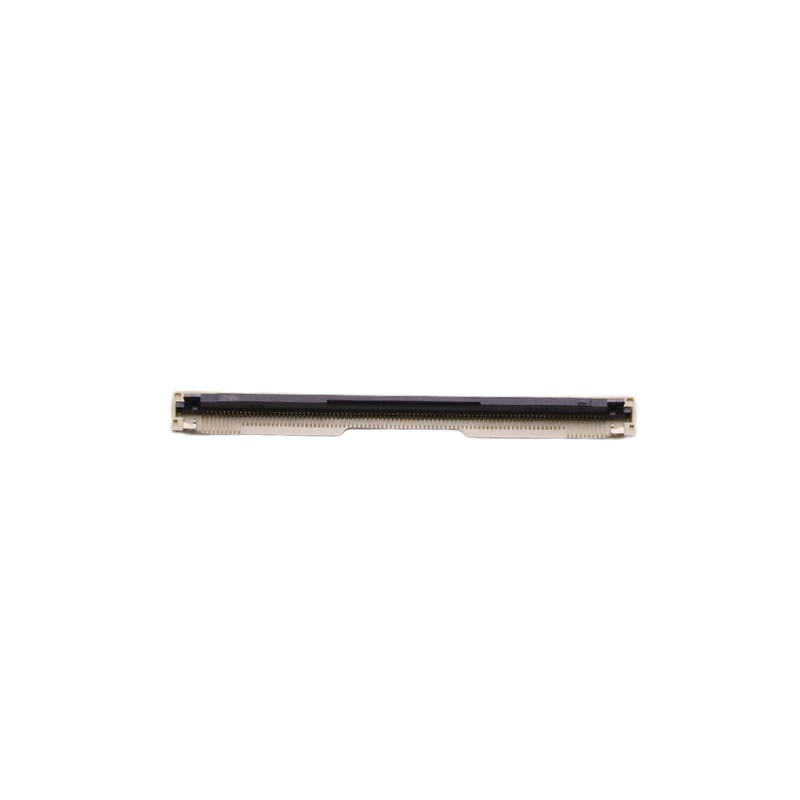

F0507 Series 0.5mm Pitch 96Pin FFC Connector(Front Flip Type) (4/4)

Pitch: 0.50mm
Circuits: 96pin

The F0507 series is a high-performance FFC connector with a highly heat-resistant plastic housing that meets UL94V-0 standards to ensure safety and reliability. Its contacts and pins are made of copper alloy with gold and nickel plated surfaces to provide excellent conductivity and corrosion resistance.

Request sample Engineering Drawing Package Specification

Product photos

Specifications

Key specifications
Pitch	0.50mm
Circuits	96pin
Height	2.20mm
Application	TV,Panel,etc.

General specification
Material	HEIGHT THERMOPLASTIC/UL94V-0/Copper Alloy
Withstanding Voltage	250V AC/ minute
Temperature Range	-40℃～+105℃
Contact Resistance	20mΩ/max
Insulation Resistance	500MΩ/ min
Product Plating	Au 3μ” Min OVER Ni 50μ”Min

Description

With 96 pins and a pitch of 0.5mm, the connector is suitable for signal and power connections for TVs, panels, and other devices. Its compact design and easy installation make it a preferred connection solution in the consumer electronics field.

Due to their relatively small size and light weight, FFC connectors are ideal for use in electronic devices where space is limited, such as thin devices and portable electronics. This design not only saves space, but also makes the overall device lighter and more portable.

FFC connectors are relatively easy to install and replace. Users simply insert the FFC connector into the appropriate slot and secure it with a locking device to complete the connection of electrical equipment. This design reduces the difficulty of installation and maintenance and improves work efficiency.

The contact part of the FFC connector is made of copper alloy material with gold-plated and nickel-plated treatment, providing excellent electrical conductivity and corrosion resistance. At the same time, its compact design and low resistance characteristics ensure a stable and efficient electrical connection.

FFC connectors have good electromagnetic shielding performance, which can effectively reduce the impact of electromagnetic interference on signal transmission and ensure the accuracy and reliability of signal transmission.

FFC connector is widely used in the electronics industry due to its unique advantages. It can not only be used for signal and power connection of TVs, panels and other equipment, but also can be applied to a variety of electronic products such as copiers, scanners, plotters, fax machines, stereos, etc., providing flexible and reliable electrical connection solutions for various equipment.
