F0505 Series 0.5mm Pitch 30Pin/51Pin FFC Connector(Front Flip Type)
F0505 — Pitch 0.50mm · Circuits 30/
- Series: F0505
- Pitch: 0.50mm
- FFC/FPC Connector
- Pitch
- 0.50mm
- Circuits
- 30/51pin
FFC connector, SMT Wafer single row.

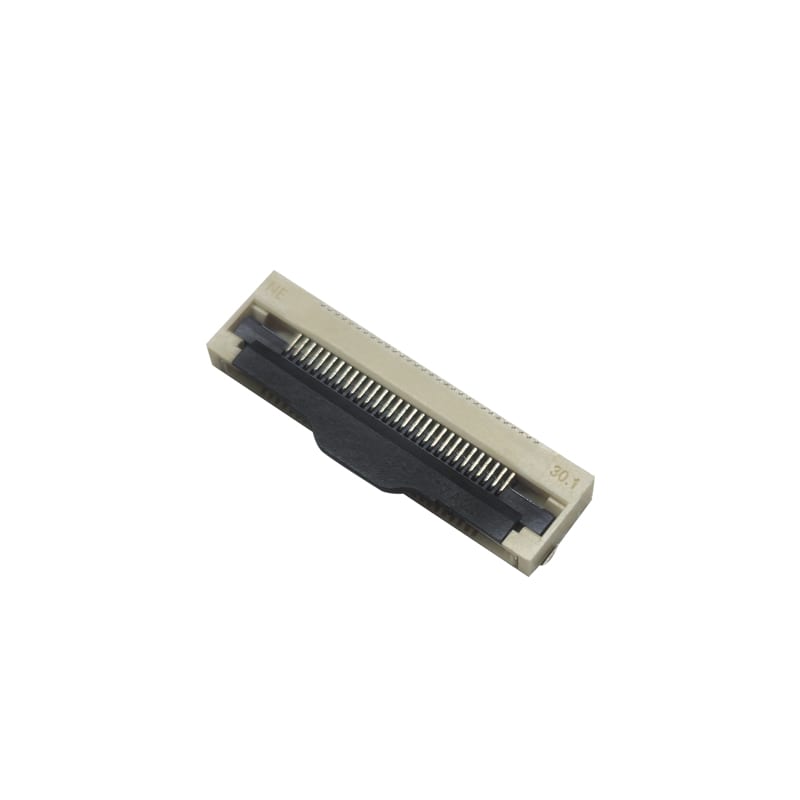

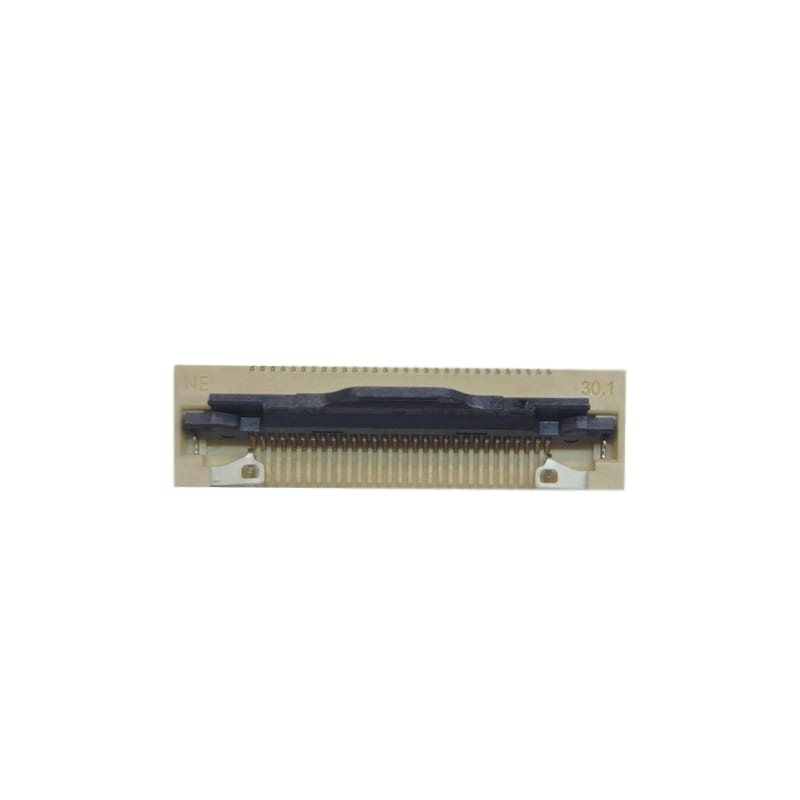

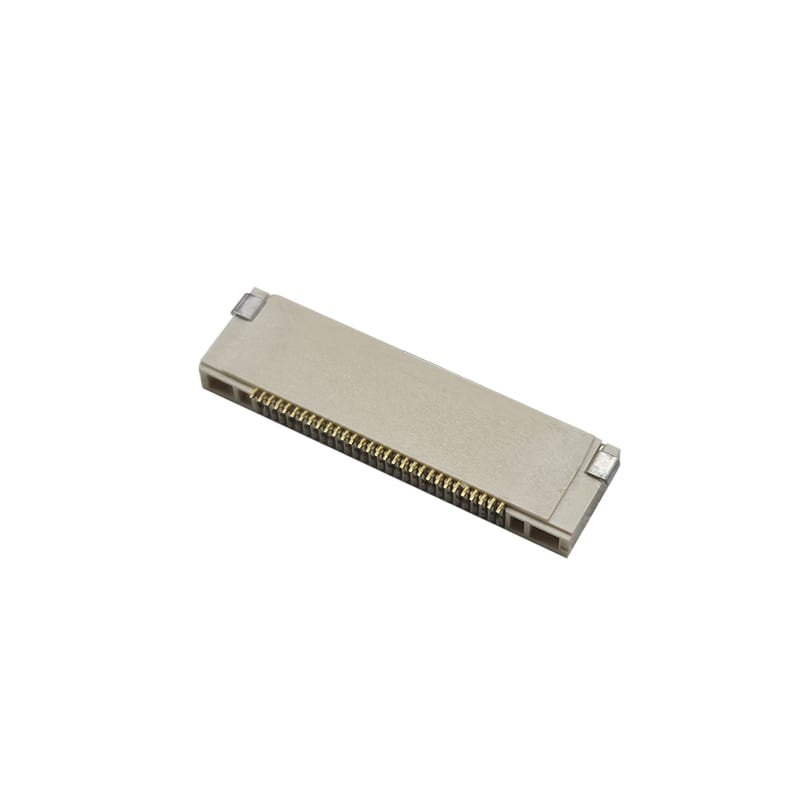

Product photos
Specifications
| Pitch | 0.50mm |
|---|---|
| Circuits | 30/ |
| Height | 2.20mm |
| Application | TV,Panel,etc. |
| Material | HEIGHT THERMOPLASTIC/ |
|---|---|
| Withstanding Voltage | 250V AC/ |
| Temperature Range | -40℃～+105℃ |
| Contact Resistance | 20mΩ/ |
| Insulation Resistance | 500MΩ/ |
| Product Plating | Au 3μ” Min OVER Ni 50μ” Min |
Description
The F0505 series NEG1S1 30.2 51.3 CONN. is a high-performance FFC connector with a front flip design for TVs, panels and other electronic devices. Its shell and driver are made of thermoplastic material with flame retardant rating UL94V-0, and the colours are natural and black respectively. The contacts and pins are made of high quality copper alloy with gold or nickel-tin plating to enhance conductivity and corrosion resistance. The connectors are available in 30pin or 51pin circuit options for high reliability and stability to meet the connectivity needs of precision electronic devices.
Two circuit options, 30pin and 51pin, are available to meet the pin count requirements of different electronic devices, increasing the versatility and flexibility of the product.
The unique front flip type design makes the connector easier and faster to install and remove, and also improves the stability and security of the connection.
With a height of 2.2mm, the connector has a small size and compact structure, making it suitable for use in electronic equipment where space is limited, and helping to realise the miniaturisation and lightweighting of equipment.
Due to its high performance and flexibility, the connector is widely used in TVs, panels and other electronic devices, providing a reliable connection solution for the stable operation of these devices.
The connector may have good compatibility and can be used with many types of FFC connectors to meet the connection needs in different scenarios.
Features
- Flexible circuit options
- Front flip type design
- Compact size
- Wide range of applications
- Good compatibility
