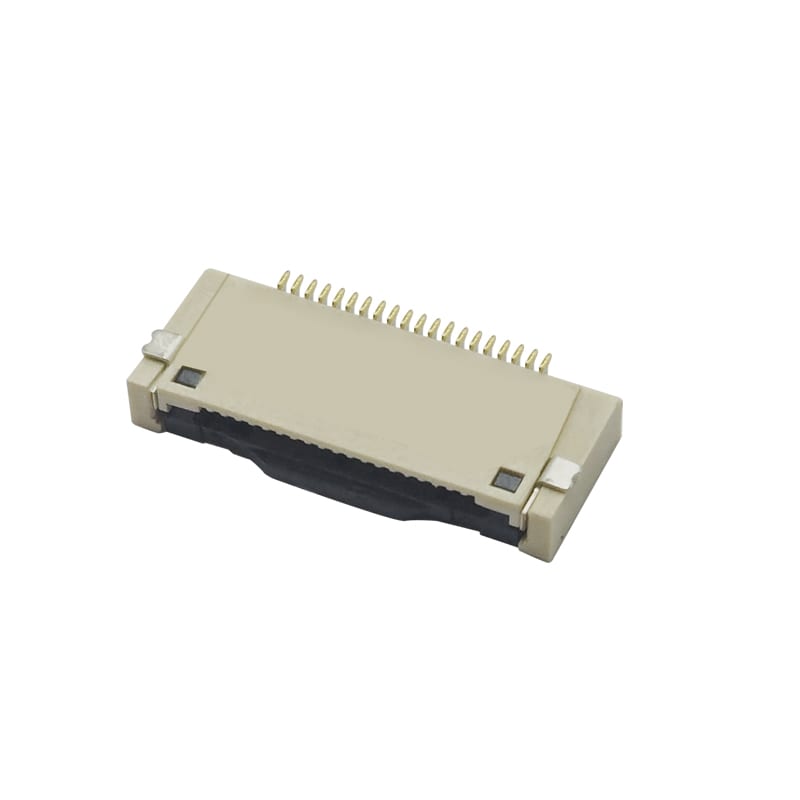

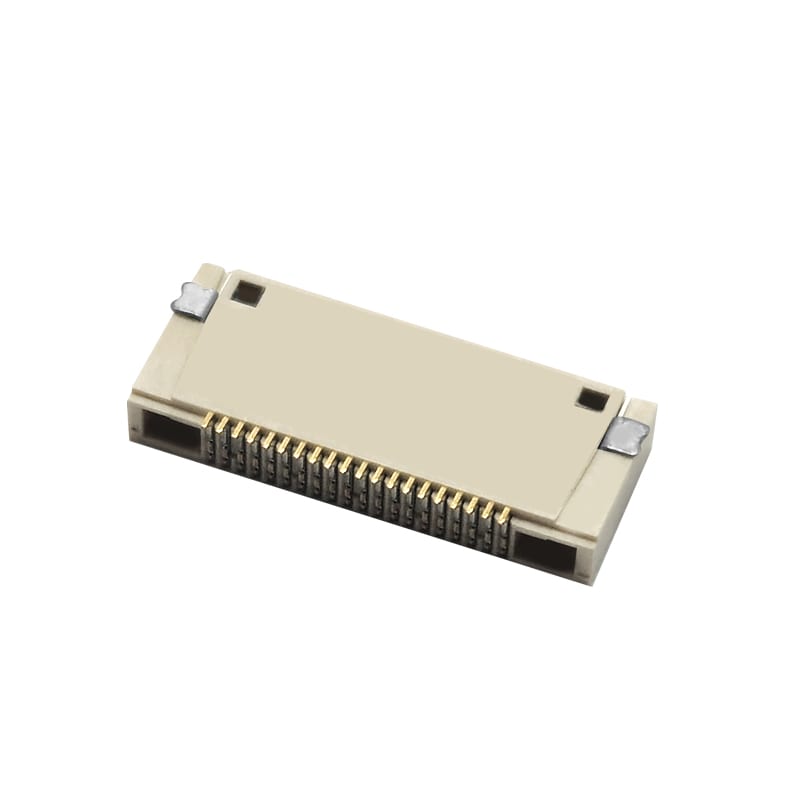

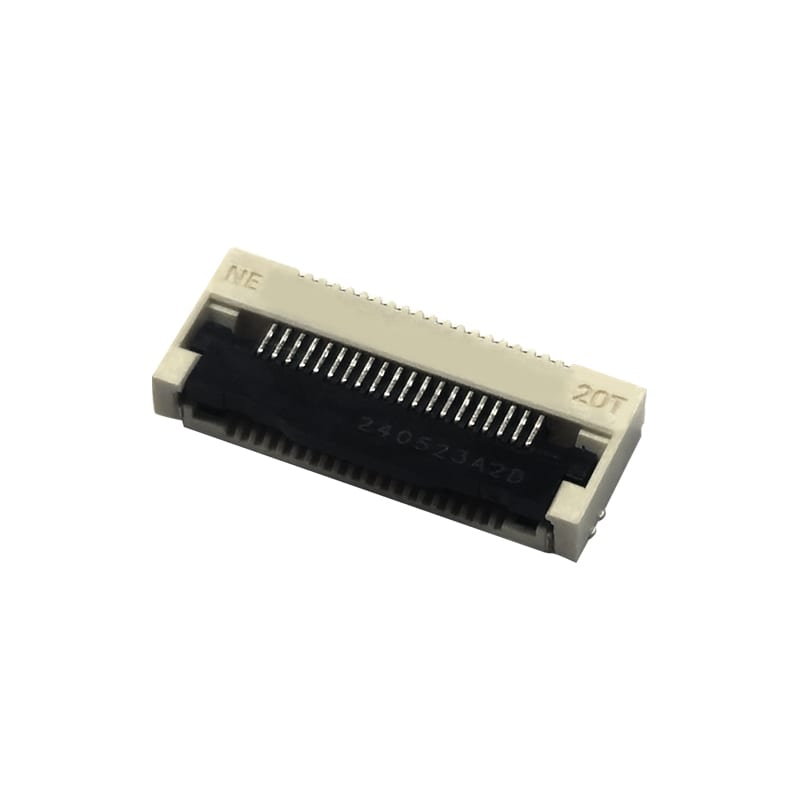

F0504 Series 0.5mm Pitch 20Pin FPC Connector(Front Flip Type)

Description

The F0504 series NEG1S1 20T FFC connectors are made of highly heat-resistant UL94V-0 rated thermoplastic material with natural coloured housing and black actuator. The contacts and pins are made of copper alloy with gold-nickel alloy (Au 3μ” Min OVER Ni 50μ” Min in the contact area) and pure tin (Sn 100μ” Min OVER Ni 50μ” Min on the pins) surface plating to ensure good conductivity and corrosion resistance.

Designed for 0.5mm pitch, 2.2mm height, supports 20-pin circuits, suitable for TVs, panels and other electronic devices. Front flip type structure for easy installation and removal, improving connection stability and efficiency.

Made of UL94V-0 rated thermoplastic material, which has good heat resistance and can maintain stable physical and chemical properties at higher temperatures, ensuring the reliability and durability of the connector in high temperature environments.

The contacts and pins are made of copper alloy with nickel gold plating. This combination of materials not only has excellent electrical conductivity, but also has good corrosion and wear resistance, which ensures that the connector maintains a stable electrical connection during long-term use.

Adopting the front flip type structure, this design makes the installation and removal of the connector become more convenient and quick. Users can lock and unlock the connector through simple operation, which improves work efficiency and user experience.

Due to its standardised design and manufacturing, the NEG1S1 20T FFC connector is compatible with a wide range of electronic devices and circuit systems, and is widely used in TVs, panels and other electronic devices. This wide compatibility provides users with more choices and flexibility.

The overall design focuses on stability and reliability, ensuring that the connector can maintain a stable electrical connection and signal transmission quality over a long period of time. This is important for improving the overall performance and extending the service life of electronic equipment.
