KR1012 Series 1.00mm Pitch SMT Type WK Wire to Board Connector
KR1012 — Pitch 1.0mm · Circuits 7 Pin · Current 1A · Voltage 100V
- Series: KR1012
- Pitch: 1.0mm
- New Product
- Wire-to-Board Connector
- Pitch
- 1.0mm
- Circuits
- 7 Pin
- Current
- 1A
- Voltage
- 100V
Wire-to-Board Header, 1.00mm Pitch, Single Row, SMT Type, Right-Angle, 7 Circuits, Tin Plating, Natural.

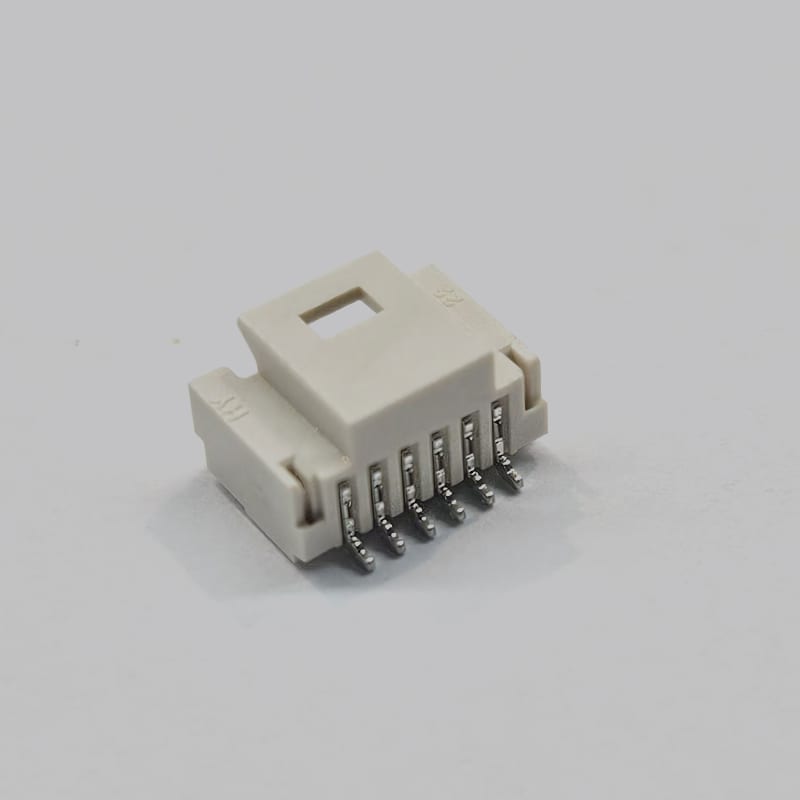

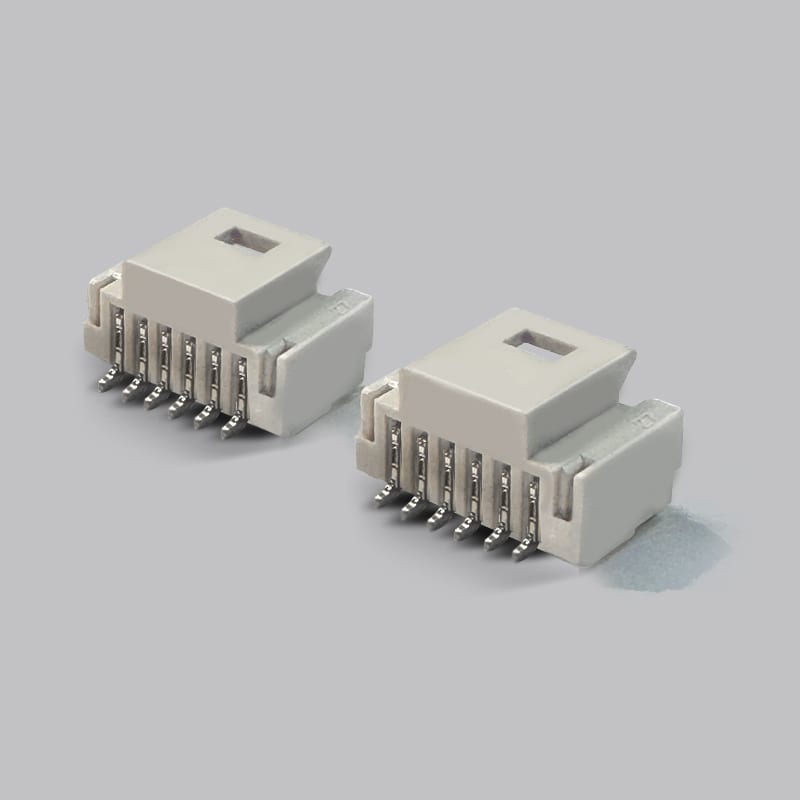

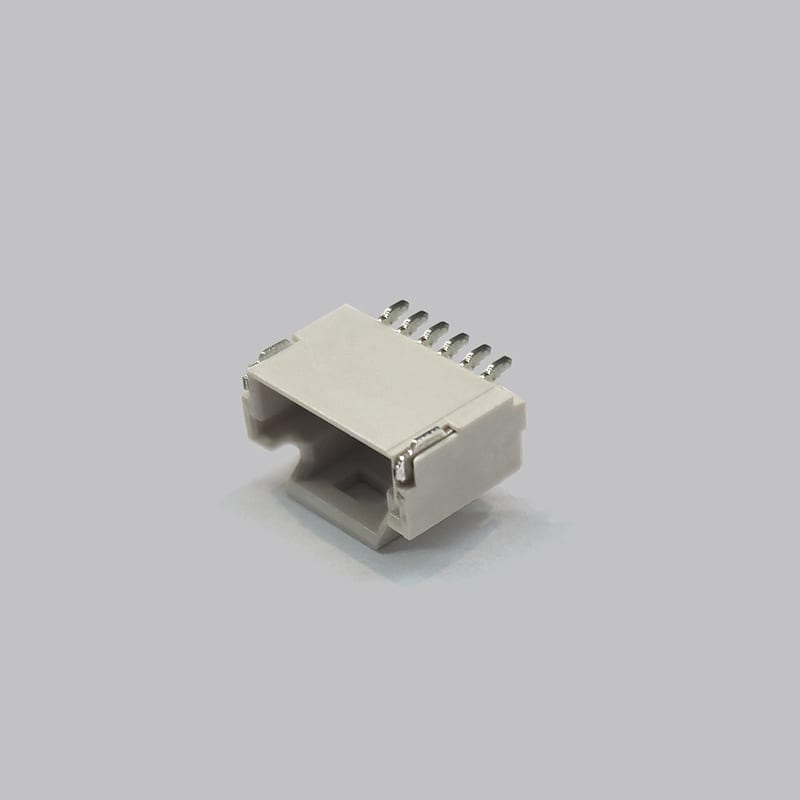

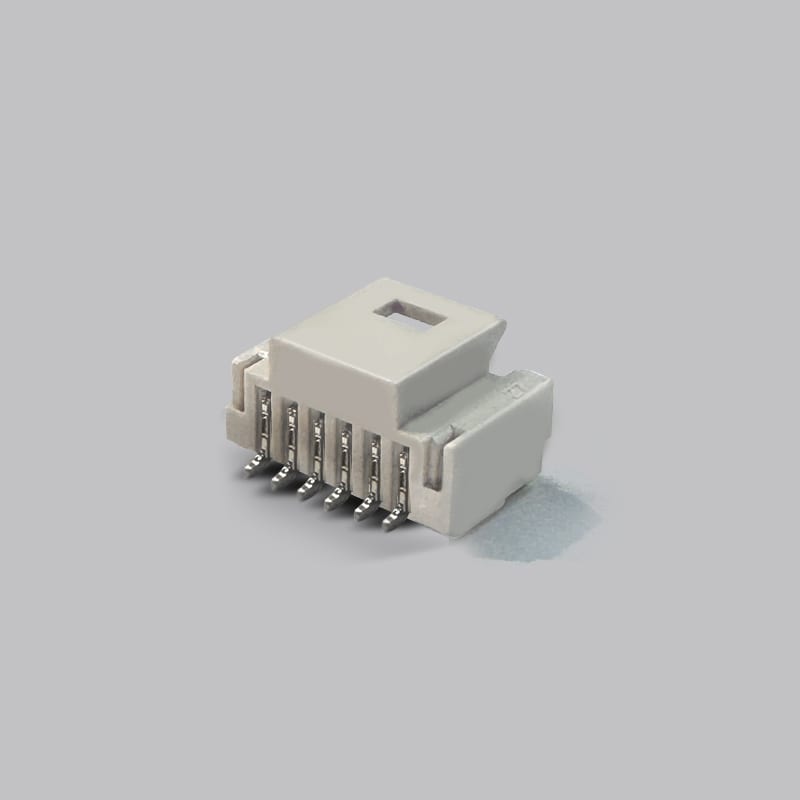

Product photos
Specifications
| Pitch | 1.0mm |
|---|---|
| Circuits | 7 Pin |
| Current | 1A |
| Voltage | 100V |
| Component Type | PCB Receptacle |
|---|---|
| Material | PA9T UL 94V-0 / |
| Withstanding Voltage | 500V AC/ |
| Temperature Range | -40℃～+125℃ |
| Contact Resistance | 20m Ω/ |
| Insulation Resistance | 100M Ω/ |
| Product Plating | Tin Plated over Nickel |
Description
The KR1012 Series 1.00mm Pitch SMT Type WK Wire to Board Connector is a high performance connector for 1A AC/DC current and 100V AC/DC voltage environments. The wide operating temperature range from -40°C to +125°C ensures stable operation under extreme conditions. Highly insulating PA9T UL 94V-0 insulators and nickel-tinned copper alloy contacts and pins provide excellent electrical performance and durability.
Supporting up to 1A current and 100V voltage, it meets the connection requirements of various electronic devices and ensures stable and efficient signal transmission.
It can work normally in a wide temperature range from -40°C to +125°C, adapting to various extreme temperature environments and improving the reliability and durability of the equipment.
The insulator made of PA9T UL 94V-0 material has good insulation performance and flame retardant, which guarantees the safety of the circuit and reduces the risk of fire.
The contacts and pins are made of nickel-plated and then tin-plated copper alloy material, which has good conductivity and corrosion resistance, ensuring the stability of the electrical connection and the reliability of long-term use.
Right-angle design and a compact pitch of 1.00mm, making the connector in a limited space can also be easily installed, suitable for high-density circuit board layout.
Supports SMT mounting, which simplifies the production process, improves productivity, and also helps to reduce errors and damage during assembly.
Features
- High performance
- Wide temperature operating range
- High insulation
- Excellent conductivity
- Compact design
- Easy to install
